Integrated RF Test Rack Developed by R. A. Wood Associates

R. A. Wood Associates designed, built, and tested multiple Integrated RF Test Racks for one of our customers. The Racks consisted of GPIB controlled test equipment and other equipment as listed below:

• 1 RF Signal Generator for RF signal generation
• 1 RF Signal Generator for LO signal generation
• 1 Spectrum Analyzer for signal amplitude and frequency measurement
• 3 Power Supplies for supplying DC power and monitoring DC current to the RF Modules under test
• 1 Multimeter for monitoring voltages and resistances
• 1 R. A. Wood Associates Integrated RF Test Station
• 1 Rack Mount PC
• 1 Rack Mount UPS
• 1 Flat Panel Display

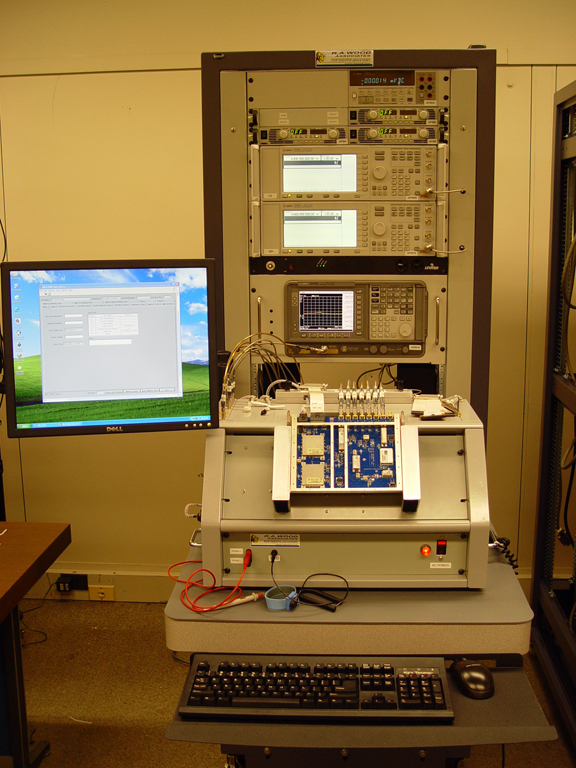

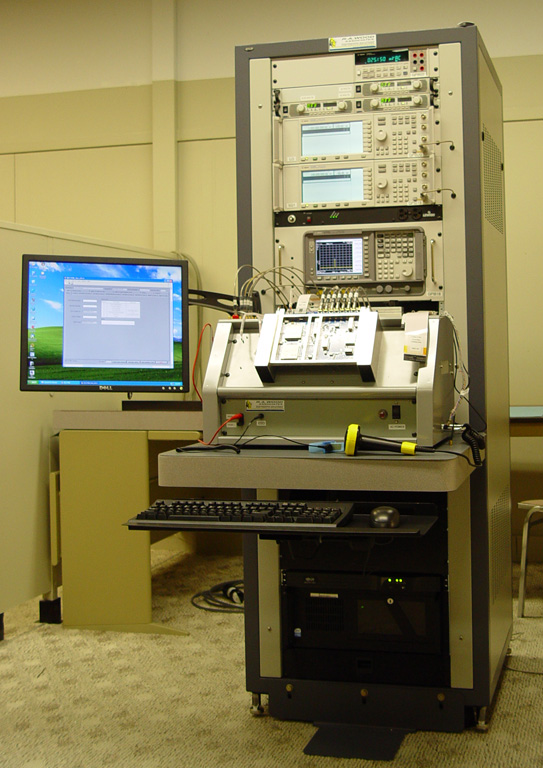

Another picture of the Integrated RF Test Rack. Additional information will be provided soon.

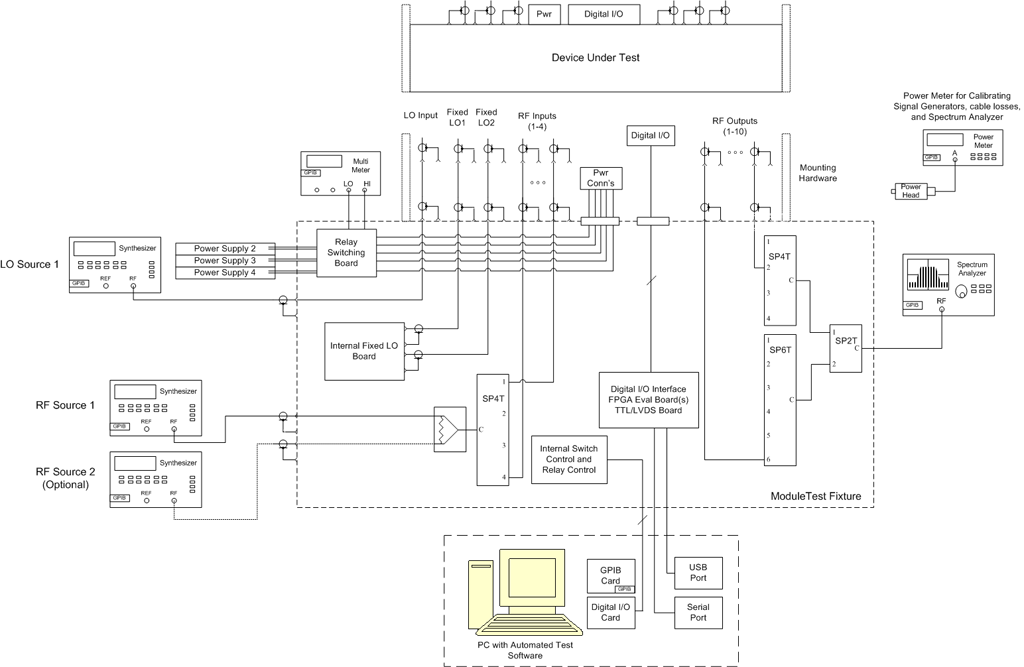

A diagram of the Integrated RF Test Rack is shown below:
