Friday, August 19, 2016

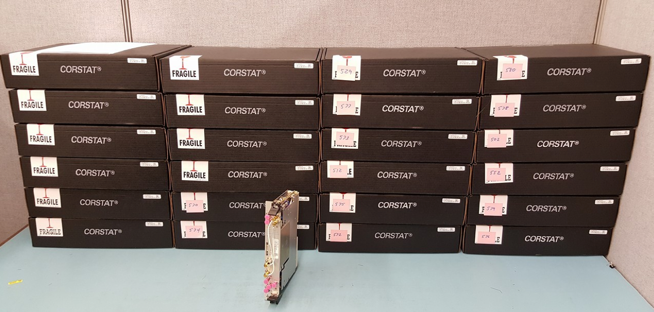

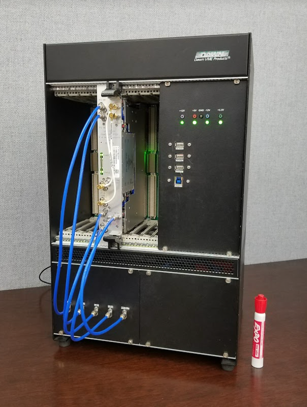

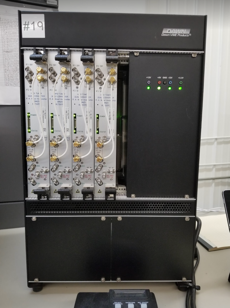

24 more Microwave Tuners ready to ship!

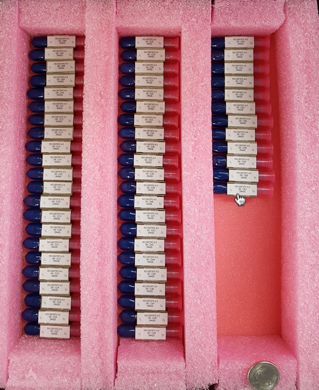

New Equalizer designs now available!

We keep working on new designs for our customers, and improving on our earlier designs. We now have over 231 equalizer designs available, more than any other manufacturer. Various slopes over frequency ranges from DC to 28 GHz are available. You can go to our Equalizer WWW page to see what we have. Actual plots are shown for each design. If you don't see what you need, let us know, and we'll see if we can help you out.
Posted by Bob Wood at 4:32 PM
Edited on: Friday, August 19, 2016 6:47 PM
Categories: 10 QuickNews, 20 Hardware Products-Current

Saturday, February 27, 2016

New Capability to provide tight tolerance surface mount capacitors

Hi Everybody

We've recently developed the capability to automatically measure surface mount capacitors and bin them into very tight tolerance windows. We can work with 0603, 0402, and 0201 size capacitors. We can provide down to 2-2.5% tolerance capacitors for values down to 0.1 pF. These parts are typically only available in very wide tolerances (up to 50%).

This capability is very useful for filter designs, and other microwave circuit designs.

These tight tolerance capacitors can reduce or eliminate tuning typically needed to meet performance requirements.

We are going to start providing these parts to customers on a trial basis. If you are interested, please contact us to see how we can help you out!
Posted by Bob Wood at 1:24 AM
Edited on: Monday, February 29, 2016 3:27 PM
Categories: 10 QuickNews, 20 Hardware Products-Current, 40 Engineering Consulting Services-Current

Tuesday, November 03, 2015

8X8 Switch Matrix / Up Converter Delivered

We delivered a new design to one of our customers: An 8X8 Microwave Switch Matrix /Up Converter. The unit allows 8 RF/microwave inputs to be routed to any of 8 RF/microwave output ports. The design includes:
  • Custom designed 8-way power dividers (covering a 4:1 bandwidth)
  • A low band Up Converter
  • An AC/DC power supply
  • High Speed LVDS interface
  • High Dynamic Range RF amplifiers on inputs and outputs
  • Custom designed equalizers for slope correction, and
  • FPGA board for control and status (Built in Test) monitoring
The entire assembly is housed in a 2U rack mount assembly, saving precious rack space. The full frequency coverage is 0.5 to 18 GHz.
Posted by Bob Wood at 12:11 AM
Edited on: Saturday, February 27, 2016 1:09 AM
Categories: 10 QuickNews, 20 Hardware Products-Current, 40 Engineering Consulting Services-Current

Monday, August 24, 2015

R. A. Wood Associates receives a new production order for 168 wideband Microwave Tuners

We've received another production order for wideband Microwave Tuners. We will be delivering these at a rate of 17/month.

Posted by Bob Wood at 2:27 AM
Edited on: Saturday, September 19, 2015 2:46 AM
Categories: 10 QuickNews, 15 Microwave Tuners, 20 Hardware Products-Current

Wednesday, April 15, 2015

R. A. Wood Associates receives contract to build 8X8 microwave switch matrices

We received an order to design and build QTY 3 8X8 microwave switch matrices. The unit allows 8 RF/microwave inputs to be routed to any of 8 RF/microwave output ports. In another viewpoint, each of 8 RF/microwave output ports can select any of 8 RF/microwave input ports for down stream processing. The design includes:

  • custom designed 8-way power dividers (covering a 4:1 bandwidth),
  • a low band Up Converter,
  • an AC/DC power supply,
  • LVDS interface,
  • RF amplifiers on inputs and outputs,
  • custom design equalizers for slope correction,
  • FPGA board for control and status (Built in Test) monitoring

The entire assembly is housed in a 2U rack mount assembly, saving precious rack space. The full frequency coverage is 0.5 to 18 GHz. The first unit will be delivered in September 2015.

Saturday, November 01, 2014

R. A. Wood Associates receives production order for 144 wideband Microwave Tuners

Another endorsement of our quality, great design, and determination to maintain low cost for our customer.

Friday, June 27, 2014

More Microwave Tuners rolling off the Production Line!

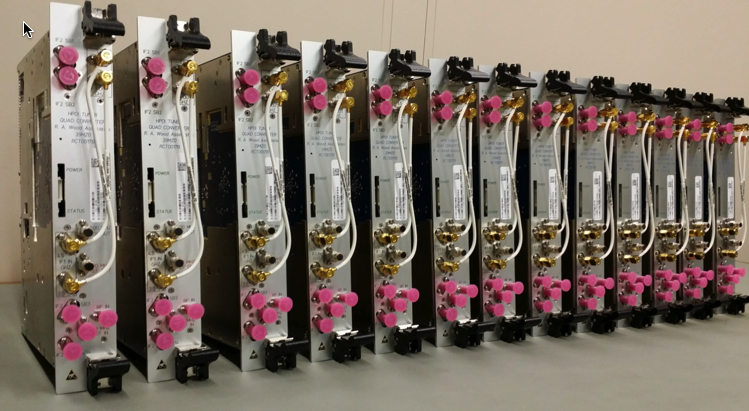

Another 13 of our state of the art high dynamic range Microwave Tuners (with integrated synthesizers) are getting ready to be shipped (on time) to one of our customers. The shipment includes our 100th production Tuner, a very exciting milestone!

For more information, download the RCT0017 product sheet

Posted by Bob Wood at 6:38 PM
Edited on: Thursday, September 11, 2014 8:04 PM
Categories: 10 QuickNews, 15 Microwave Tuners, 20 Hardware Products-Current

Tuesday, June 17, 2014

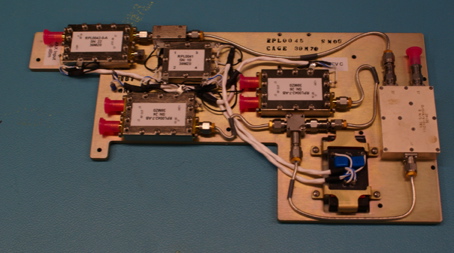

RPL0045 Low Band Modules: More orders in process!

LB Modules, Serial No's 32-43, built using our Extreme BW RF Amplifier designs, are on order and being built for our customer. These modules are being deployed in a subsystem on board U.S. Navy submarines.
Posted by Bob Wood at 3:15 PM
Edited on: Friday, July 25, 2014 3:19 PM
Categories: 10 QuickNews, 20 Hardware Products-Current

Wednesday, May 14, 2014

Some Feedback from One of our Equalizer Customers:

"Our experience with R. A. Wood Associates was beyond our expectations. The willingness to deliver a product in such a short time period was very refreshing. The product worked exactly as described and met our needs. We will very likely buy again."

We are always pleased to hear good feedback about our products and services!

Sunday, October 06, 2013

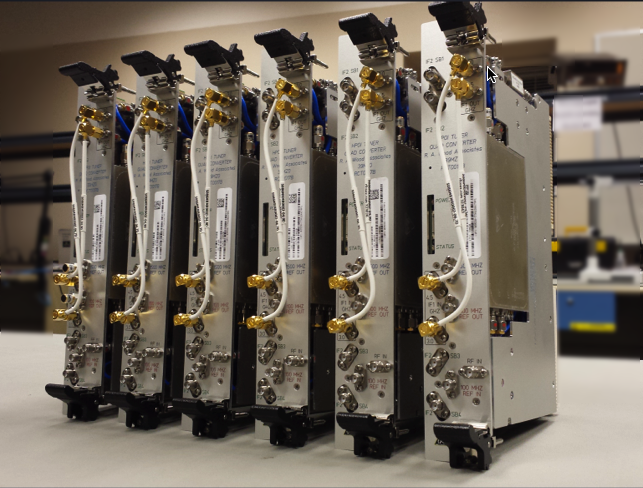

Production Orders for High Dynamic Range Wideband Tuner/Quad Converters

We are currently under contract to build 109 high dynamic range Wideband Tuners/Quad Converters over the next year. These devices feature:
  • The highest dynamic range microwave tuners in the industry
  • Maximum use of surface mount RF/Microwave assemblies for frequencies up to 18 GHz
  • 4 output IF bands to provide 1.5 GHz instantaneous bandwidth
We are bringing all our computer automated test software and hardware design expertise into this program to maximize our productivity and provide the lowest cost product to our customer.

This is the improved RCT0017B Wideband Tuner/Quad Converter, which is the result of 18 months of development improvements from our original RCT0017 model.

Thursday, June 13, 2013

Automated RF/Microwave Test Station

A 2nd general purpose automated RF/Microwave Test Station was designed and built by R. A. Wood Associates. The purpose was to provide automated test and device characterization to:
  • 10 MHz - 18 GHz test range as built with capability to expand up to 20 GHz
  • Reduce manual test time
  • Eliminate errors in recording of results
  • Increase throughput
  • Eliminate manual RF connections and DC connections in mid-test
  • Provide automated test reports
  • Save test results electronically in a database structure
The Automated RF/Microwave Test Station includes:
  • DAQ/Switch Unit
  • Three programmable power supplies
  • Signal Generator
  • Spectrum Analyzer
  • Table/Work Surface
  • Rack Mount Computer
  • Monitor
  • LabVIEW Software utilities to support setting up the Spectrum Analyzer and Signal Generator, retrieving data from the Spectrum Analyzer, controlling the RF Switch/DIO Box and other measurement equipment in the Test Station
  • Storage drawer
  • Custom RF Switch/DIO Box provides:
    • Automated RF Switching to 1 of 6 RF Inputs and 1 of 6 RF Outputs up to 18 GHz
    • Oscillators needed for Test Units
    • Digital I/O to control and read digital signals to/from Test Units
    • Relay Switching to read Resistances and switch DC Power to Test Units

Posted by Bob Wood at 12:49 AM
Edited on: Monday, October 07, 2013 7:49 PM
Categories: 10 QuickNews, 20 Hardware Products-Current, 30 LabVIEW Projects-Current

Monday, May 06, 2013

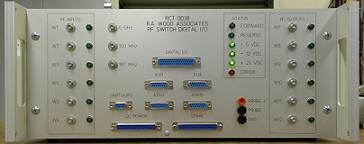

New Bench Top RF Switch Digital I/O Test Interface Box

The RF Switch/DIO Box is a custom designed LRU that provides:
  • Automated RF Switching to 1 of 6 RF Inputs and 1 of 6 RF Outputs up to 18 GHz
  • Oscillators needed for Test Units
  • Digital I/O to control and read digital signals to/from Test Units
  • Relay Switching to read Resistances and switch DC Power to Test Units
  • Bench top or Rack mount
We have built 5 of these for our own automated test stations. The design is universal and can be used for multiple test applications.
Posted by Bob Wood at 12:29 PM
Edited on: Monday, October 07, 2013 7:20 PM
Categories: 10 QuickNews, 20 Hardware Products-Current, 40 Engineering Consulting Services-Current

Tuesday, April 30, 2013

RPL0103 Low Freq Wide Band RF SubAssembly Designed and 17 Delivered

RPL0103 Low Frequency Wide Band RF SubAssembly features:
  • Wide Freq bandwidths ~DC-3GHz
  • Uses New R.A.Wood Associates designed amplifiers with new 50% smaller M06 amplifier packages
  • Used as part of a Subsystem, deployed on Navy vessels
  • 14 built and delivered on time
  • Provides 9 output ports for downstream equipment
Posted by Bob Wood at 2:55 PM
Edited on: Friday, July 25, 2014 3:21 PM
Categories: 10 QuickNews, 20 Hardware Products-Current

Tuesday, March 05, 2013

R. A. Wood Associates is approved for ISO 9001:2008 Quality Management System (2nd Party) and ESD Control!

Great News! R. A. Wood Associates has received approval by Lockheed Martin for ISO 9001:2008 Quality Management System (2nd Party survey), and Electrostatic Discharge Control (ESD). This puts us in a better position to deliver the highest quality products to our customers. Thanks to everyone involved who helped to make this become a reality! Bob Wood



Monday, June 04, 2012

Available Now! SimpleCycle Crystal Oscillators

We have officially released a new line of SimpleCycle crystal oscillators. These are temperature compenstated crystal osciillators in a very small package with +5 Volt DC in, and an SMA output connector. The key features include:

  • Small package size: 1.06" X 0.92" X 0.37"
  • 4 through-holes for mounting
  • Easy connections: +5V DC in, SMA out
  • Custom frequencies available from 40 MHz to 1.4 GHz
  • Frequency accuracy at +25C: < +/-1 ppm
  • Internally temperature compensated: < +/-1 ppm from -20C to +70C
  • Aging: < +/-3 ppm first year, < +/-1 ppm/year thereafter
  • Sine wave outputs (initially)

We will be working to supply these with very quick turnarounds. For more information see our SimpleCycle Oscillator page, or contact us.

Posted by Bob Wood at 7:35 PM
Edited on: Monday, October 07, 2013 7:22 PM
Categories: 10 QuickNews, 20 Hardware Products-Current, 40 Engineering Consulting Services-Current

Friday, March 30, 2012

New Quad/WB Up Converter and WB/Quad Down Converter Designs Developed and Delivered

Our Wideband Down Converter and Up Converter pair offer:

  • Frequency Coverage: 6 - 18 GHz
  • For applications employing Digital RF Memories (DRFM's) for coherent electronic countermeasures
  • Coherent system synchronized to a 100 MHz reference
  • Independent synthesizers in Down and Up Converters
  • Can be configured as independent Down and Up Converters, or as a coherent set for countermeasures or similar applications
  • Control and Status: VME A24 D32

Down Converter Features:

  • Single Unit Form Factor: 6U 2 Slot Design
  • Input Dynamic Range: -60 to +2 dBm
  • Input 1 dB Compression Point: >+6 dB
  • Noise Figure: 21 dB
  • Gain: 10 dB average
  • Phase Noise: -146 dBc/Hz @ >20 MHz Offset
  • Second IF's: Four outputs at 750 MHz, 375 MHz wide, providing 1.5 GHz instantaneous bandwidth
  • Designed to drive 1 GHz Digitizers linearly up to +12 dB

Up Converter Features:

  • Four inputs at 750 MHz, 375 MHz wide, providing 1.5 GHz instantaneous bandwidth across 6 - 18 GHz
  • Form Factor: VME 6U 2 Slot Design
  • High Input Dynamic Range: -55 to 0 dBm
  • Phase Noise: -146 dBc/Hz @ >20 MHz offset
  • Tuning Speed: 1 uSec
  • Noise Figure: 31.5 dB max
  • Input 1 dB Compression Point: >+2 dBm
  • Gain: 1 dB average


Monday, January 30, 2012

High Dynamic Range Microwave Tuner Designed and in Production

We haven't posted in a while. It's because we've been crazy busy. Our newest product, the RCT0017 WB Tuner and Quad Converter, has been under development over the past 2 years, and is now available. We've designed this from the ground up to meet state of the art high input compression point, low phase noise, fast tuning speed, wide dynamic range, and wide instantaneous bandwidth requirements. A quick overview of the specifications:

  • Frequency Coverage: 2-18 GHz
  • First IF’s: 2.2-3.8 GHz, 3.8-5.3 GHz, available simultaneously
  • Second IF’s: 4 outputs at 750 MHz, 375 MHz wide, providing 1.5 GHz instantaneous bandwidth across the First IF’s
  • Input 1 dB Compression Point: >+6 dBm
  • Noise Figure: 21 dB
  • Input Dynamic Range: -60 to +2 dBm
  • Gain: 10 dB average
  • Tuning Speed: <1 uSec
  • Frequency Step Size: 375 MHz
  • Phase Noise: -150 dBc/Hz @ 10-20 MHz Offset
  • Form Factor: VME 6U 2 Slot Design
  • Control and Status: VME A24 D32
  • Designed to follow an Low Noise Front End with Approximately 30 dB ENR
  • Designed to drive 1 GHz Digitizers linearly up to +12 dBm

A brief data sheet can be downloaded from this link

Wednesday, January 18, 2012

New Quad Converter Designed and Delivered

We designed and built for production a 4 channel Quad Converter. Our Quad Converter design features:
  • 2 Input IF's from 2.2-5.3 GHz, available simultaneously
  • Output IF's: 4 outputs at 750 MHz, 375 MHz wide, providing 1.5 GHz instantaneous bandwidth across the input IF's
  • Control and Status: VME Interface A24 D32 and UART Serial Interface
  • Designed to drive 4 1 GHz Digitizers linearly up to +12dBm
  • 5 custom surface mount RF assemblies mounted to an aluminum plate
  • Separate multilayer circuit board accommodates power conditioning, FPGA signals and VME interfacing
  • Form Factor: VME 6U 1 Slot Design
  • RF Connector Interface: SMA
This is a very complex design with very high density surface mount assemblies. Surface mount assemblies are built using pick and place machines at a contract manufacturer. Automated RF test rack, fixtures and software has been designed at R. A. Wood Associates.

Wednesday, December 14, 2011

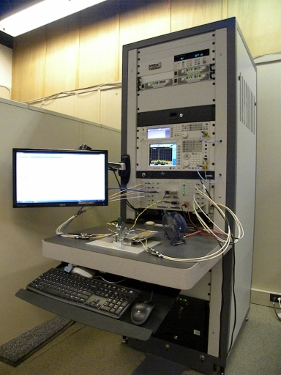

RCT0017 Automated RF/Microwave Test Station Designed, Built, and In Service

An automated RF/Microwave Test Station was designed and built by R. A. Wood Associates. The purpose was to provide automated test and device characterization to:
  • Reduce manual test time
  • Eliminate errors in recording of results
  • Increase throughput
  • Eliminate manual RF connections and DC connections in mid-test
  • Provide automated test reports
  • Save test results electronically in a database structure
This automated test station reduced product test time from 24 hours of semi-automated testing down to approximately 2 hours. The RCT0017 Automated RF/Microwave Test Station includes:
  • DAQ/Switch Unit
  • Three programmable power supplies
  • Signal Generator
  • Spectrum Analyzer
  • Custom RF Switch/DIO Box
  • Table/Work Surface
  • Rack Mount Computer
  • Monitor
  • LabVIEW Software utilities to support setting up the Spectrum Analyzer and Signal Generator, retrieving data from the Spectrum Analyzer, controlling the RF Switch/DIO Box and other measurement equipment in the Test Station
  • Storage drawer


Monday, November 14, 2011

LB RF Receiver Simulator Designed and Delivered

A LB RF Receiver Simulator was designed to simulate the RF front end of a submarine periscope subsystem. The noise figure, gains, and dynamic ranges were designed to simulate the actual subsystem. The amplifiers were custom designed and equalized by R. A. Wood Associates to cover a wide bandwidth from ~DC to 3 GHz. A variable attenuator allowed the output noise floor to be adjusted in 1 dB steps.
Posted by Bob Wood at 7:52 PM
Edited on: Wednesday, October 09, 2013 12:15 PM
Categories: 10 QuickNews, 20 Hardware Products-Current, 40 Engineering Consulting Services-Current

Monday, December 20, 2010

2nd Test Station Delivered to NAVSEA NSWC

We designed and built a 2nd (different) Automated RF Test Station for NAVSEA NSWC, which was delivered to Crane, Indiana. This Test Station contains many state of the art features and equipment, including:
  • Tektronix RSA6120A Real Time Spectrum Analyzer
  • An R. A. Wood Associates custom designed Test Set Load Box, capable of handling 50W loads
  • Rack mount computer, keyboard, and monitor with digital I/O, GPIB interfaces
  • A PXI chassis with fiber optic interface, digital I/O, serial interfaces, temperature monitors, and GPIB interface
  • LabVIEW Software utilities to support setting up the Real Time Spectrum Analyzer, retrieving information from the Real Time Spectrum Analyzer, controlling the Test Set Load Box, and controlling other measurement equipment in the Test Station
The customer wanted this delivered before the holiday, so we rented a delivery truck and spent several days driving it out and setting it up for the customer at their facility. They were very pleased with our commitment to deliver the station on time!



Saturday, May 08, 2010

New Equalizer Designs added to our Product Line

We've released some new equalizer designs in the past few months:
Part Number Start Freq (GHz) Stop Freq (GHz) Full Band Slope
REQ-M02-F0.5-18.0-S10.5 0.5 18.0 10.5
REQ-M02-F0.5-18.0-S9.0 0.5 18.0 9.0
REQ-M02-F0.5-18.0-S17.5 0.5 18.0 17.5
REQ-M02-F1.0-8.0-S3.0 1.0 8.0 3.0
REQ-M02-F1.0-8.0-S2.0 1.0 8.0 2.0
REQ-M02-F8.0-18.0-S3.0 8.0 18.0 3.0
REQ-M02-F0.1-1.0-S38.0 0.1 1.0 38.0
REQ-M02-F0.1-1.0-S15 0.1 1.0 15.0

For more information and test results, visit or "Equalizers on Demand" WWW page. If you don't see a design that fits your needs, please call us and we'll try to develop a design that meets your requirements. Thanks for all your support, equalizer users!

38 dB slope equalizer
Posted by Bob Wood at 11:42 PM
Edited on: Monday, October 07, 2013 9:52 PM
Categories: 20 Hardware Products-Current

Test Station Delivered to NAVSEA NSWC

We delivered a Test Station to NAVSEA Naval Surface Warfare Center (NSWC) in Crane, Indiana. The Test Station contains many state of the art features, including:

  • The latest Agilent Network Analyzer (PNA-X Series)
  • A 10-port Extension for measuring multi-port S-parameters
  • An R. A. Wood Associates custom-designed RF Load Box/Chassis for testing high power RF devices
  • Rack mount computer, keyboard, and monitor with digital I/O, GPIB interfaces
  • A PXI chassis with fiber optic interface, digital I/O, serial interfaces, temperature monitors, and GPIB interfaces
  • LabVIEW Software utilities to support setting up the Network Analyzer, retrieving S-parameters from the Network Analyzer, controlling the RF Load Box, and controlling other measurement equipment in the Test Station

This was a very exciting project, and we really enjoyed working with our customer on this program. The complete project was delivered within 7 months of the order being placed. Great job everybody!


Posted by Bob Wood at 3:48 PM
Edited on: Wednesday, October 09, 2013 12:05 PM
Categories: 10 QuickNews, 20 Hardware Products-Current, 30 LabVIEW Projects-Current, 40 Engineering Consulting Services-Current

Saturday, October 31, 2009

LB Modules SN #10 and 11 Ready for Delivery!

Our 10th and 11th LB RF modules, containing our Extreme BW RF amplifiers, have been built, and tested, ready for delivery to our customer.

These modules will be used in our customer's systems, which will be installed on board Navy vessels.

LB RF Module SN 11
Posted by Bob Wood at 11:24 PM
Edited on: Monday, October 07, 2013 7:30 PM
Categories: 20 Hardware Products-Current

Monday, October 05, 2009

ESSU SN3 Delivered

We've delivered the third Electronics Support Switching Uint (ESSU) for one of our customers (ahead of schedule!). This was another set of hardware slated to to be installed on a Navy Vessel. The ESSU is shown here with the cover removed, looking from the back. All RF components are mounted on both sides of a center RF plate. Shown are RF amplfiers, equalizers, attenuators, RF switches, cabling, FPGA card, and rear connectors (21 RF connectors, 12 video/75 ohm connectors, Audio, Power).

For additional information, please visit our ESSU information page.

ESSU SN3 with Cover off
Posted by Bob Wood at 1:17 AM
Edited on: Monday, October 07, 2013 9:53 PM
Categories: 10 QuickNews, 20 Hardware Products-Current, 40 Engineering Consulting Services-Current

Thursday, August 27, 2009

JBU RF Plate SN3 Delivered

JBU RF Plate SN3
JBU RF Plate SN3 was delivered to our customer (ahead of schedule!). The RF Module was designed to provide wideband gain, equalization, and Built-in-test (BIT) injection between two very long RF cable runs (between an Antenna Assembly and below decks receivers). The gain and equalization was needed to preserve the RF path noise figure and dynamic range performance through the long cable run.
All RF test data (gain, slope, flatness, return loss, input 1 dB compression point, and noise figure) was collected using our in house test equipment and our in house automated RF test software (Painless Extraction, Painless Extraction Noise Figure, and RFSpecTest). Mechanical parts were fabricated externally from our SolidWorks created mechanical drawings, and chem-film treated with Iridite (MIL-C-5541E Class 3) to prevent corrosion.
Posted by Bob Wood at 9:40 PM
Edited on: Monday, October 07, 2013 7:27 PM
Categories: 10 QuickNews, 20 Hardware Products-Current

Friday, August 21, 2009

RF Receiver Simuator SN4 Delivered

RF Receiver Simualtor SN4 We've delivered our fourth RF Receiver Simulator, and our 6th of a family of Receiver Simulator products. The simulators are designed to represent the RF front end (noise figure, gain compression point, and intercept point) of a complex EW system, to allow testing, verification and validation of the EW system back end, without requiring the expensive front end components.

If you have a need for one of these types of products, please contact us.
Posted by Bob Wood at 8:46 PM
Edited on: Monday, October 07, 2013 7:27 PM
Categories: 10 QuickNews, 20 Hardware Products-Current

Wednesday, July 08, 2009

Extreme BW RF Amplifier extended to 3 GHz for Direct Laser Modulation Application

We've extended the frequency range of our extreme BW RF Amplifier from 5 KHz to the upper end of 3 GHz. We customized the input equalizer to create a very flat gain response across the entire band. This amplfier was used for a direct laser modulation application. The measured performance was:
  • Average Gain: 16.31 dB
  • Slope: 0.53 dB
  • P-P Flatness: 0.83 dB
  • Min Gain(Low Freq): 15.30 dB
  • Max Input Return Loss: -13.02 dB
  • Max Output Return Loss: -9.99 dB
  • Average 1 dB Output Comp Point: 20.7 dBm
  • Min 1dB Output Comp Point: 19.97 dBm
  • Noise Figure at Low Freq: ~12.8 dB
  • Noise Figure at High Freq: ~ 5.77 dB

More information is available from our Extreme BW RF Amplifier page. Let us know if you are interested in this product line! Bob Wood.

Posted by Bob Wood at 2:07 PM
Edited on: Monday, October 07, 2013 7:27 PM
Categories: 10 QuickNews, 20 Hardware Products-Current, 40 Engineering Consulting Services-Current

Thursday, May 28, 2009

RF Receiver Simulator Delivered

We've delivered another RF Receiver simulator to one of our customers. This unit simulates the RF front end characterisitcs (noise figure, gain, dynamic range) of an EW system, so the customer can connect it to their back end system and validate full system end to end performance (system sensitivity, etc), without requiring the expensive front end components. Frequency coverage goes from 10 MHz to 40 GHz on this unit.

If you have a need for one of these types of products, please contact us.
Posted by Bob Wood at 2:43 PM
Edited on: Monday, October 07, 2013 7:28 PM
Categories: 10 QuickNews, 20 Hardware Products-Current, 40 Engineering Consulting Services-Current

Sunday, March 01, 2009

Automated RF/Microwave Test Stations designed and delivered

We've been very busy this past year. Over the last 8 months, our super qualified staff have accomplished the following:
  1. Developed automated test software for a complex RF/digital board providing RF receive, transmit, and digital signal processing functions
  2. Modified/retrofitted 12 automated test stations to test this complex RF/digital board
  3. Developed automated test software to test a LRU chassis, including point to point wiring and DC power supply checks
  4. Modified/retrofitted 2 automated test stations to test the LRU chassis
  5. Developed automated test software for a high frequency radar receiver/transmitter board, including a waveguide interface
  6. Modified/retrofitted 1 automated test station to test the high frequency radar receiver/transmitter board
  7. Developed automated test software for an IF frequency radar receiver/transmitter board
  8. Modified/retrofitted 1 automated test station to test the IF frequency radar receiver/transmitter board
Auomated RF Test Station
How can we help your company improve your manufacturing efficiencies with automated test stations and software?

Sunday, November 30, 2008

DF Antenna Assembly, designed and built by R. A. Wood Associates

Another great effort resulting in a great potential product!

R. A. Wood Associates designed and built a Direction Finding (DF) Antenna Assembly for one of our customers. The Assembly was designed, built, tested, and delivered in less than 6 months. The requirement was to develop an antenna assembly that could be used as a front end in front of a pair of COTS (Commercial Off the Shelf) receiver boards. The DF Antenna Assembly provided the capability to supply Direction Finding (DF) for incoming signals or emitters.

The DF Antenna Assembly included:
  • Capability to provide amplitude and phase DF between antenna pairs
  • 360 degree angular coverage
  • Low cost universal design (can be used with many different receivers)
  • Low noise figure RF front end (~3.5-4.0 dB)
  • Calibration injection to calibrate receiver amplitude and phase
  • Wide frequency coverage (500 MHz to 3 GHz)
  • High dynamic range
  • Digital Compass for DF Antenna Assembly pointing information
  • RF switches controlled by an Ethernet interface
More information is available from our DF Antenna Assembly www page
Posted by Bob Wood at 2:01 AM
Edited on: Wednesday, October 09, 2013 11:26 AM
Categories: 10 QuickNews, 20 Hardware Products-Current, 40 Engineering Consulting Services-Current
