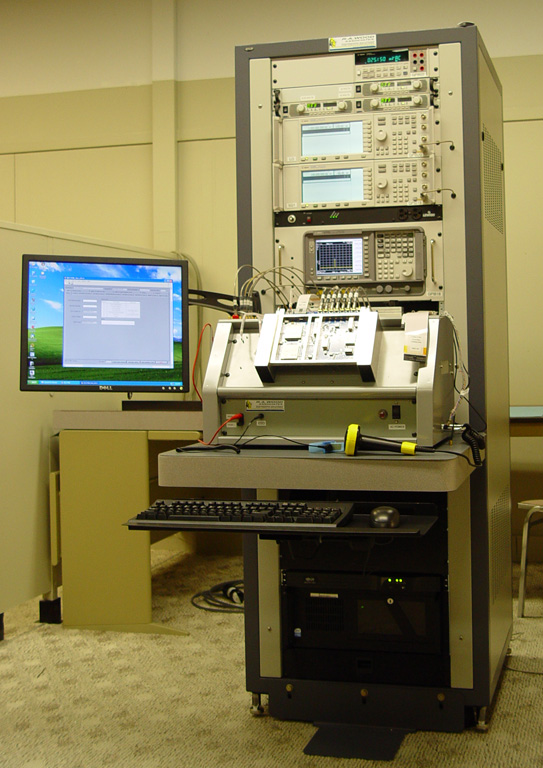

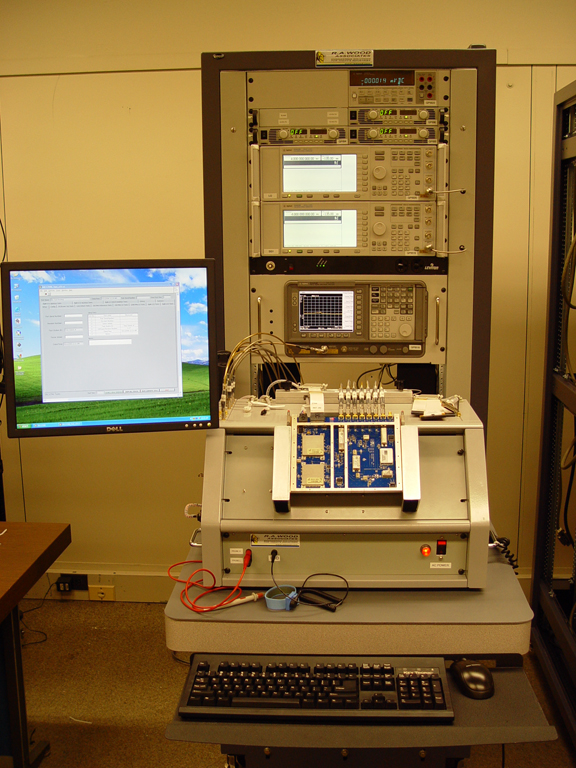

Included Equipment
The racks consisted of GPIB controlled test equipment and other equipment as listed below:
- 1 RF Signal Generator for RF signal generation
- 1 RF Signal Generator for LO signal generation
- 1 Spectrum Analyzer for signal amplitude and frequency measurement
- 3 Power Supplies for supplying DC power and monitoring DC current to the RF Modules under test
- 1 Multimeter for monitoring voltages and resistances
- 1 R. A. Wood Associates Integrated RF Test Station
- 1 Rack Mount PC
- 1 Rack Mount UPS
- 1 Flat Panel Display

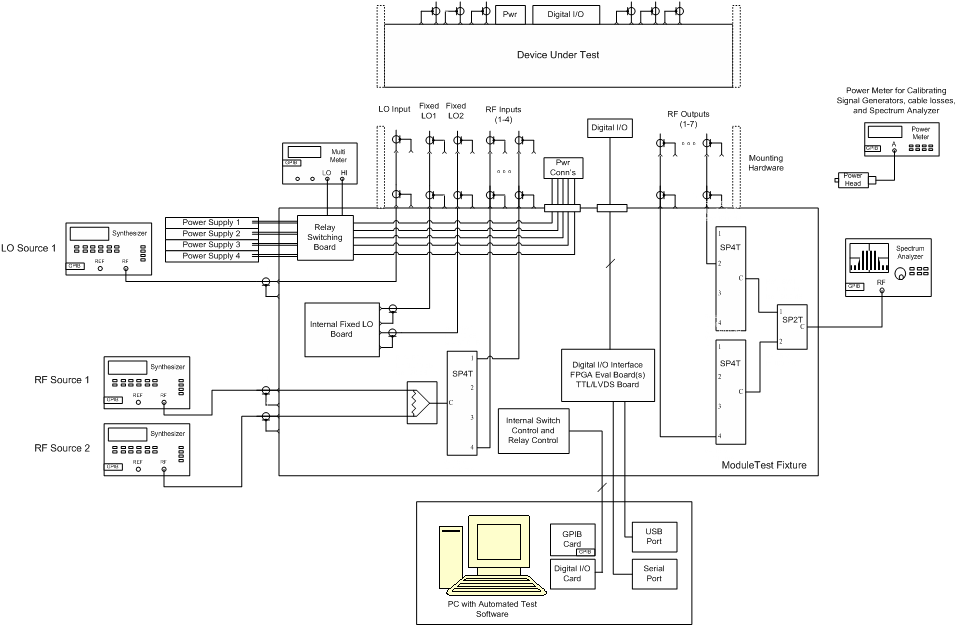

Block Diagram
A block diagram of the Automated RF Test Rack is shown below:
