RF/Microwave Equalizers
"Equalizers on Demand"
"Equalizers on Demand"
- Small form factor
- Positive slope to offset cable/amplifier roll off vs frequency
- Custom slopes and frequency ranges
- Low loss (typically < 1 dB)
- Up to 26 GHz upper frequency
- Negative slopes also available
- Over 320 designs and counting!

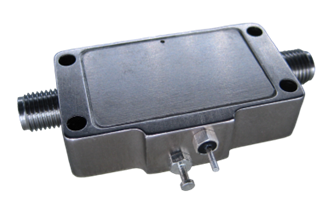

RCT0050 Wideband Amplifier
- 0.5 -18 GHz wide frequency range
- High dynamic range part with flat gain
- < 4 dB noise figure
- > 23 dBm Pout1dB at C and X Bands
- 18.5 dB Gain
- +12V, 215 mA typical

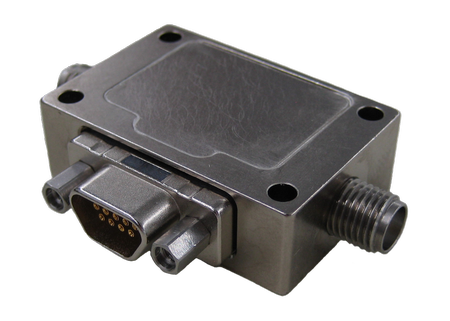

RCT0067 Digital Attenuator
- 0.1 - 20 GHz frequency range
- 5 stage step attenuator
- 0-15 dB, 0.5 dB Step, or
- 0-31 dB, 1 dB Step
- High dynamic range > 22 dBm Pin1dB, 27 dBm max input power
- Uses MicroD connector to save space, +/-12V, TTL/LVDS control
- Great component for dynamic range/gain adjustments!

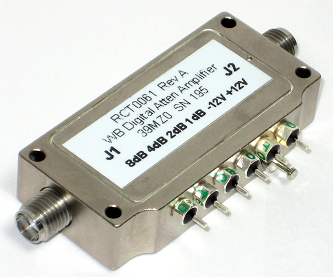

RCT0061 Wideband Amp/Digital Attenuator
- 0.5 -18 GHz wide frequency range
- This part integrates our RCT0050 Wideband Amp and RCT0067 Digital Attenuator into 1 package
- Great component for system dynamic range and gain control
- +/-12V, 215 mA on 12V, TTL/LVDS control
- > 23 dBm Pout1dB At C and X Bands

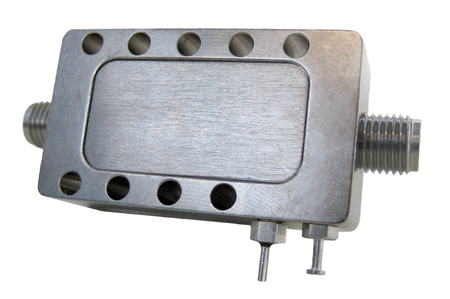

RCT0075 HDR Gain Block
- 0.5 - 18 GHz frequency range
- A high dynamic range gain block with 11 dB typical gain, that can be used throughout a system to offset losses
- Pout 1dB typically > 19 dBm
- NF < 4.5 dB over C and X Bands
- +12V @ 230mA
- Multiple mounting configurations
RCT0070 Mixer/LO Amp
- Wideband Up/Down Converter with built-in saturated LO amp
- High LO drive mixer (+20 dBm) provides high dynamic range and excellent spurious performance (Marki Microwave Mixer)
- RF Input: 5 - 20 GHz
- LO Input: 5 - 20 GHz, -6 to +3 dBm
- IF: DC - 4 GHz
- Pin1dB > +14 dBm

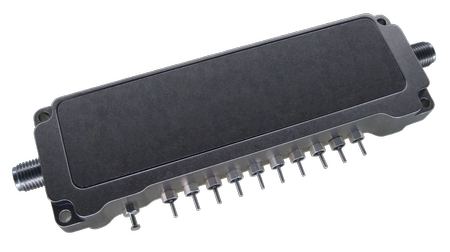

RCT0080 EW CFM (Configurable Filter Module)
- 2 - 18 GHz configurable filter using surface mount technology
- Two filters is series can be configured for low pass, high pass, or band pass
- 2 Amplifiers between stages to offset filter losses
- 15.5 dB output digital attenuator for amplitude control/equalization
- Up to 64 filters can be stored

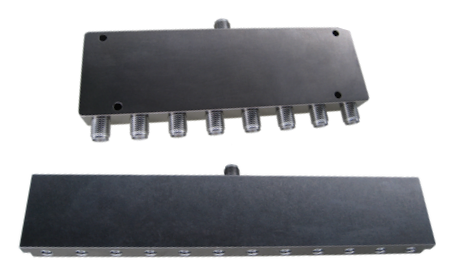

Wideband Power Dividers, 8 Way and 12 Way
- 8-Way and 12-Way power dividers covering wide bandwidths
- 0.5 - 2 GHz
- 2 - 18 GHz
- 2 - 12.5 GHz
- 8 - 18 GHz
- 4 - 18 GHz
- Smallest designs in the industry
- Options for SMP or SMA connectors

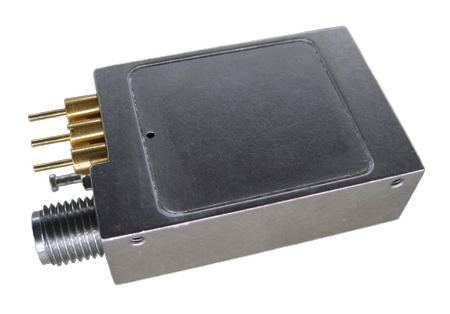

SP2T Wideband Switches
- Frequency 0.1 - 18 GHz
- 2 surface mount switches in series for high isolation
- Internal terminations on all ports
- 60-70 dB isolation
- 20 nSec switch time
- > 23 dBm Pin1dB
- Option for SMA or SMP blind mate connectors

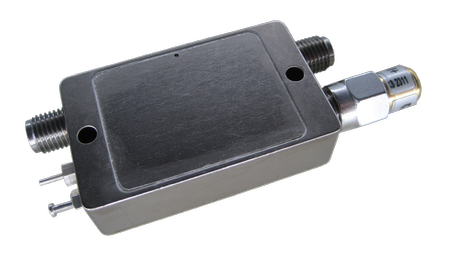

Extreme BW RF Amplifiers
- Ultra WB Frequency coverage from 5 kHz to 3 GHz
- Custom input slopes (0 - 7 dB)
- Resistive power divider for 2 outputs, or bypass for single output
- Pout1dB > 20 dBm
- NF < 5 dB
- 12 - 24 VDC @ 100 mA

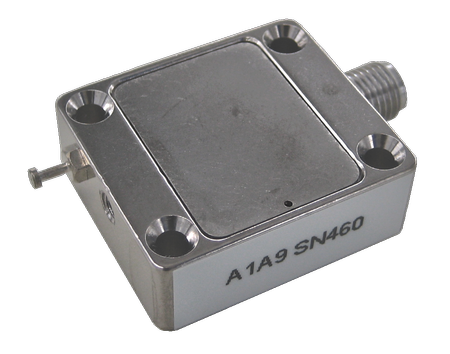

SimpleCycle Crystal Oscillators
- Custom frequencies available from 40 MHz to 1.4 GHz
- Frequency accuracy at +25C: < +/-1 ppm
- Easy connections: +5V DC IN, SMA OUT
- Small package size: 1.06" x 0.92" x 0.37"
- 4 through-holes for mounting
