Equalizers

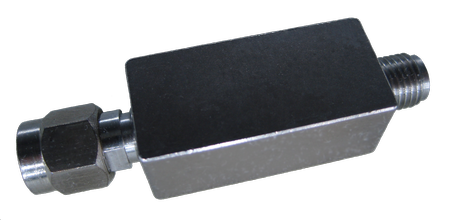

"Equalizers on Demand" are wideband, low loss frequency Equalizers made to provide a positive or negative gain slope from the lower frequency to the upper frequency. These Equalizers are designed to flatten out slope caused by long cables or other passive losses, or amplifier positive or negative gain slopes. We have developed a wide series of Equalizers with various slopes covering different frequency bands from DC to 20 GHz. Please see the current parts catalog table below.

Equalizers are very important to help your system obtain the best dynamic range performance. You can use them to flatten out a negative gain slope to reduce gain tolerances/differences before going into high dynamic range amplifiers.

We aim to create a new paradigm in RF performance with this series of products. We can provide these very quickly to help correct slope in an RF path. "Equalizers on Demand" can trim RF path slopes almost as easily as attenuators can be used to adjust nominal gains.

Request a Quote Parts Catalog Datasheets & Drawings Examples
Current Parts Catalog

When quoting an order, please reference parts using the following format:
REQ-M05-Fxx.x-yy.y-Szz.z

where...

  • xx.x = Start Frequency
  • yy.y = Stop Frequency
  • zz.z = Full Band Slope

Don't see the part your system needs? Let us know and we will try to accomodate you.

Equalizer Catalog Part No. Package Style Start Frequency
 Stop Frequency
 Full Band Slope
 Loss at High Freq S21 Data S11 Data
REQ-M05-F0.03-0.15-S5.0 M05 / M08 30 MHz 150 MHz 5.0 dB 0.9 dB Max S21 S11
Loss at High Freq
0.9 dB Max
Package Style
M05 / M08
Data
S21 / S11

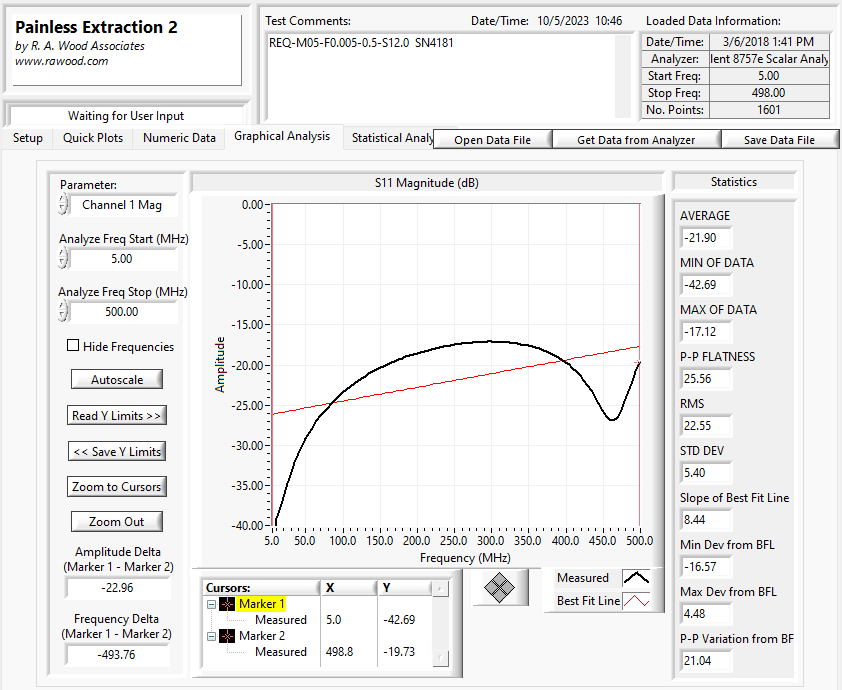

REQ-M05-F0.005-0.5-S12.0 M05 / M08 5 MHz 500 MHz 12.0 dB 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.01-0.5-S6.0 M05 / M08 10 MHz 500 MHz 6.0 dB 1.0 dB Max S21 S11
Loss at High Freq
1.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.01-0.5-S12.0 M05 / M08 10 MHz 500 MHz 12.0 dB 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.02-0.5-S14.0 M05 / M08 20 MHz 500 MHz 14.0 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.03-0.5-S3.3 M05 / M08 30 MHz 500 MHz 3.3 dB 0.8 dB Max S21 S11
Loss at High Freq
0.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.03-0.5-S5.0 M05 / M08 30 MHz 500 MHz 5.0 dB 0.8 dB Max S21 S11
Loss at High Freq
0.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.03-0.5-S6.0 M05 / M08 30 MHz 500 MHz 6.0 dB 1.0 dB Max S21 S11
Loss at High Freq
1.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.005-1.0-S1.8 M05 / M08 5 MHz 1.0 GHz 1.8 dB 0.4 dB Max S21 S11
Loss at High Freq
0.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

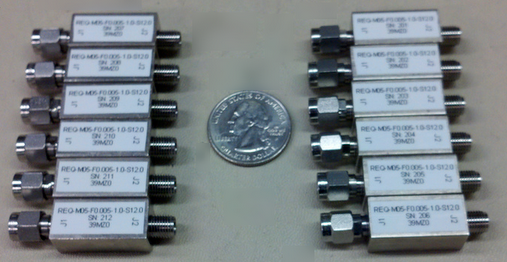

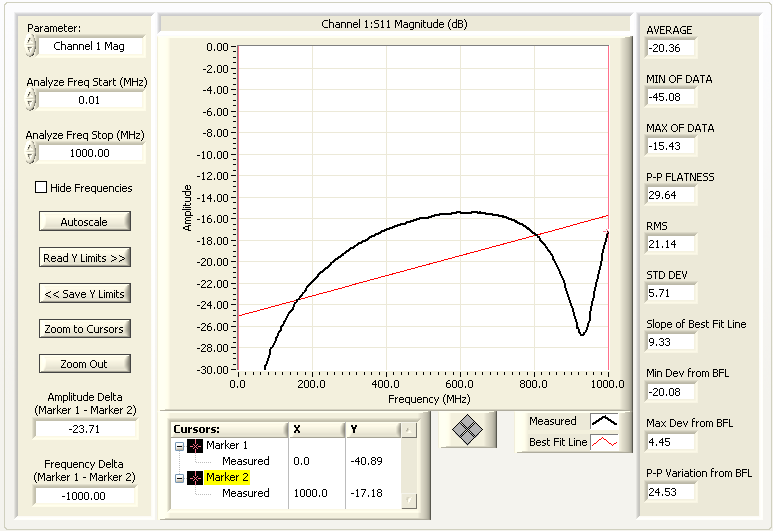

REQ-M05-F0.005-1.0-S12.0 M05 / M08 5 MHz 1.0 GHz 12.0 dB 0.9 dB Max S21 S11
Loss at High Freq
0.9 dB Max
Package Style
M05 / M08
Data
S21 / S11

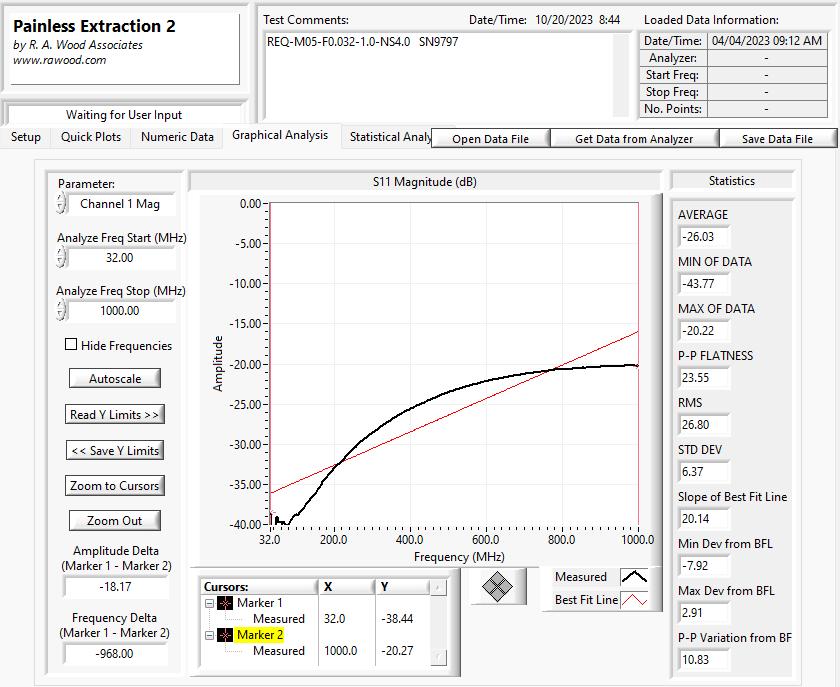

REQ-M05-F0.032-1.0-S-4.0 M05 / M08 32 MHz 1.0 GHz -4.0 dB 0.4 dB Max* Low Freq. S21 S11
Loss at High Freq
0.4 dB Max* Low Freq.
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.1-1.0-S4.0 M05 / M08 100 MHz 1.0 GHz 4.0 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11

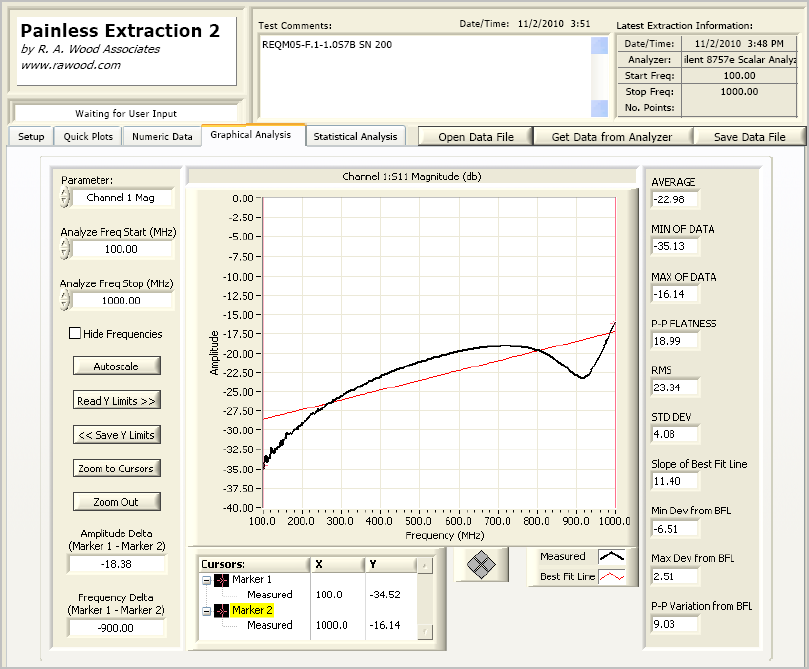

REQ-M05-F0.1-1.0-S7.0B M05 / M08 100 MHz 1.0 GHz 7.0 dB Custom Curve 0.9 dB Max S21 S11
Loss at High Freq
0.9 dB Max
Package Style
M05 / M08
Data
S21 / S11

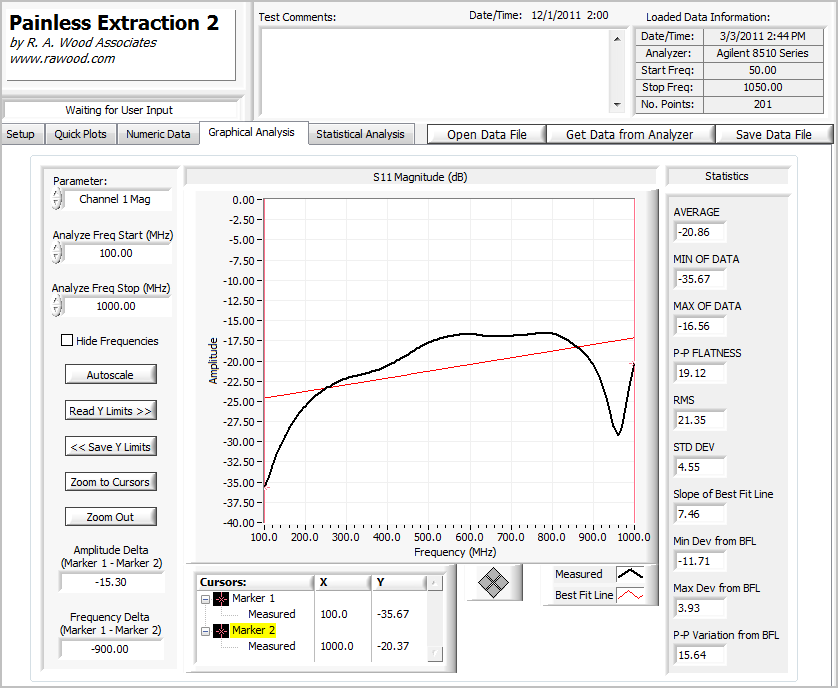

REQ-M05-F0.1-1.0-S9.0B M05 / M08 100 MHz 1.0 GHz 9.0 dB Custom Curve 1.1 dB Max S21 S11
Loss at High Freq
1.1 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.1-1.0-S15.0 M05 / M08 100 MHz 1.0 GHz 15.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

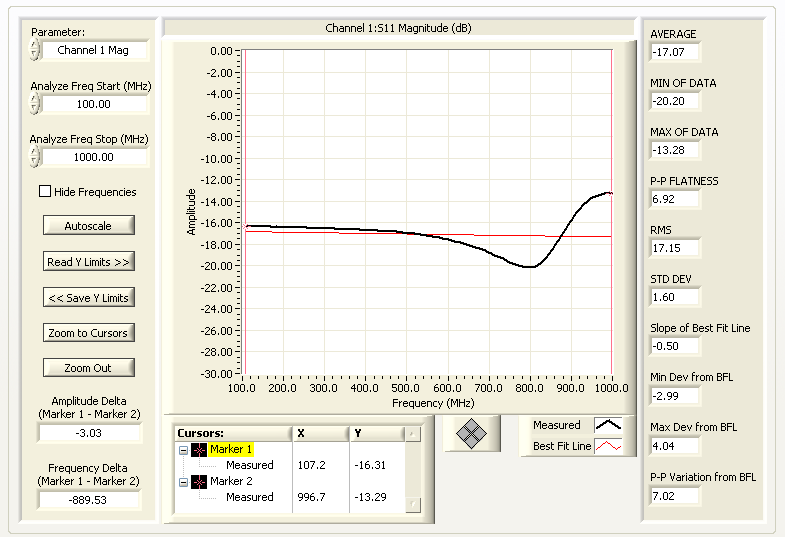

REQ-M05-F0.1-1.0-S38.0 M05 / M08 100 MHz 1.0 GHz 38.0 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.35-1.0-S3.0 M05 / M08 350 MHz 1.0 GHz 3.0 dB 0.9 dB Max S21 S11
Loss at High Freq
0.9 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.35-1.0-S10.0 M05 / M08 350 MHz 1.0 GHz 10.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.1-1.1-S2.0 M05 / M08 100 MHz 1.1 GHz 2.0 dB 0.5 dB Max S21 S11
Loss at High Freq
0.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

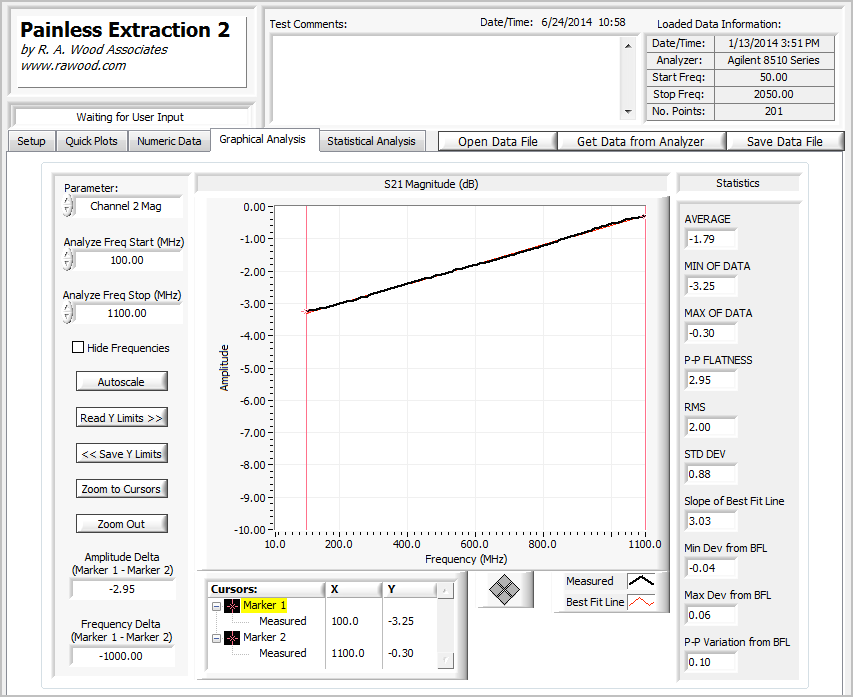

REQ-M05-F0.1-1.1-S3.0 M05 / M08 100 MHz 1.1 GHz 3.0 dB 0.5 dB Max S21 S11
Loss at High Freq
0.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.1-1.1-S4.0 M05 / M08 100 MHz 1.1 GHz 4.0 dB 0.6 dB Max S21 S11
Loss at High Freq
0.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.1-1.1-S5.0 M05 / M08 100 MHz 1.1 GHz 5.0 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

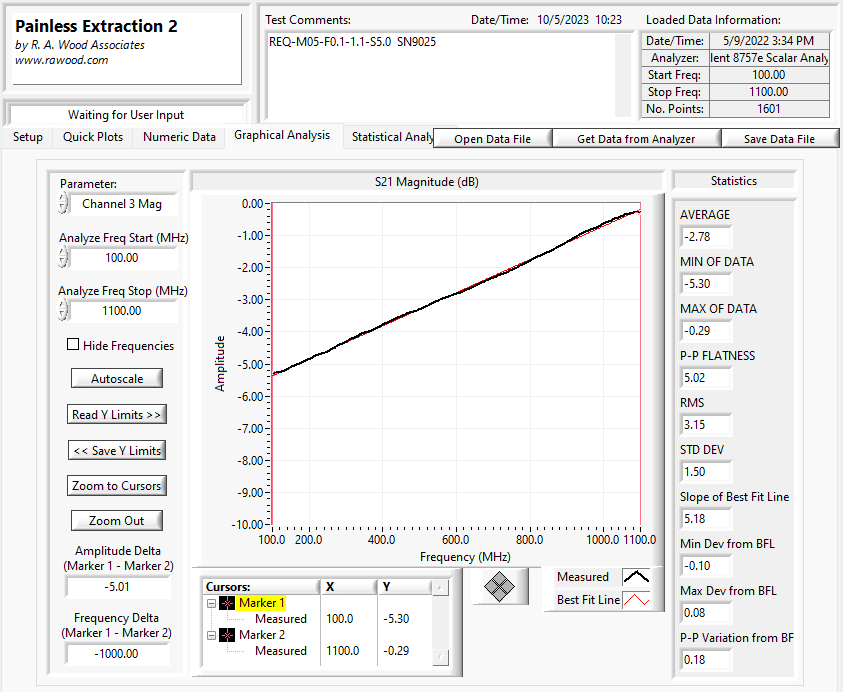

REQ-M05-F0.1-1.1-S5.0-FF M05 / M08 100 MHz 1.1 GHz 5.0 dB 0.5 dB Max S21 S11
Loss at High Freq
0.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.1-1.1-S6.0 M05 / M08 100 MHz 1.1 GHz 6.0 dB 0.8 dB Max S21 S11
Loss at High Freq
0.8 dB Max
Package Style
M05 / M08
Data
S21 / S11

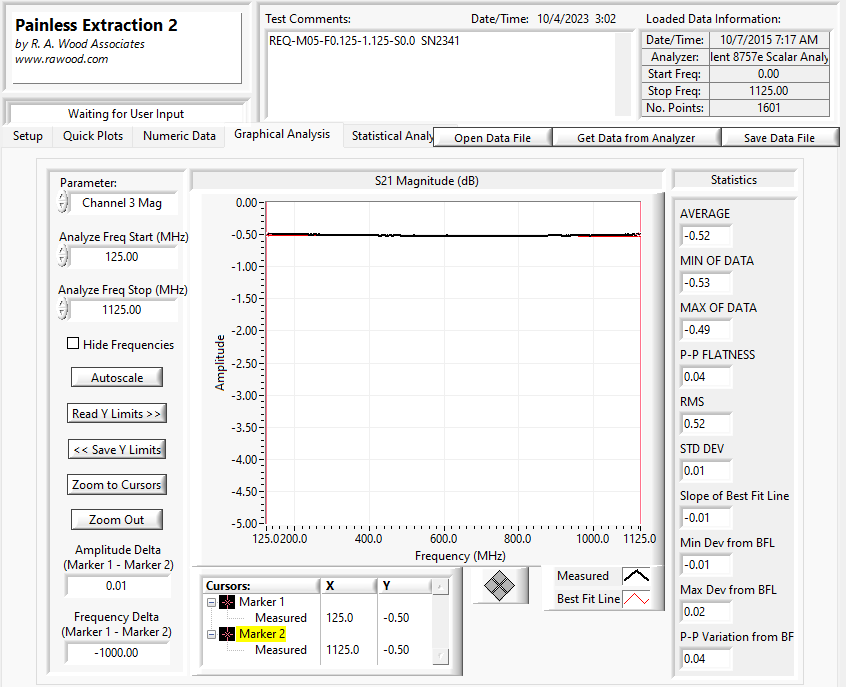

REQ-M05-F0.125-1.125-S0.0 M05 / M08 125 MHz 1.125 GHz 0.0 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

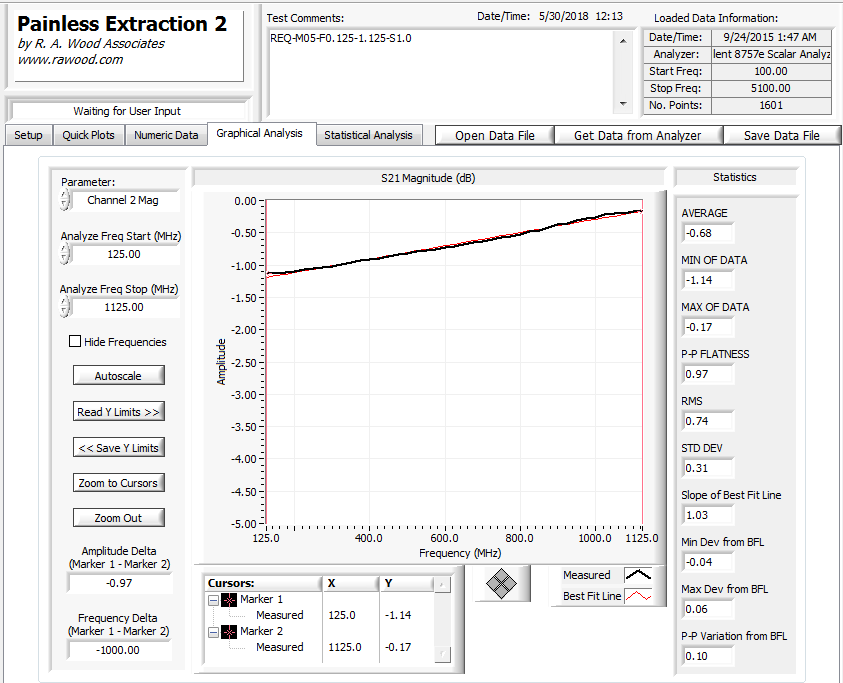

REQ-M05-F0.125-1.125-S1.0 M05 / M08 125 MHz 1.125 GHz 1.0 dB 0.4 dB Max S21 S11
Loss at High Freq
0.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.125-1.125-S2.0 M05 / M08 125 MHz 1.125 GHz 2.0 dB 0.5 dB Max S21 S11
Loss at High Freq
0.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

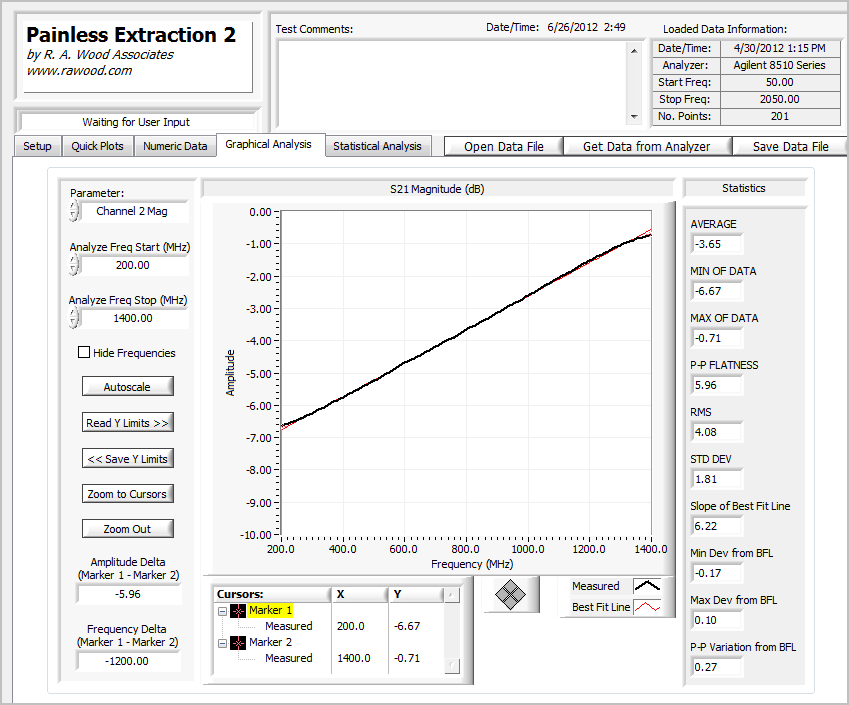

REQ-M05-F0.2-1.4-S6.0-FF M05 / M08 200 MHz 1.4 GHz 6.0 dB 1.0 dB Max S21 S11
Loss at High Freq
1.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.2-1.6-S6.0 M05 / M08 1.2 GHz 1.6 GHz 6.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.2-1.8-S15.0 M05 / M08 1.2 GHz 1.8 GHz 15.0 dB 2.4 dB Max S21 S11
Loss at High Freq
2.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.005-2.0-S11.0 M05 / M08 5 MHz 2.0 GHz 11.0 dB 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.005-2.0-S12.0 M05 / M08 5 MHz 2.0 GHz 12.0 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11

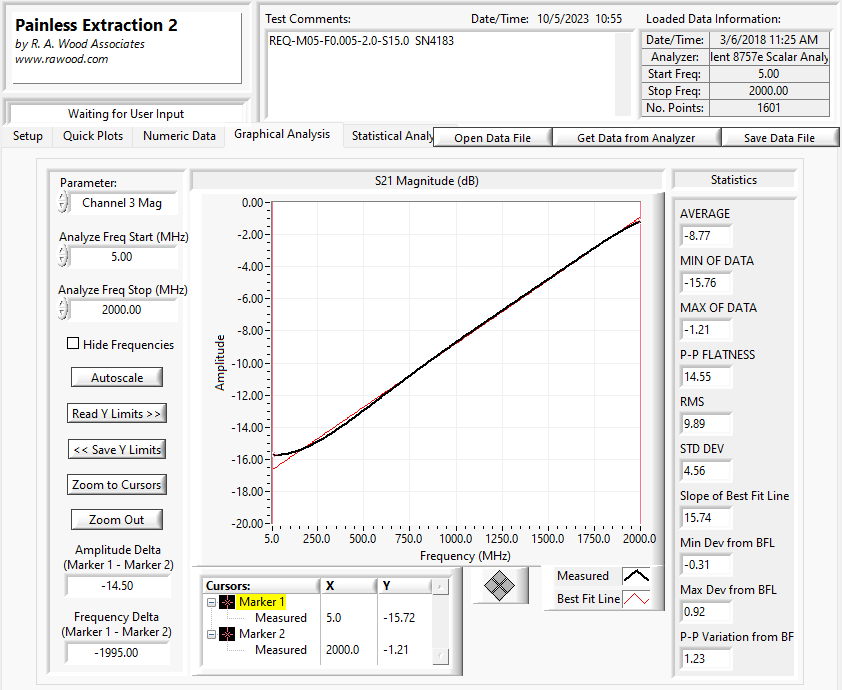

REQ-M05-F0.005-2.0-S15.0 M05 / M08 5 MHz 2.0 GHz 15.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.01-2.0-S5.0 M05 / M08 10 MHz 2.0 GHz 5.0 dB 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.01-2.0-S6.0 M05 / M08 10 MHz 2.0 GHz 6.0 dB 0.8 dB Max S21 S11
Loss at High Freq
0.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.01-2.0-S7.5 M05 / M08 10 MHz 2.0 GHz 7.5 dB 0.8 dB Max S21 S11
Loss at High Freq
0.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.01-2.0-S10.0 M05 / M08 10 MHz 2.0 GHz 10.0 dB 1.1 dB Max S21 S11
Loss at High Freq
1.1 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.01-2.0-S11.0 M05 / M08 10 MHz 2.0 GHz 11.0 dB 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.01-2.0-S12.0 M05 / M08 10 MHz 2.0 GHz 12.0 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11

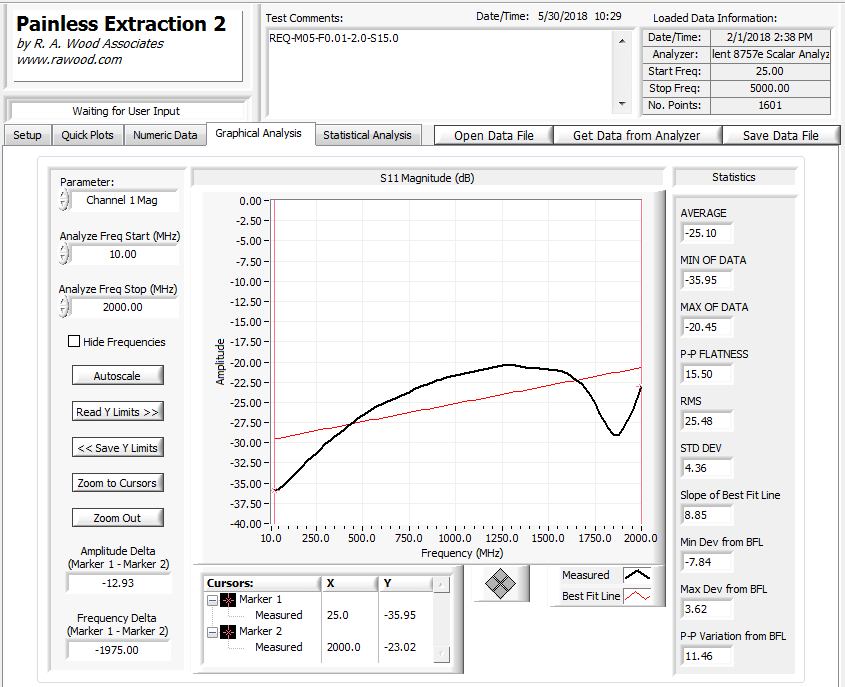

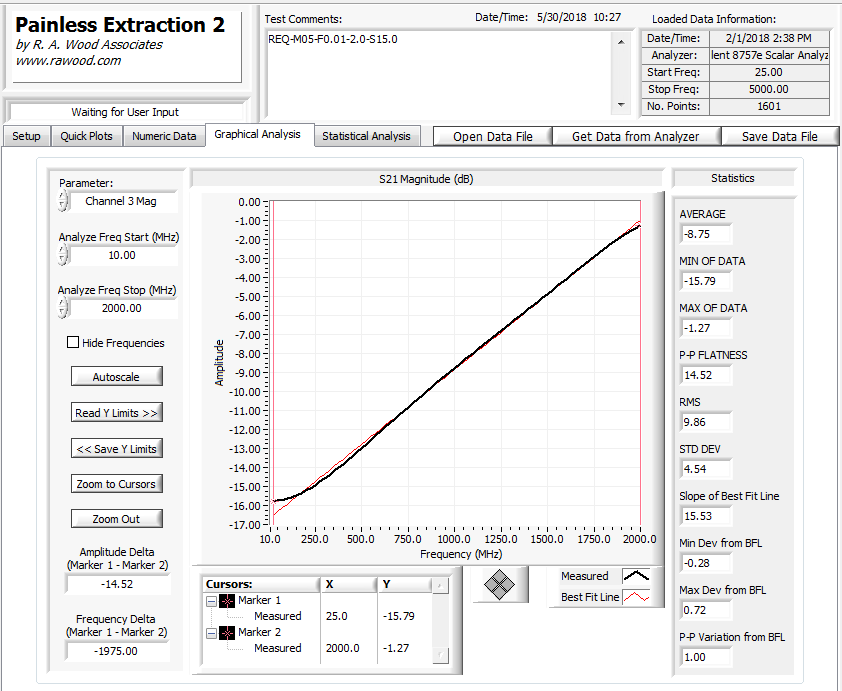

REQ-M05-F0.01-2.0-S15.0 M05 / M08 10 MHz 2.0 GHz 15.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

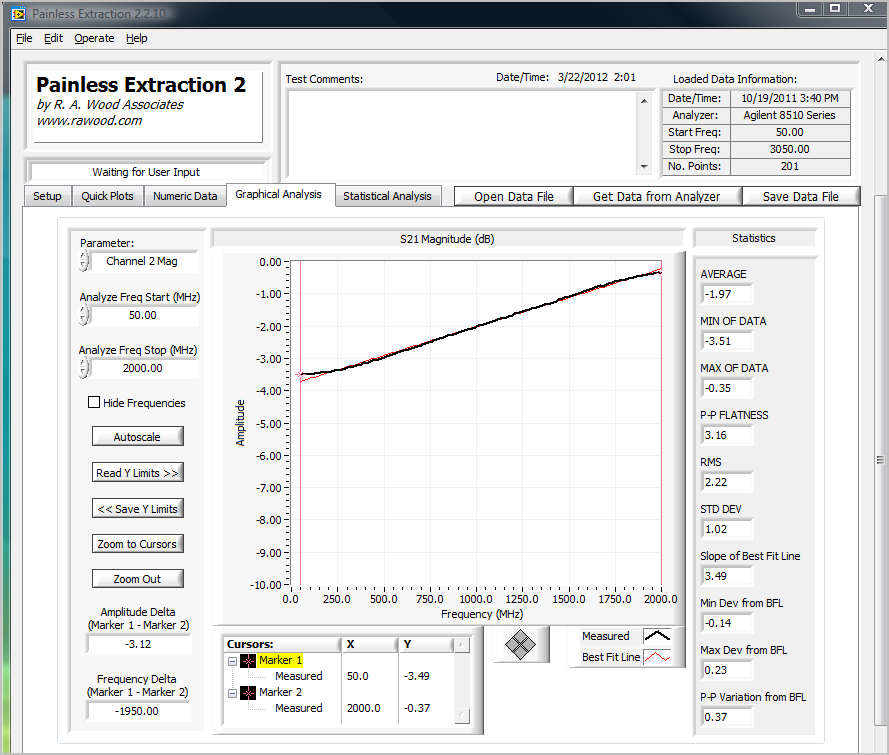

REQ-M05-F0.05-2.0-S3.2 M05 / M08 50 MHz 2.0 GHz 3.2 dB 0.6 dB Max S21 S11
Loss at High Freq
0.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.05-2.0-S4.0 M05 / M08 50 MHz 2.0 GHz 4.0 dB 0.6 dB Max S21 S11
Loss at High Freq
0.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

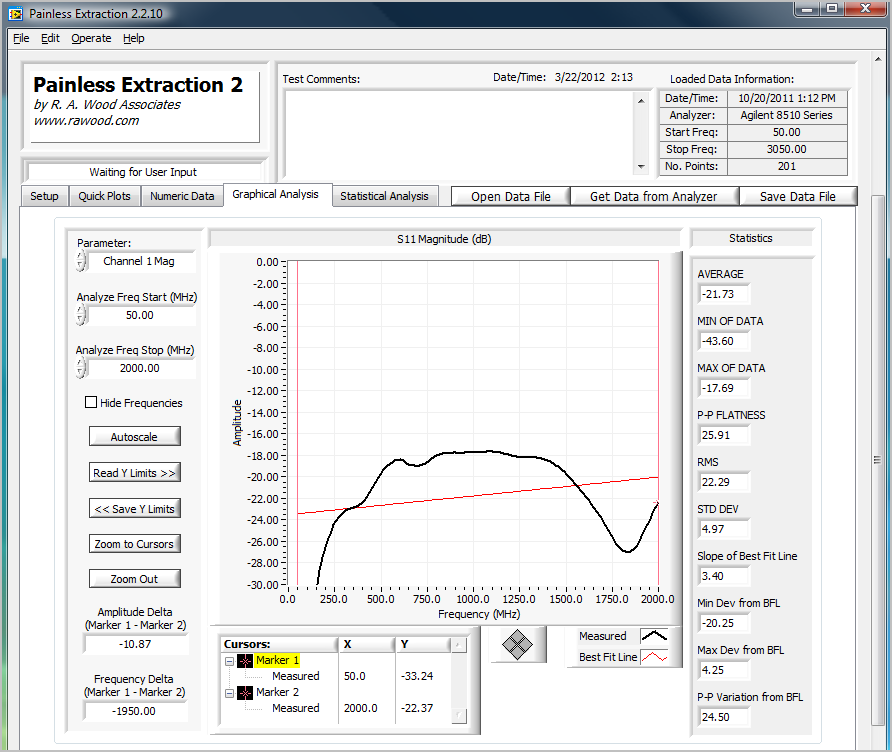

REQ-M05-F0.05-2.0-S5.7 M05 / M08 50 MHz 2.0 GHz 5.7 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

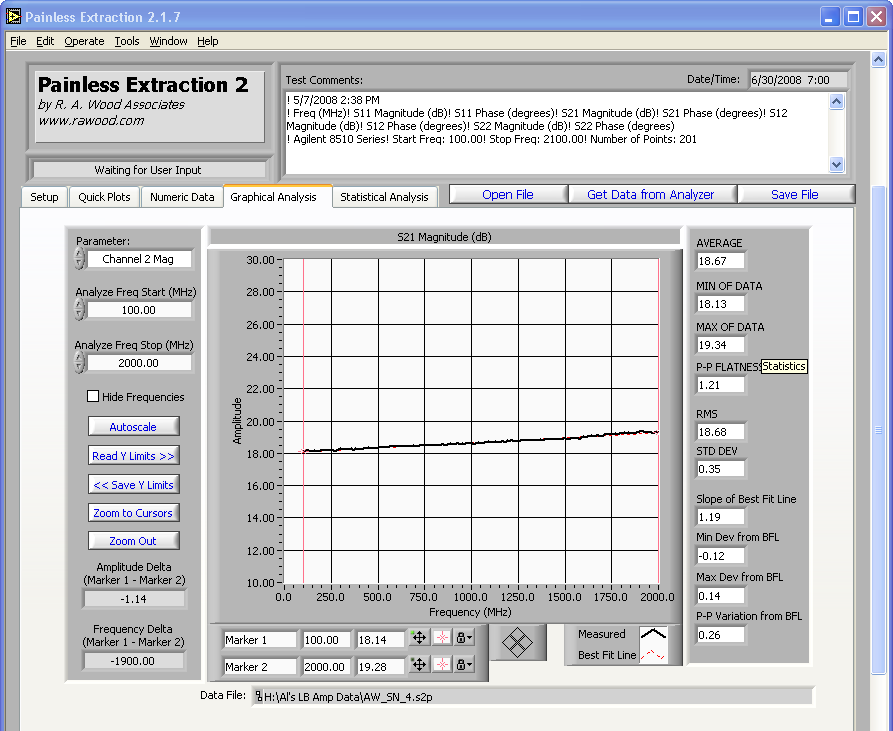

REQ-M05-F0.1-2.0-S6.0 M05 / M08 100 MHz 2.0 GHz 6.0 dB 0.6 dB Max S21 S11
Loss at High Freq
0.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.1-2.0-S6.0-FF M05 / M08 100 MHz 2.0 GHz 6.0 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.1-2.0-S7.0-FF M05 / M08 100 MHz 2.0 GHz 7.0 dB 1.0 dB Max S21 S11
Loss at High Freq
1.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.1-2.0-S8.0-FF M05 / M08 100 MHz 2.0 GHz 8.0 dB 1.1 dB Max S21 S11
Loss at High Freq
1.1 dB Max
Package Style
M05 / M08
Data
S21 / S11

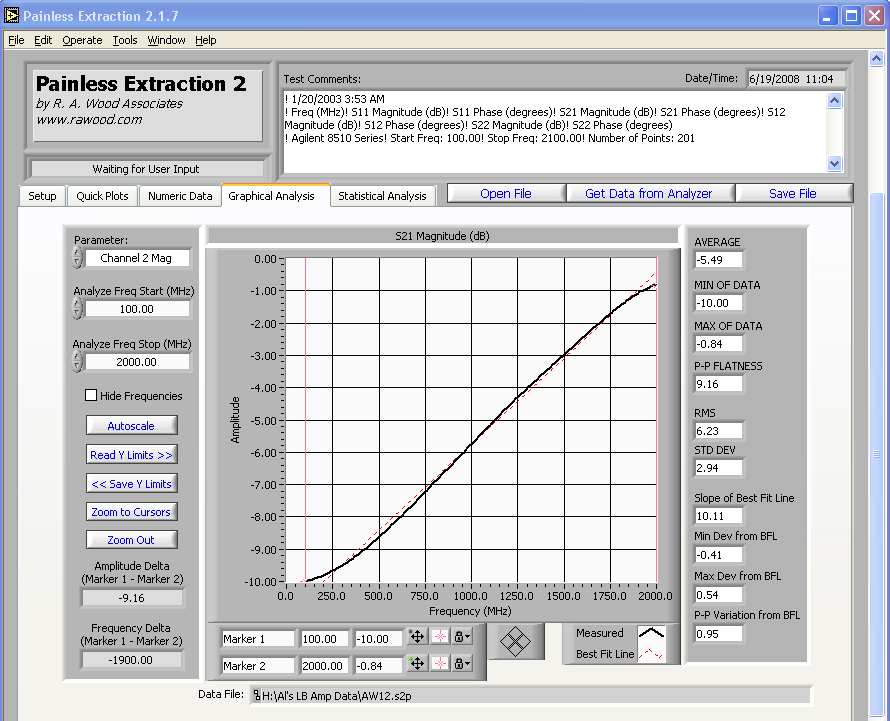

REQ-M05-F0.1-2.0-S9.0 M05 / M08 100 MHz 2.0 GHz 9.0 dB 0.9 dB Max S21 S11
Loss at High Freq
0.9 dB Max
Package Style
M05 / M08
Data
S21 / S11

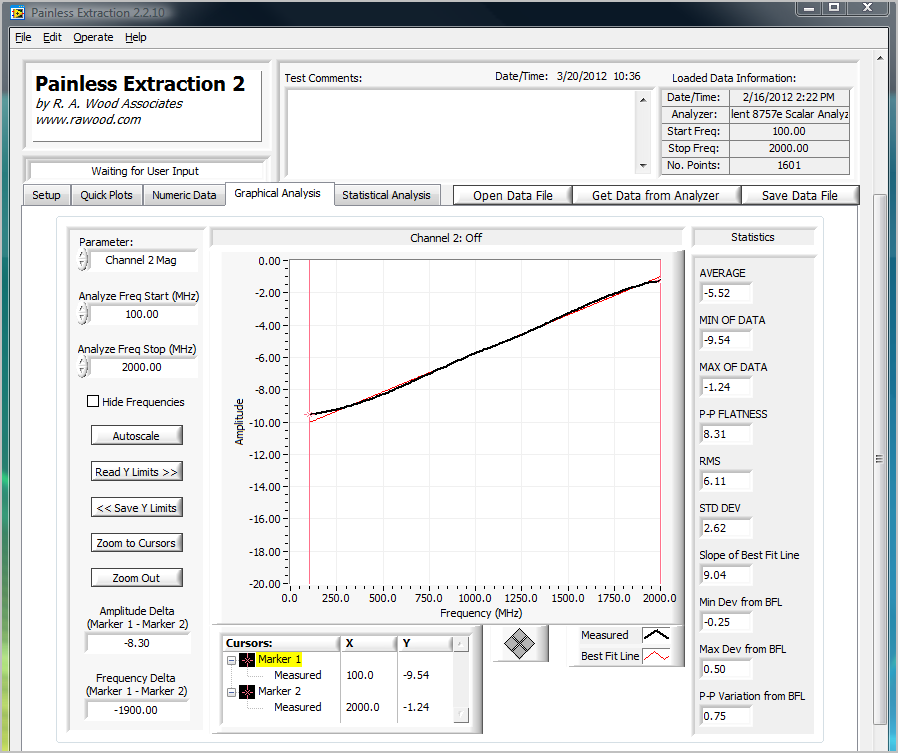

REQ-M05-F0.1-2.0-S9.0-FF M05 / M08 100 MHz 2.0 GHz 9.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

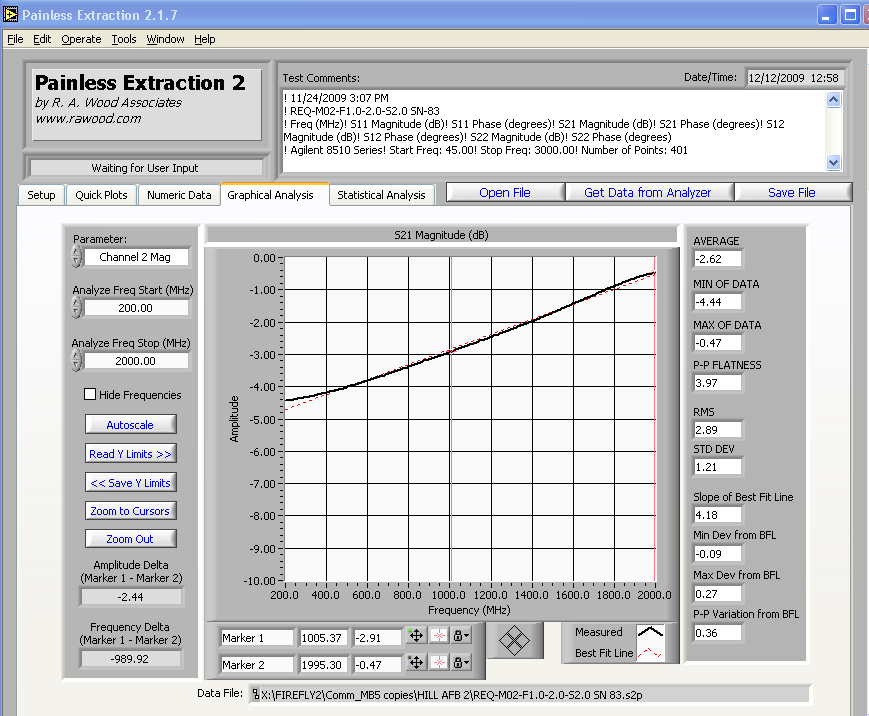

REQ-M05-F0.2-2.0-S4.0 M05 / M08 200 MHz 2.0 GHz 4.0 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.3-2.0-S20.0 M05 / M08 300 MHz 2.0 GHz 20.0 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-2.0-S2.6-FF M05 / M08 500 MHz 2.0 GHz 2.6 dB 0.6 dB Max S21 S11
Loss at High Freq
0.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

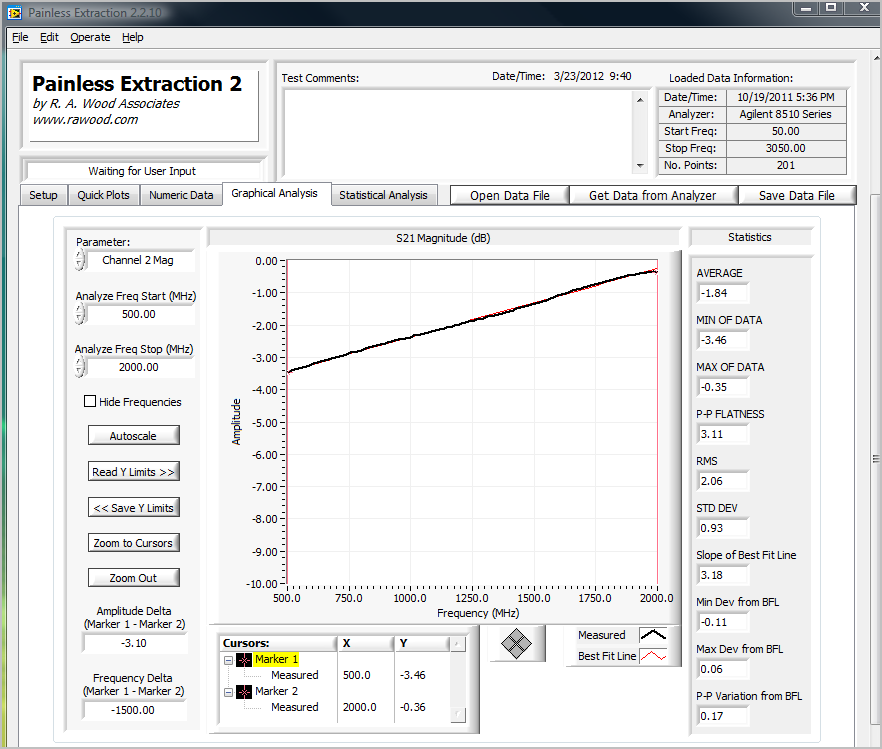

REQ-M05-F0.5-2.0-S3.1-FF M05 / M08 500 MHz 2.0 GHz 3.1 dB 0.6 dB Max S21 S11
Loss at High Freq
0.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

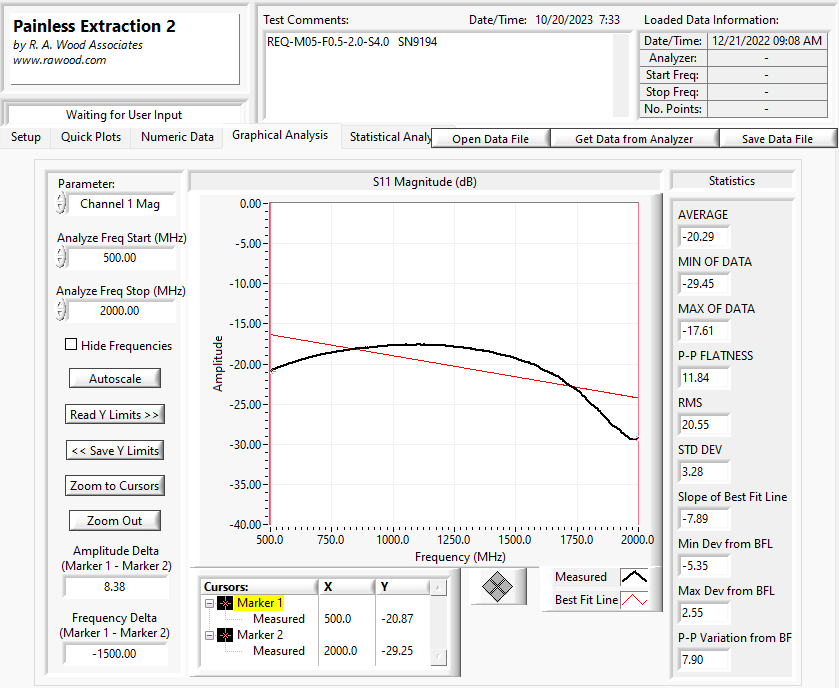

REQ-M05-F0.5-2.0-S4.0 M05 / M08 500 MHz 2.0 GHz 4.0 dB 0.8 dB Max S21 S11
Loss at High Freq
0.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-2.0-S4.5 M05 / M08 500 MHz 2.0 GHz 4.5 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

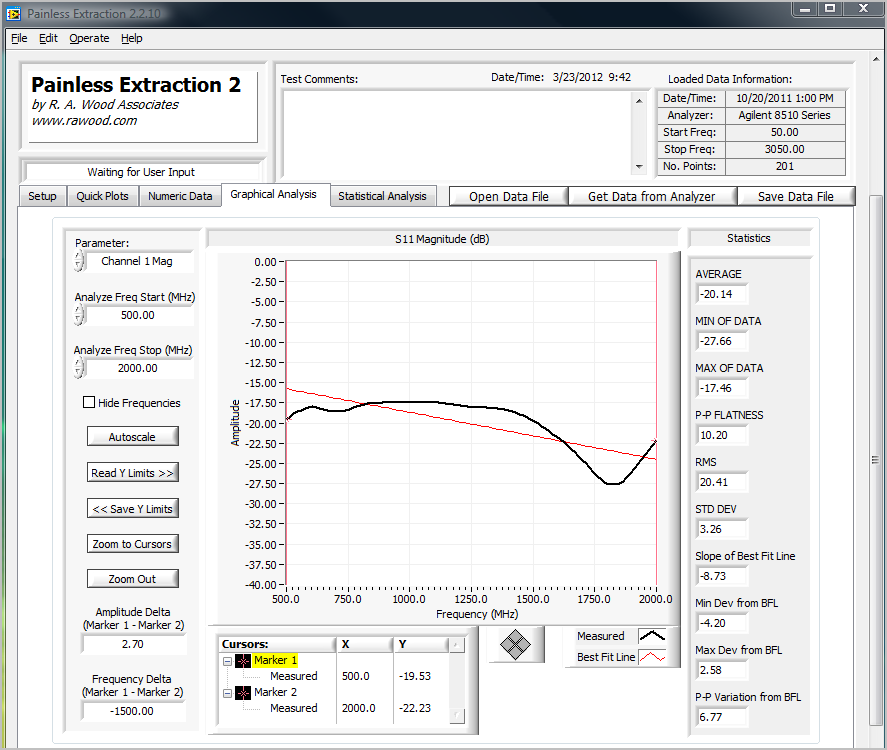

REQ-M05-F0.5-2.0-S4.5-FF M05 / M08 500 MHz 2.0 GHz 4.5 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-2.0-S11.0 M05 / M08 500 MHz 2.0 GHz 11.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

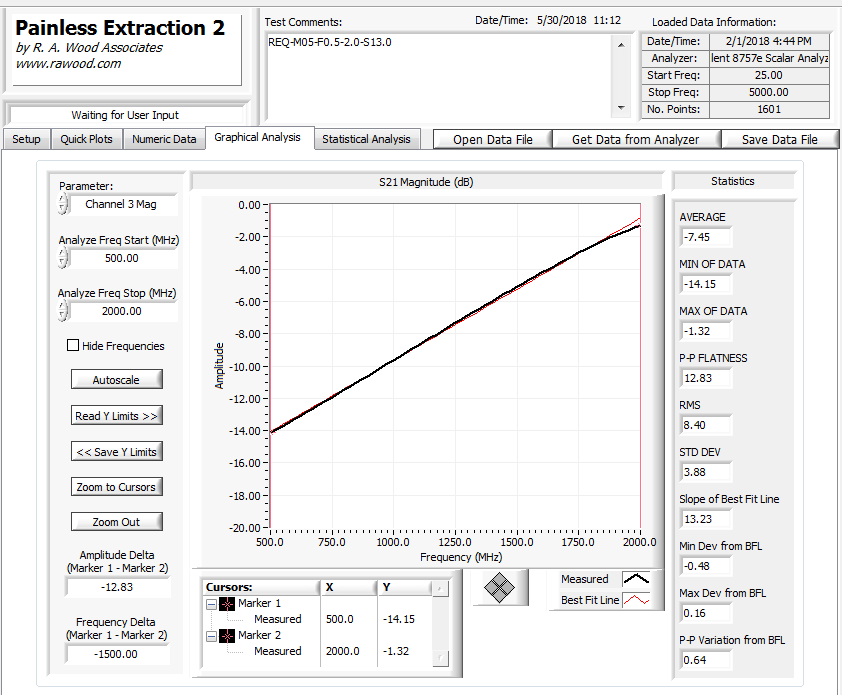

REQ-M05-F0.5-2.0-S13.0 M05 / M08 500 MHz 2.0 GHz 13.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-2.0-S2.0 M05 / M08 1.0 GHz 2.0 GHz 2.0 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-2.0-S3.0 M05 / M08 1.0 GHz 2.0 GHz 3.0 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-2.0-S4.0 M05 / M08 1.0 GHz 2.0 GHz 4.0 dB 1.0 dB Max S21 S11
Loss at High Freq
1.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-2.0-S9.5 M05 / M08 1.0 GHz 2.0 GHz 9.5 dB 1.1 dB Max S21 S11
Loss at High Freq
1.1 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-2.0-S10.0 M05 / M08 1.0 GHz 2.0 GHz 10.0 dB 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11

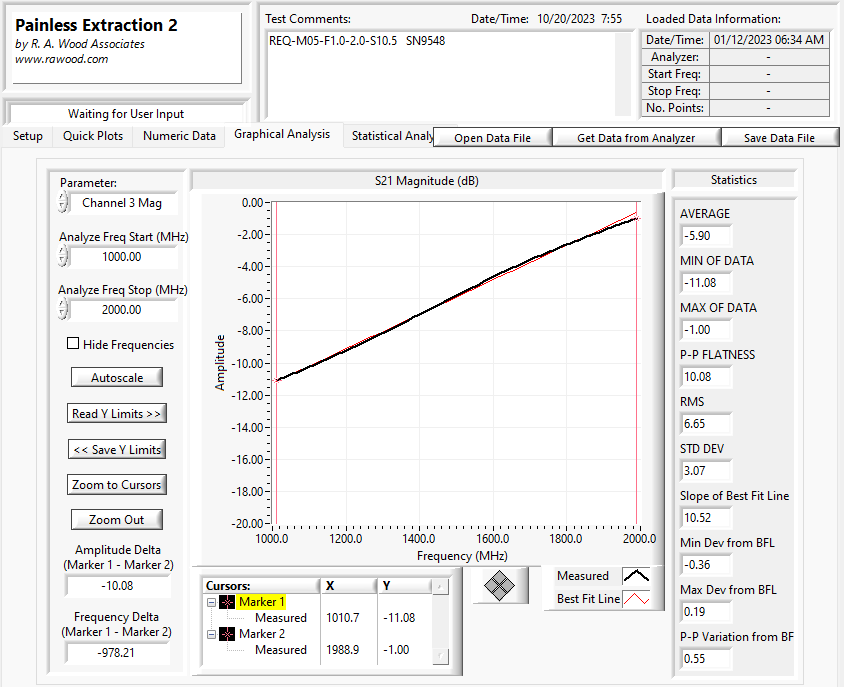

REQ-M05-F1.0-2.0-S10.5 M05 / M08 1.0 GHz 2.0 GHz 10.5 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-2.0-S11.0 M05 / M08 1.0 GHz 2.0 GHz 11.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

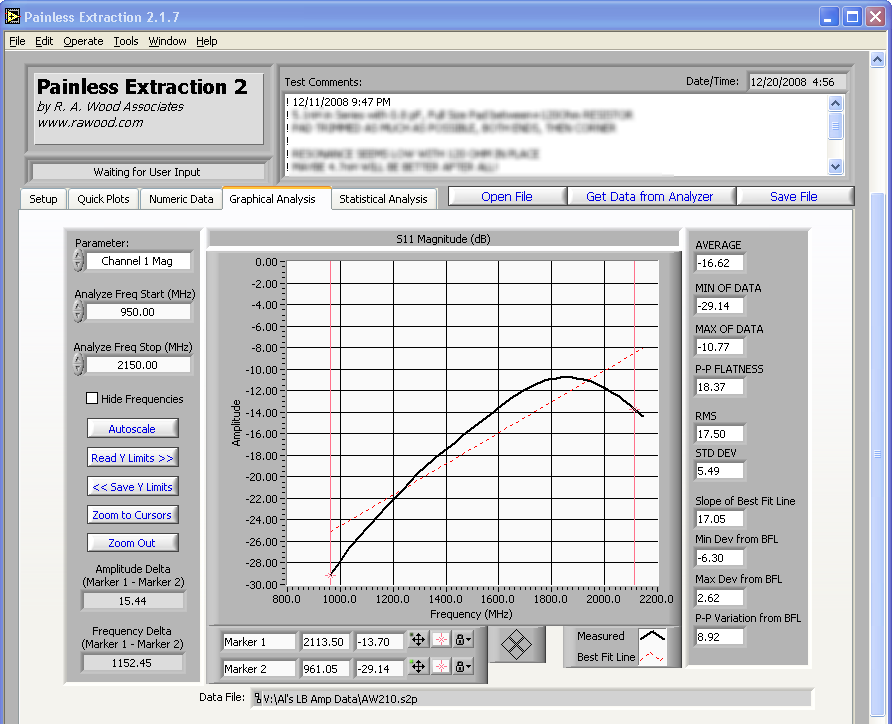

REQ-M05-F0.95-2.15-S7.5 M05 / M08 950 MHz 2.15 GHz 7.5 dB 0.9 dB Max S21 S11
Loss at High Freq
0.9 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.95-2.15-S11.0 M05 / M08 950 MHz 2.15 GHz 11.0 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11

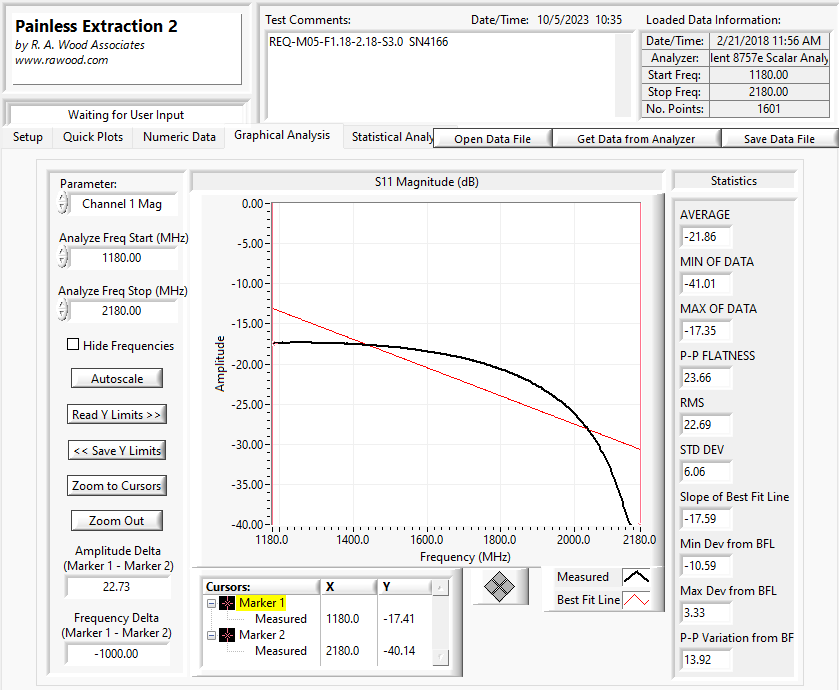

REQ-M05-F1.18-2.18-S3.0 M05 / M08 1.18 GHz 2.18 GHz 3.0 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.001-3.0-S8.5 M05 / M08 1 MHz 3.0 GHz 8.5 dB 0.8 dB Max S21 S11
Loss at High Freq
0.8 dB Max
Package Style
M05 / M08
Data
S21 / S11

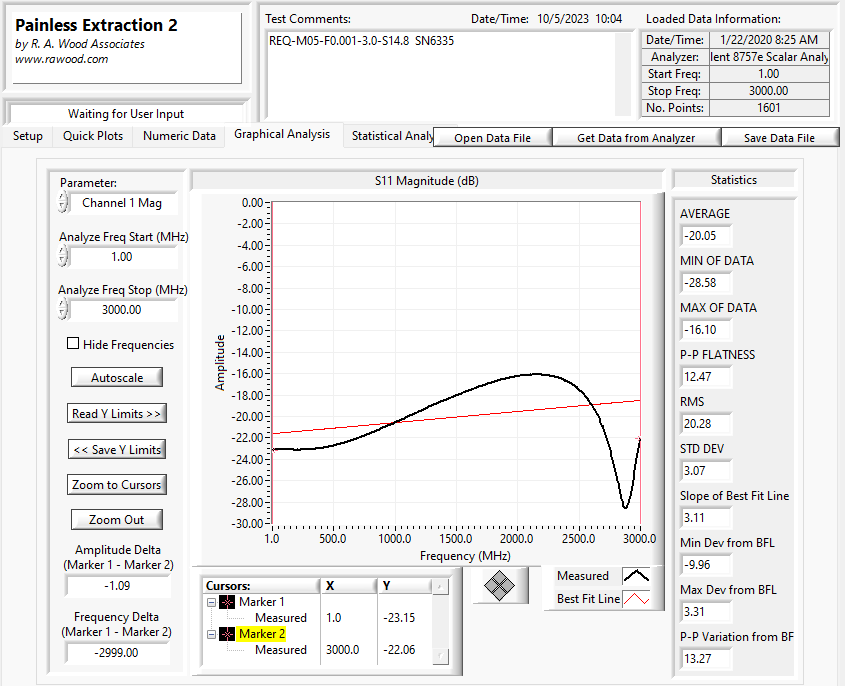

REQ-M05-F0.001-3.0-S14.8 M05 / M08 1 MHz 3.0 GHz 14.8 dB 1.0 dB Max S21 S11
Loss at High Freq
1.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.01-3.0-S4.0 M05 / M08 10 MHz 3.0 GHz 4.0 dB 0.6 dB Max S21 S11
Loss at High Freq
0.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

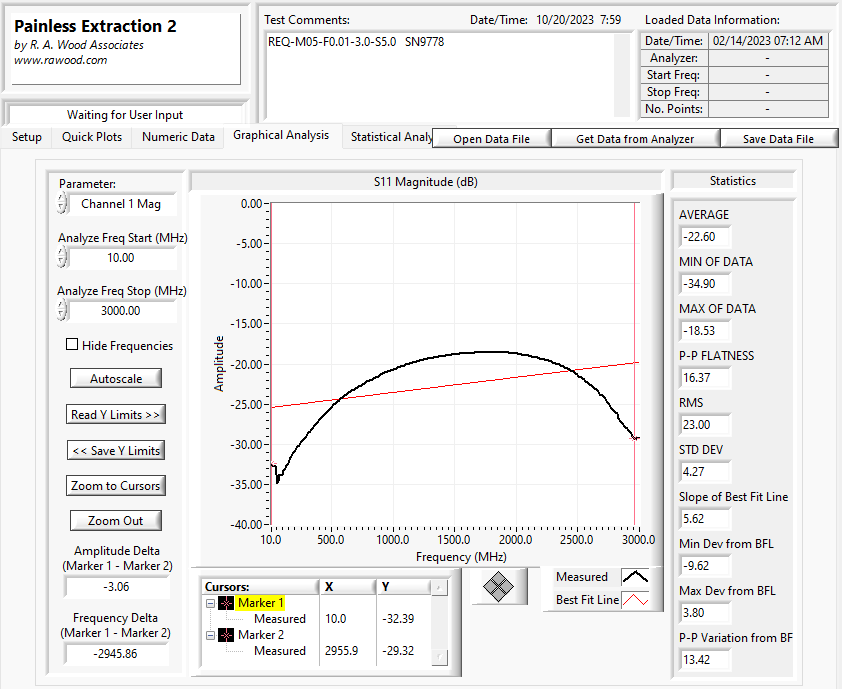

REQ-M05-F0.01-3.0-S5.0 M05 / M08 10 MHz 3.0 GHz 5.0 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.01-3.0-S7.5 M05 / M08 10 MHz 3.0 GHz 7.5 dB 0.9 dB Max S21 S11
Loss at High Freq
0.9 dB Max
Package Style
M05 / M08
Data
S21 / S11

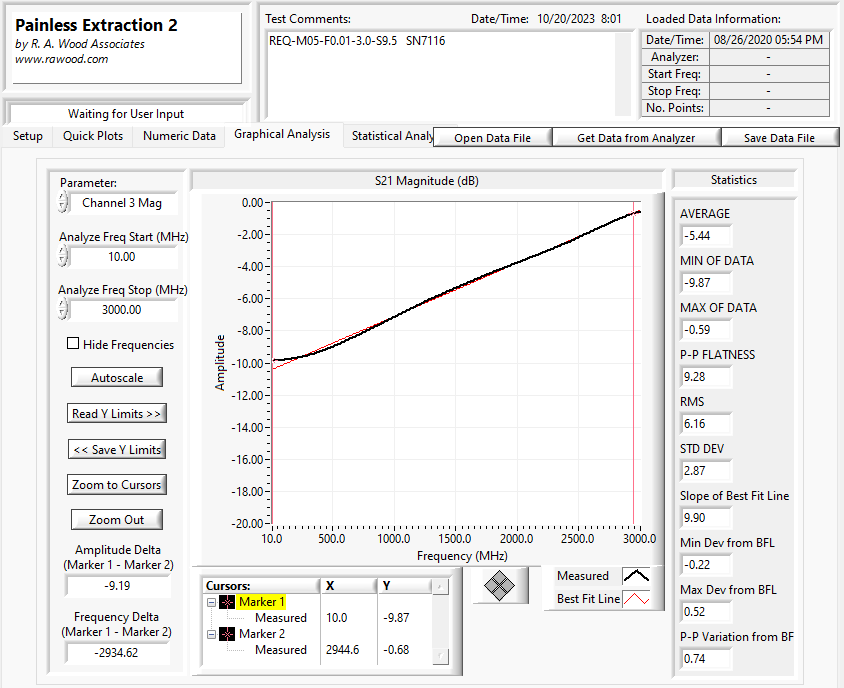

REQ-M05-F0.01-3.0-S9.5 M05 / M08 10 MHz 3.0 GHz 9.5 dB 0.8 dB Max S21 S11
Loss at High Freq
0.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.1-3.0-S5.0 M05 / M08 100 MHz 3.0 GHz 5.0 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.15-3.0-S16.0 M05 / M08 150 MHz 3.0 GHz 16.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.6-3.6-S7.0 M05 / M08 2.6 GHz 3.6 GHz 7.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

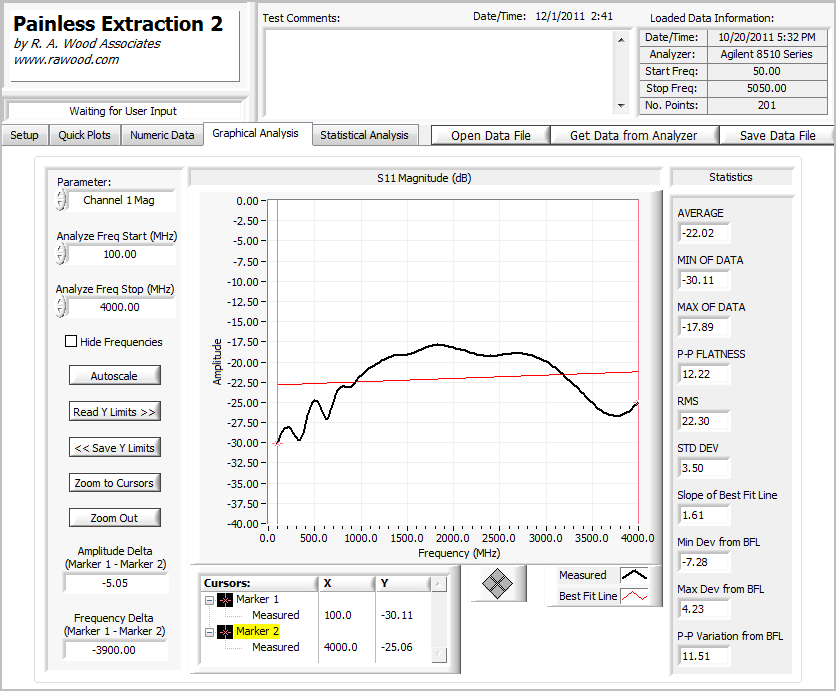

REQ-M05-F0.1-4.0-S7.0 M05 / M08 100 MHz 4.0 GHz 7.0 dB 1.0 dB Max S21 S11
Loss at High Freq
1.0 dB Max
Package Style
M05 / M08
Data
S21 / S11

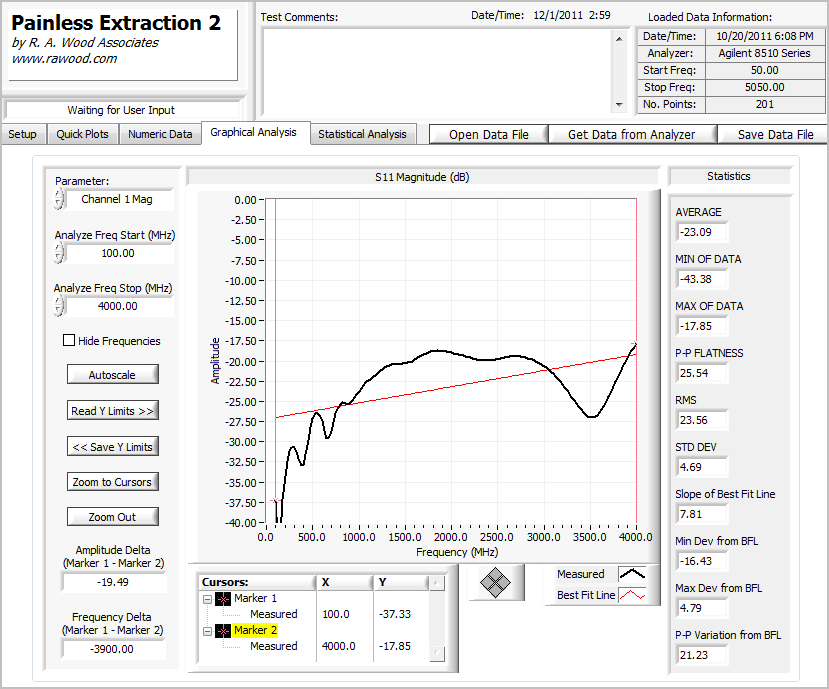

REQ-M05-F0.1-4.0-S10.0 M05 / M08 100 MHz 4.0 GHz 10.0 dB 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.1-4.0-S18.5 M05 / M08 100 MHz 4.0 GHz 18.5 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-4.0-S6.8 M05 / M08 500 MHz 4.0 GHz 6.8 dB 1.0 dB Max S21 S11
Loss at High Freq
1.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-4.0-S8.3 M05 / M08 500 MHz 4.0 GHz 8.3 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-4.0-S10.0 M05 / M08 500 MHz 4.0 GHz 10.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-4.0-S14.0 M05 / M08 500 MHz 4.0 GHz 14.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-4.0-S17.5 M05 / M08 500 MHz 4.0 GHz 17.5 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-4.0-S3.0 M05 / M08 1.0 GHz 4.0 GHz 3.0 dB 0.8 dB Max S21 S11
Loss at High Freq
0.8 dB Max
Package Style
M05 / M08
Data
S21 / S11

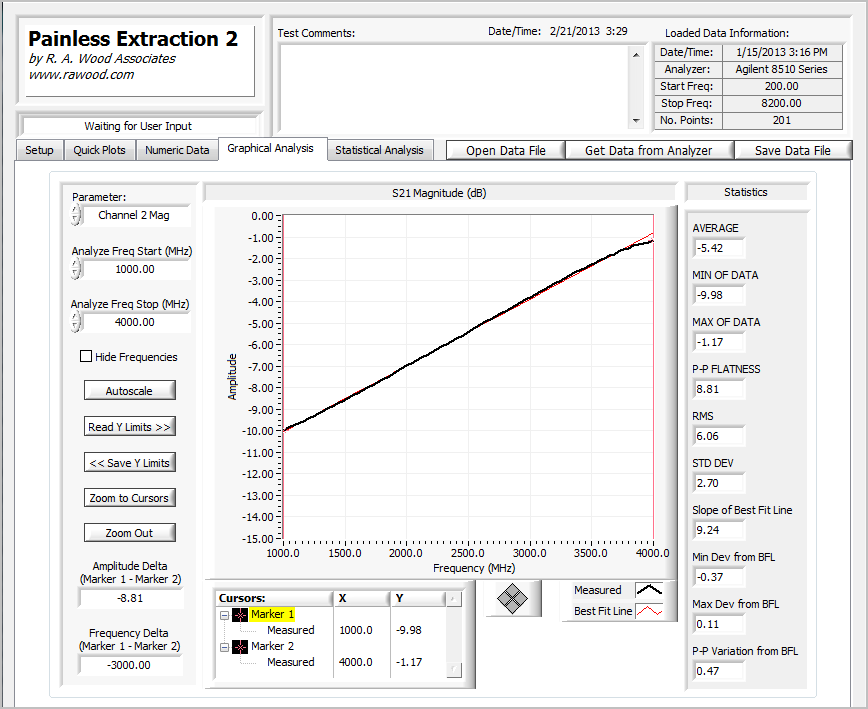

REQ-M05-F1.0-4.0-S9.0 M05 / M08 1.0 GHz 4.0 GHz 9.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

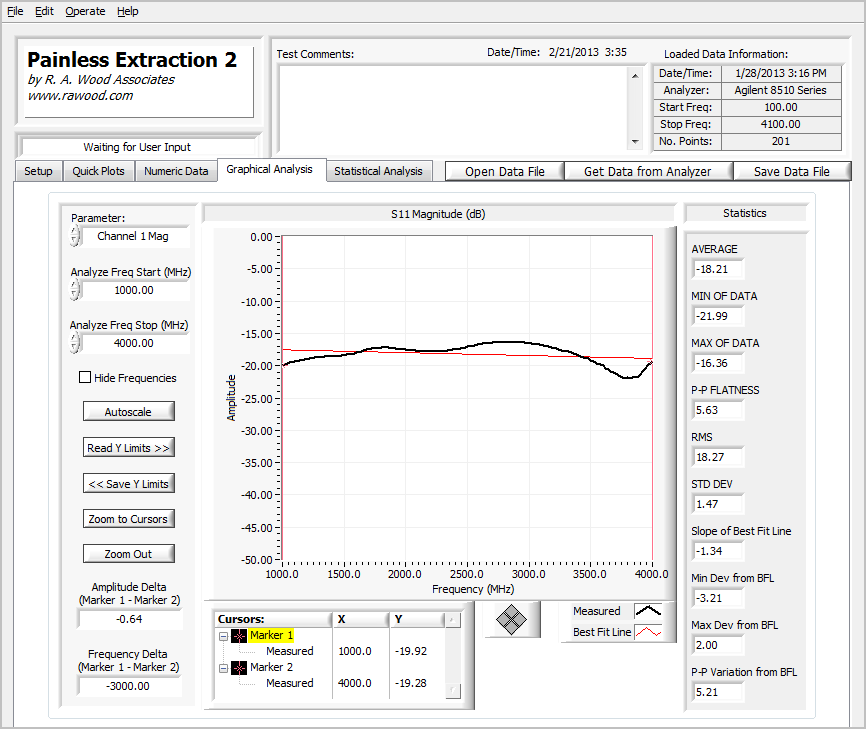

REQ-M05-F1.0-4.0-S12.0 M05 / M08 1.0 GHz 4.0 GHz 12.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

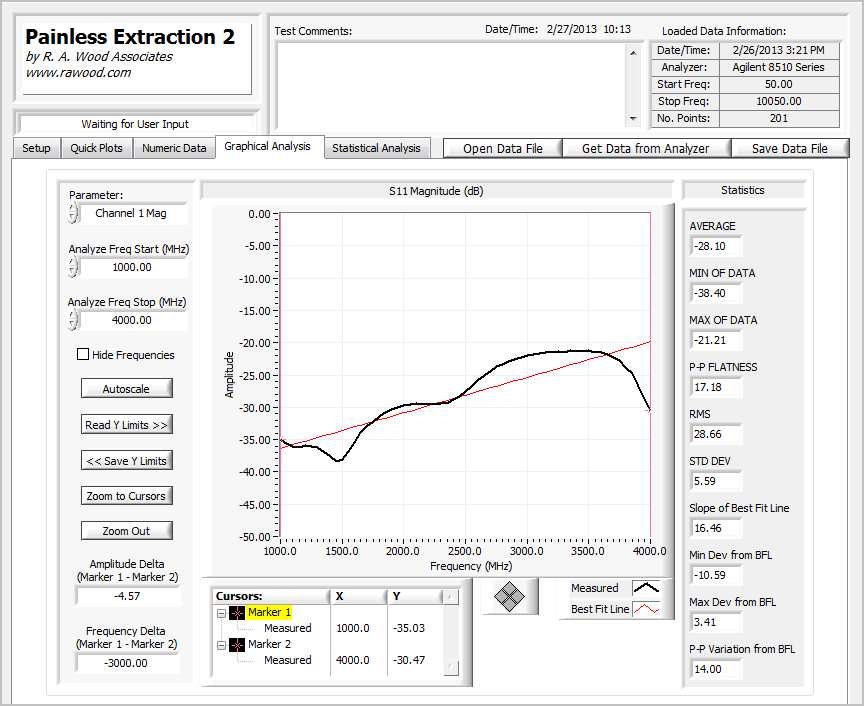

REQ-M05-F1.0-4.0-S15.0 M05 / M08 1.0 GHz 4.0 GHz 15.0 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11

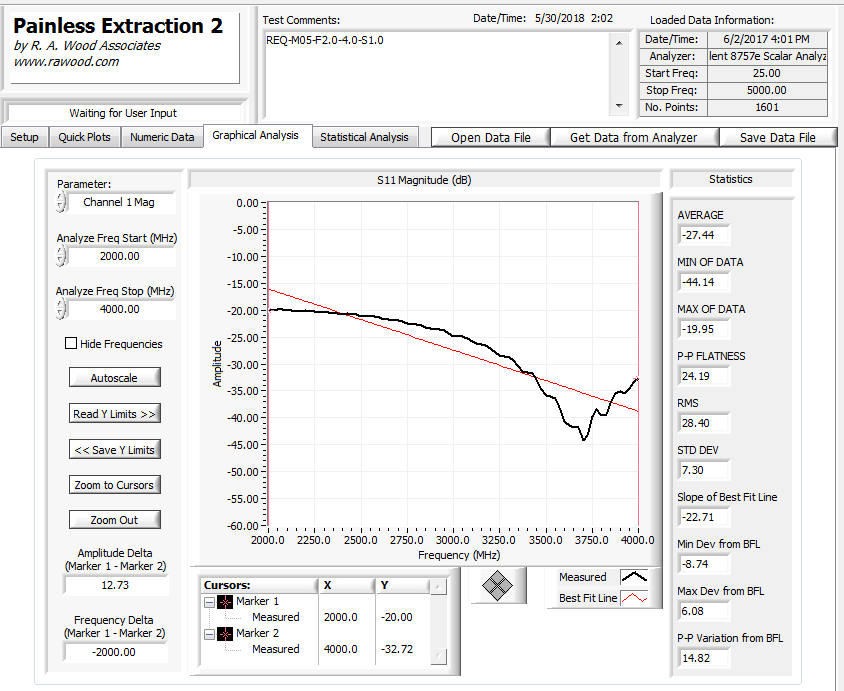

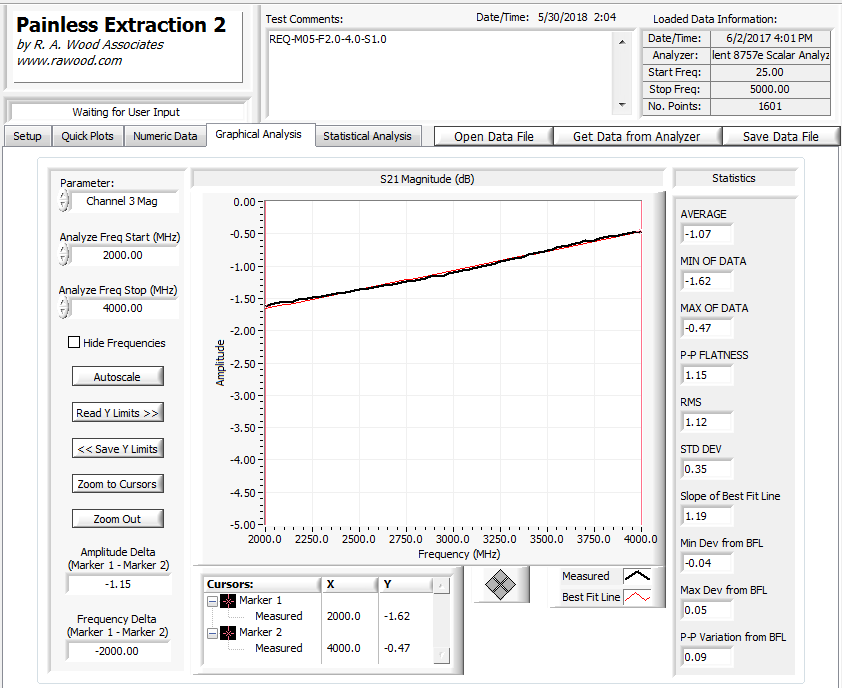

REQ-M05-F2.0-4.0-S1.0 M05 / M08 2.0 GHz 4.0 GHz 1.0 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-4.0-S2.0 M05 / M08 2.0 GHz 4.0 GHz 2.0 dB 0.8 dB Max S21 S11
Loss at High Freq
0.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-4.0-S2.5 M05 / M08 2.0 GHz 4.0 GHz 2.5 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-4.0-S4.0 M05 / M08 2.0 GHz 4.0 GHz 4.0 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11

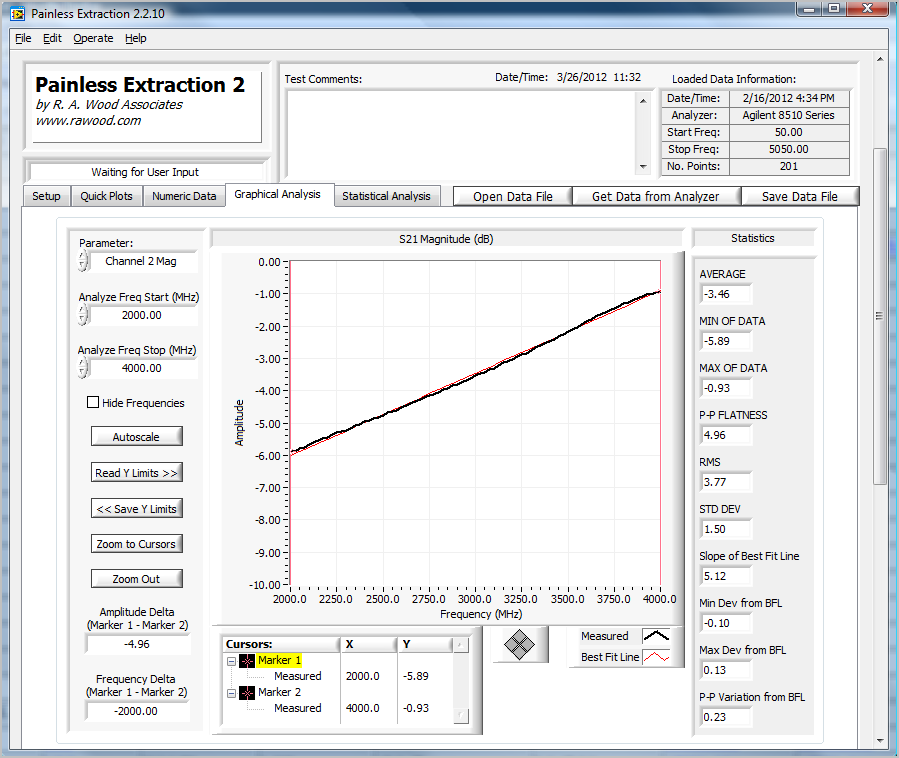

REQ-M05-F2.0-4.0-S5.0 M05 / M08 2.0 GHz 4.0 GHz 5.0 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11

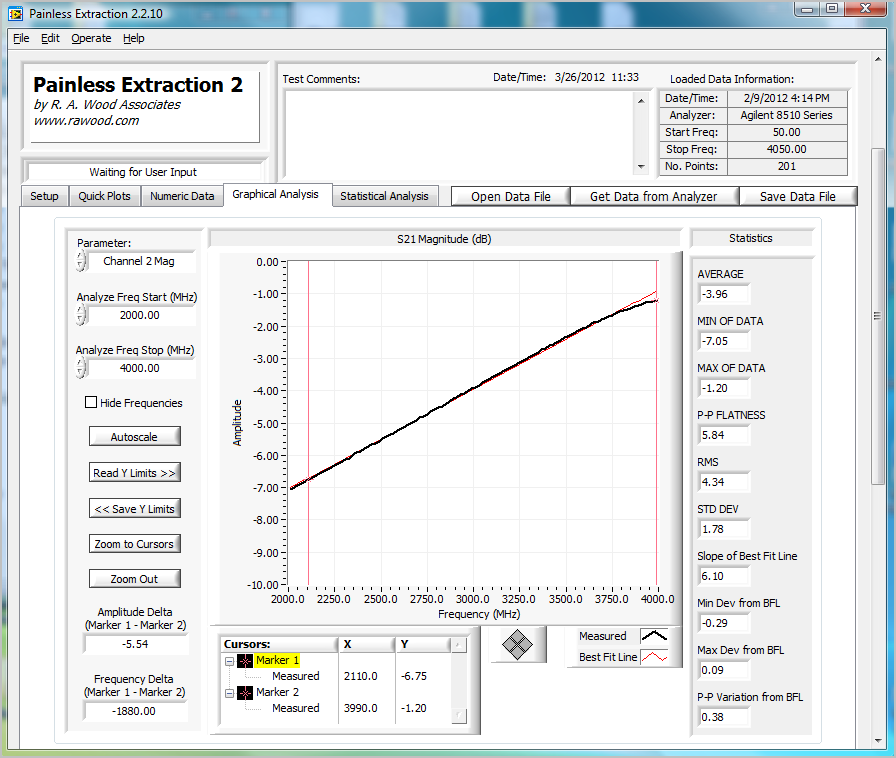

REQ-M05-F2.0-4.0-S6.0 M05 / M08 2.0 GHz 4.0 GHz 6.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-4.0-S8.0 M05 / M08 2.0 GHz 4.0 GHz 8.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

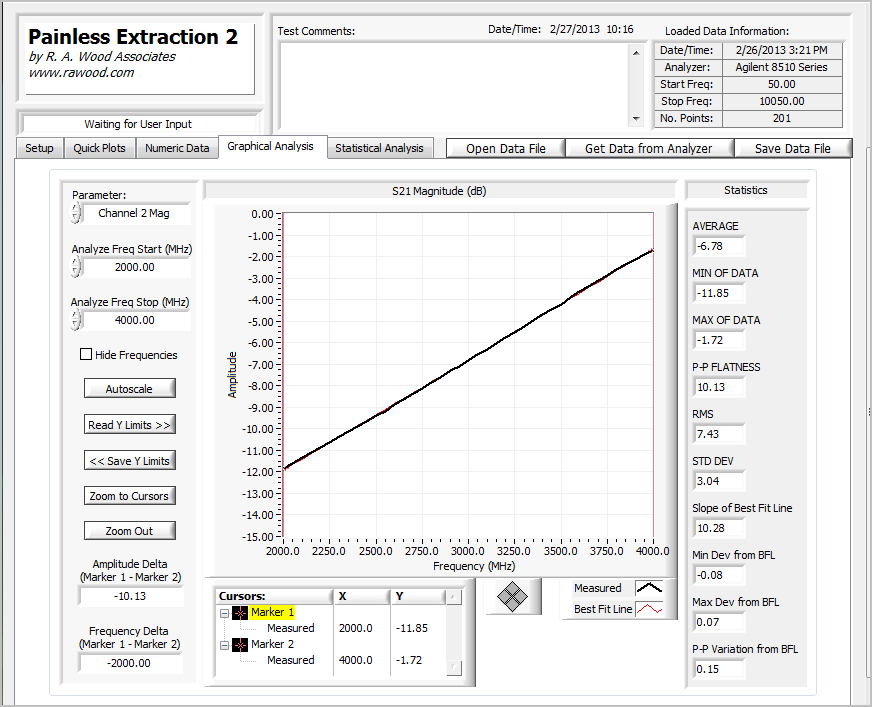

REQ-M05-F2.0-4.0-S10.0 M05 / M08 2.0 GHz 4.0 GHz 10.0 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-4.0-S14.0 M05 / M08 2.0 GHz 4.0 GHz 14.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

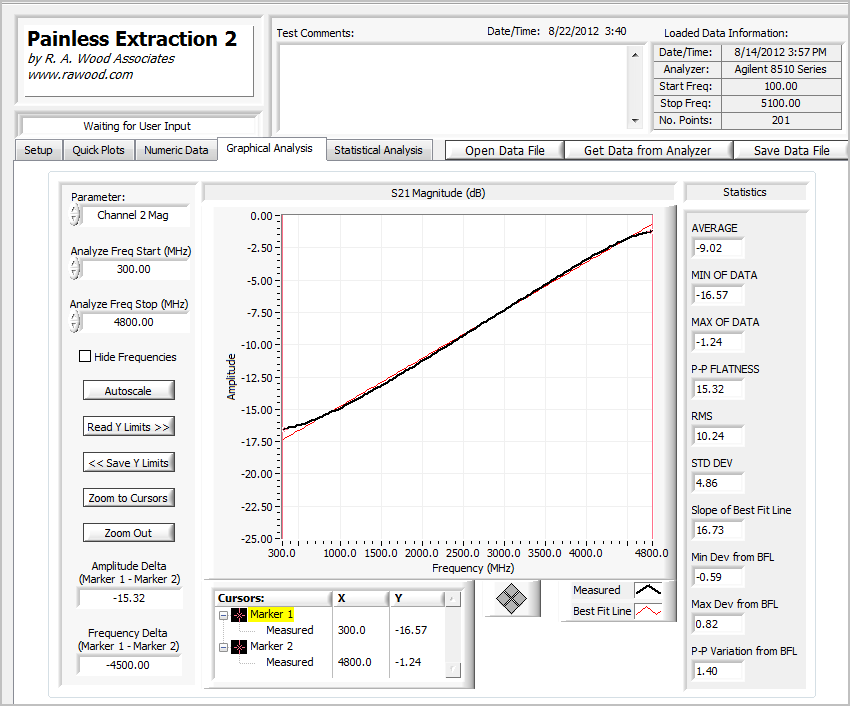

REQ-M05-F0.3-4.8-S16.0 M05 / M08 300 MHz 4.8 GHz 16.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

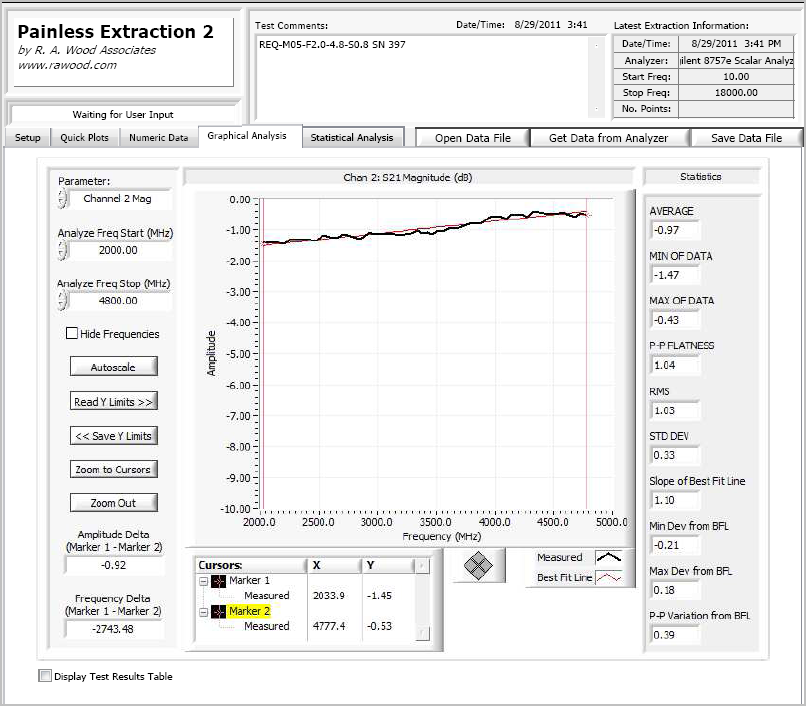

REQ-M05-F2.0-4.8-S0.8 M05 / M08 2.0 GHz 4.8 GHz 0.8 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-4.8-S10.0 M05 / M08 2.0 GHz 4.8 GHz 10.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

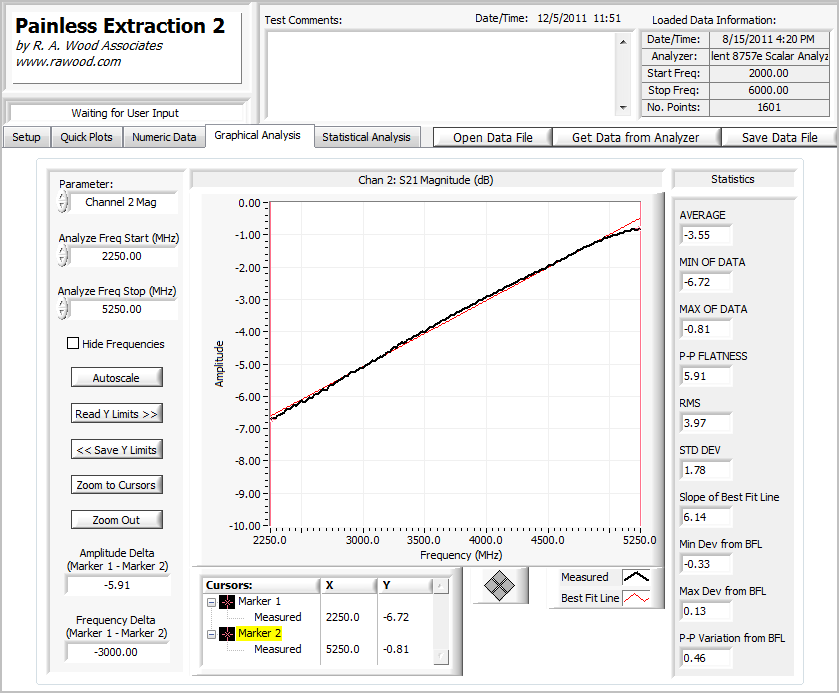

REQ-M05-F2.25-5.25-S6.0 M05 / M08 2.25 GHz 5.25 GHz 6.0 dB 1.0 dB Max S21 S11
Loss at High Freq
1.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-5.3-S8.5 M05 / M08 1.0 GHz 5.3 GHz 8.5 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11

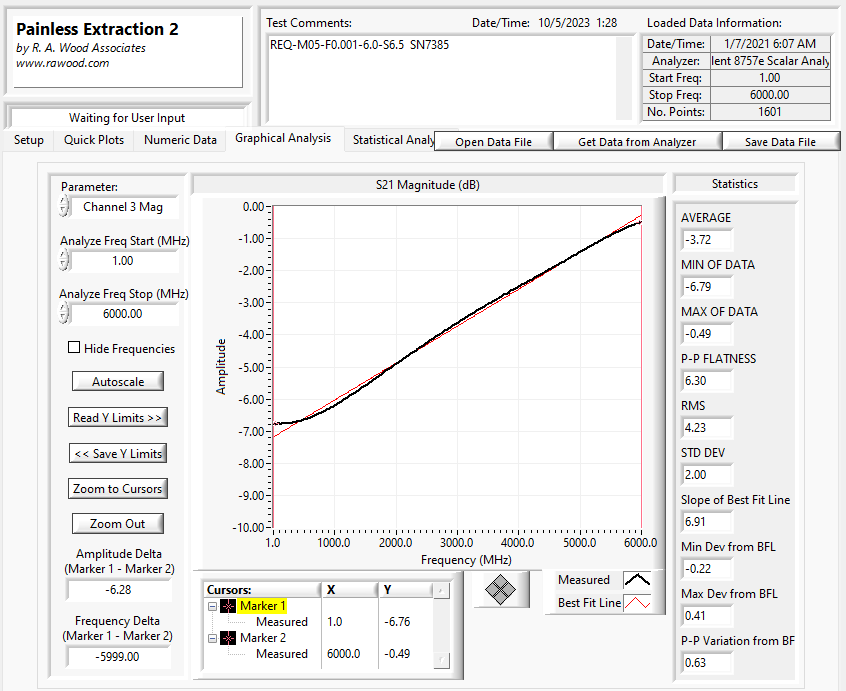

REQ-M05-F0.001-6.0-S6.5 M05 / M08 1 MHz 6.0 GHz 6.5 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.03-6.0-S5.5 M05 / M08 30 MHz 6.0 GHz 5.5 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

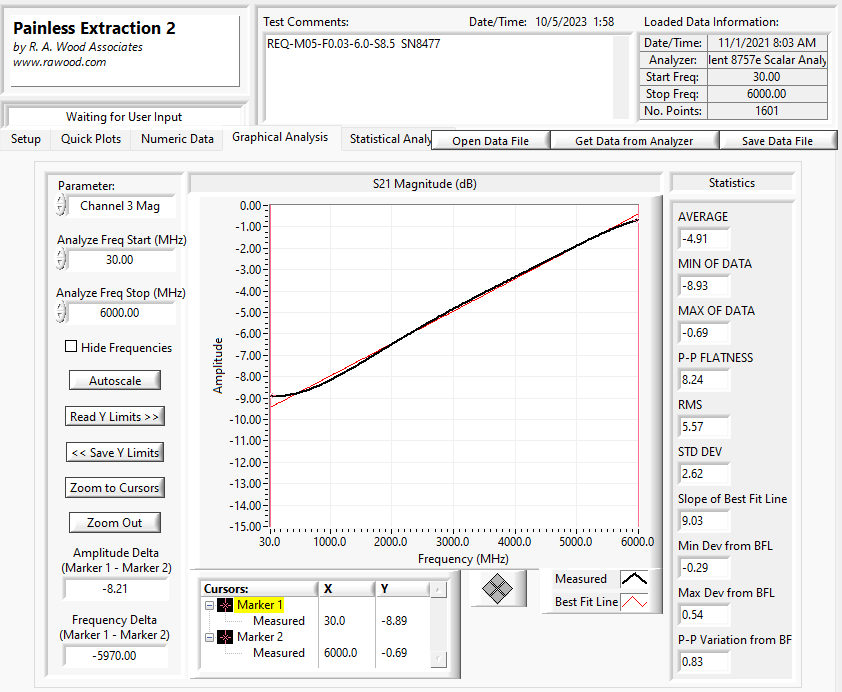

REQ-M05-F0.03-6.0-S8.5 M05 / M08 30 MHz 6.0 GHz 8.5 dB 0.9 dB Max S21 S11
Loss at High Freq
0.9 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-6.0-S14.0 M05 / M08 500 MHz 6.0 GHz 14.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-6.0-S4.0 M05 / M08 2.0 GHz 6.0 GHz 4.0 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.875-6.875-S1.0 M05 / M08 2.875 GHz 6.875 GHz 1.0 dB 1.1 dB Max S21 S11
Loss at High Freq
1.1 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.875-6.875-S2.0 M05 / M08 2.875 GHz 6.875 GHz 2.0 dB 0.8 dB Max S21 S11
Loss at High Freq
0.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.875-6.875-S3.0 M05 / M08 2.875 GHz 6.875 GHz 3.0 dB 1.1 dB Max S21 S11
Loss at High Freq
1.1 dB Max
Package Style
M05 / M08
Data
S21 / S11

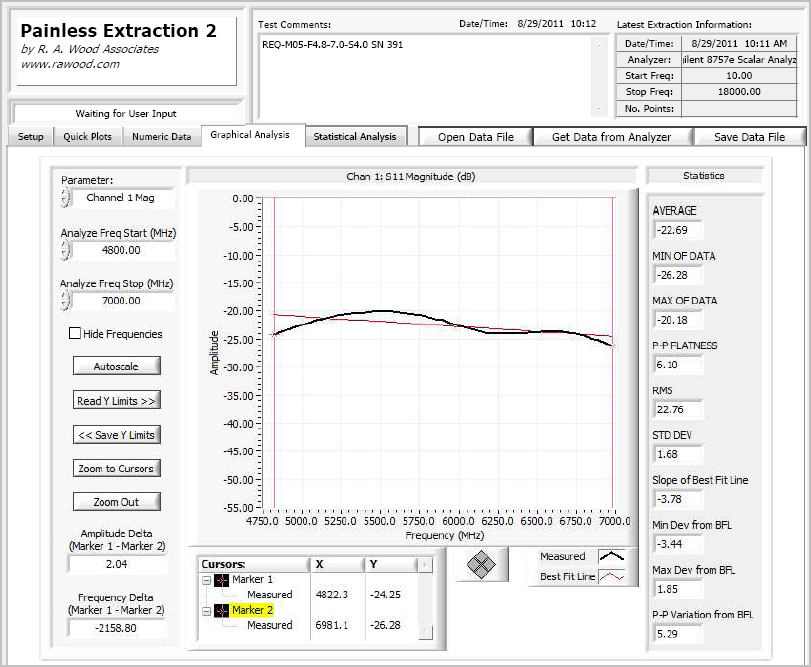

REQ-M05-F4.8-7.0-S4.0 M05 / M08 4.8 GHz 7.0 GHz 4.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

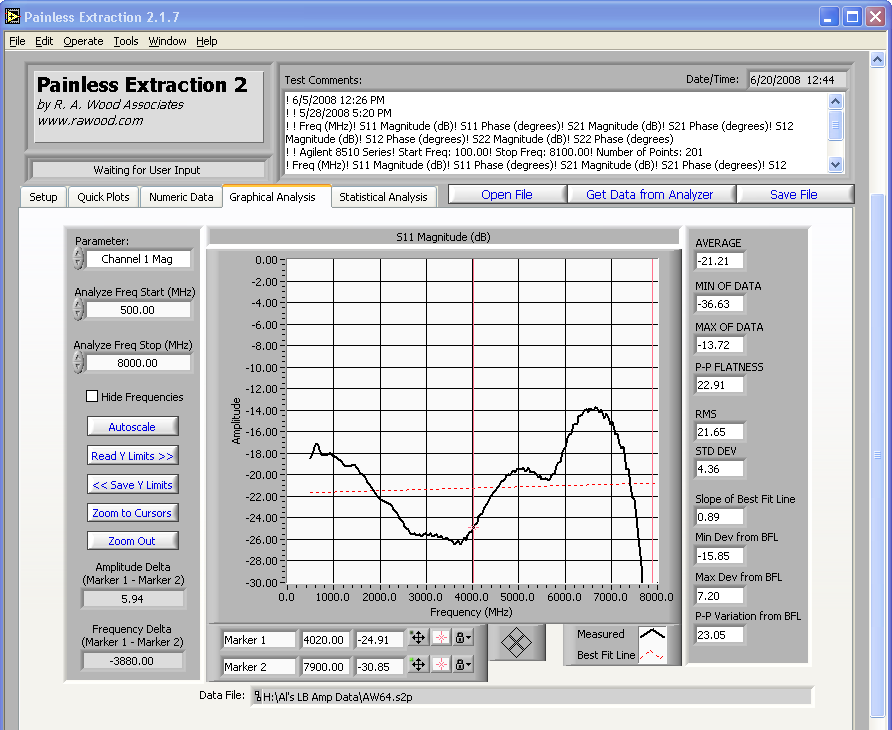

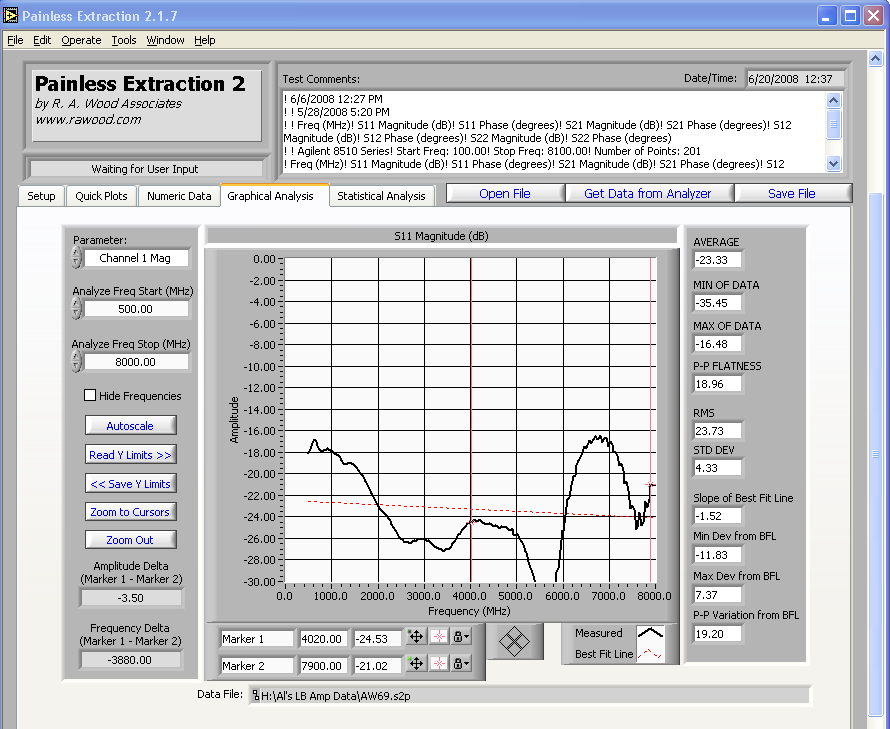

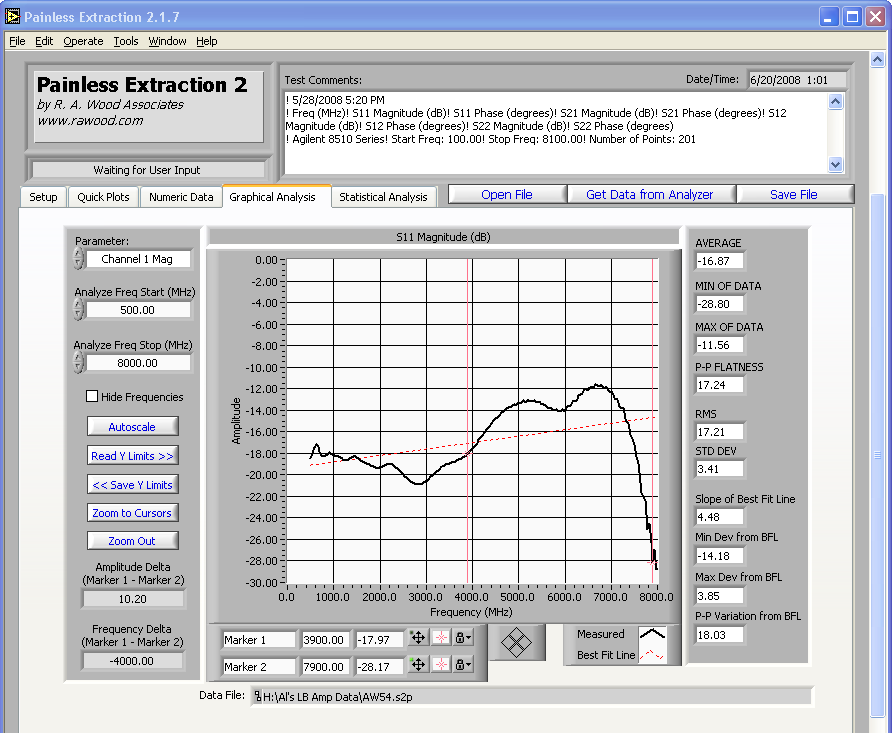

REQ-M05-F0.5-8.0-S12.0 M05 / M08 500 MHz 8.0 GHz 12.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-8.0-S13.0 M05 / M08 500 MHz 8.0 GHz 13.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

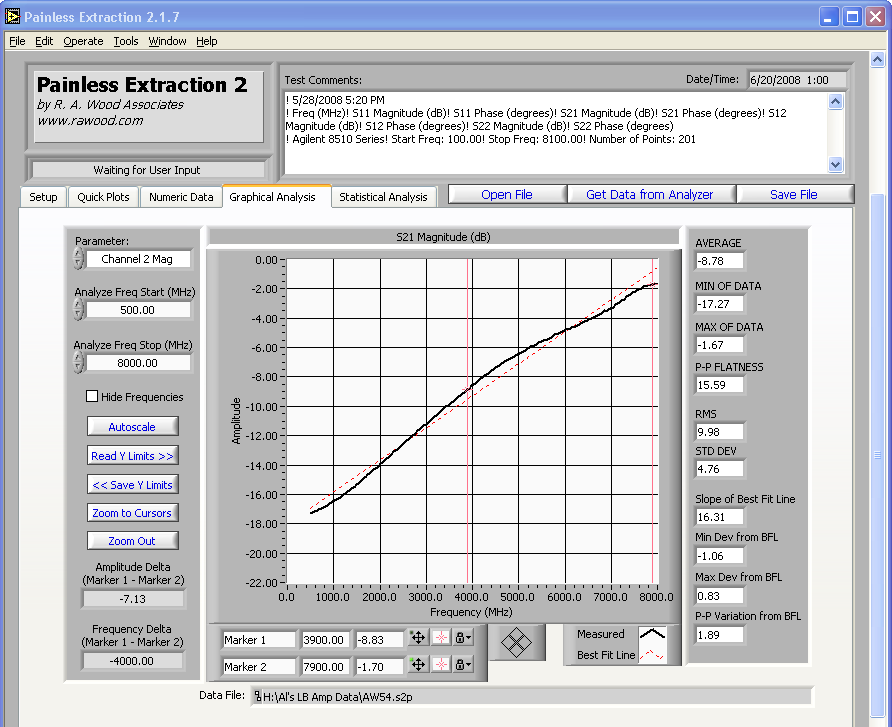

REQ-M05-F0.5-8.0-S15.5 M05 / M08 500 MHz 8.0 GHz 15.5 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-8.0-S15.5-HL M05 / M08 500 MHz 8.0 GHz 15.5 dB 2.2 dB Max S21 S11
Loss at High Freq
2.2 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-8.0-S16.5 M05 / M08 500 MHz 8.0 GHz 16.5 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-8.0-S17.0 M05 / M08 500 MHz 8.0 GHz 17.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-8.0-S21.0 M05 / M08 500 MHz 8.0 GHz 21.0 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11

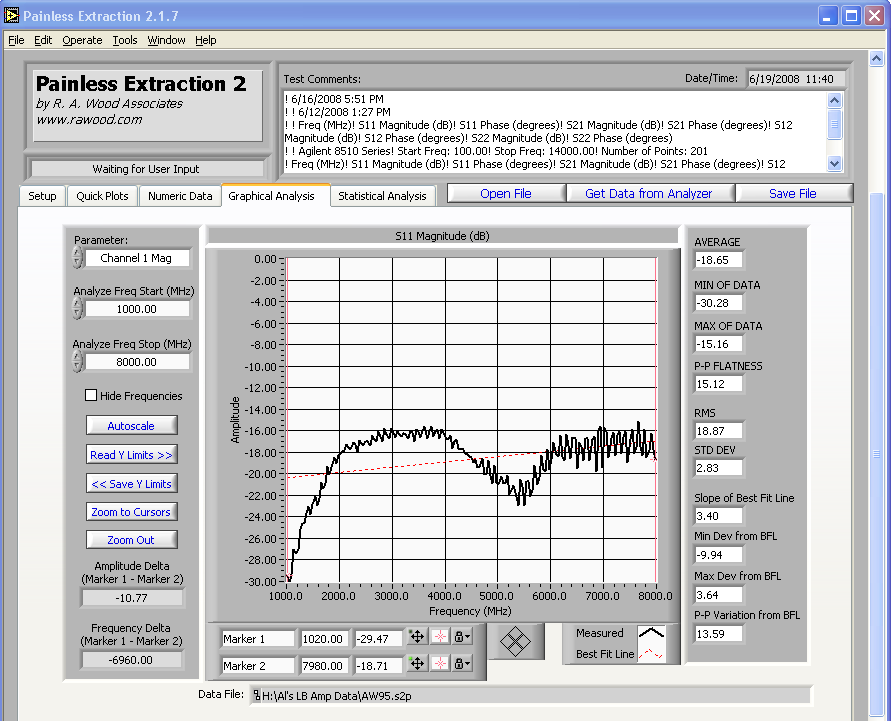

REQ-M05-F1.0-8.0-S2.0 M05 / M08 1.0 GHz 8.0 GHz 2.0 dB 1.0 dB Max S21 S11
Loss at High Freq
1.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-8.0-S3.0 M05 / M08 1.0 GHz 8.0 GHz 3.0 dB 1.0 dB Max S21 S11
Loss at High Freq
1.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-8.0-S5.0 M05 / M08 1.0 GHz 8.0 GHz 5.0 dB 1.1 dB Max S21 S11
Loss at High Freq
1.1 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-8.0-S7.0 M05 / M08 1.0 GHz 8.0 GHz 7.0 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11

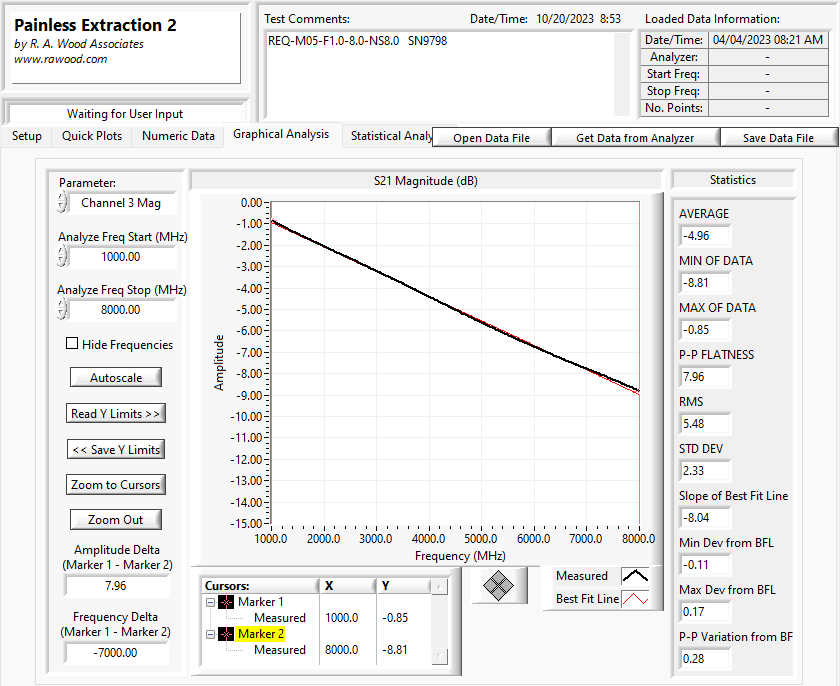

REQ-M05-F1.0-8.0-S-8.0 M05 / M08 1.0 GHz 8.0 GHz -8.0 dB 1.1 dB Max* Low Freq. S21 S11
Loss at High Freq
1.1 dB Max* Low Freq.
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-8.0-S12.0 M05 / M08 1.0 GHz 8.0 GHz 12.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-8.0-S15.0 M05 / M08 1.0 GHz 8.0 GHz 15.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-8.0-S16.0 M05 / M08 1.0 GHz 8.0 GHz 16.0 dB 2.1 dB Max S21 S11
Loss at High Freq
2.1 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-8.0-S18.0 M05 / M08 1.0 GHz 8.0 GHz 18.0 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-8.0-S19.0 M05 / M08 1.0 GHz 8.0 GHz 19.0 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-8.0-S20.0 M05 / M08 1.0 GHz 8.0 GHz 20.0 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11

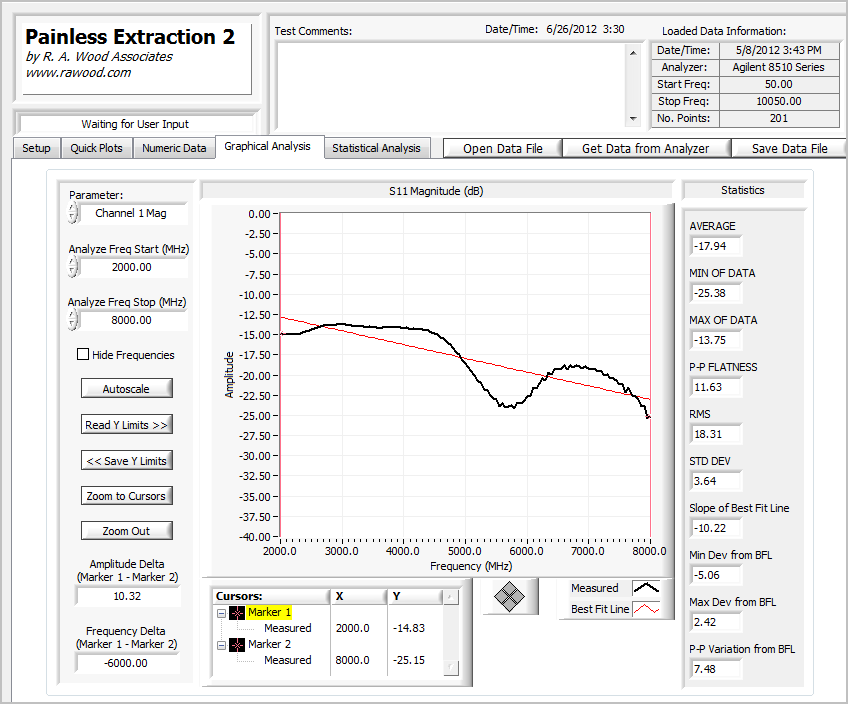

REQ-M05-F2.0-8.0-S2.5 M05 / M08 2.0 GHz 8.0 GHz 2.5 dB 1.0 dB Max S21 S11
Loss at High Freq
1.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-8.0-S6.5 M05 / M08 2.0 GHz 8.0 GHz 6.5 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-8.0-S9.0 M05 / M08 2.0 GHz 8.0 GHz 9.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

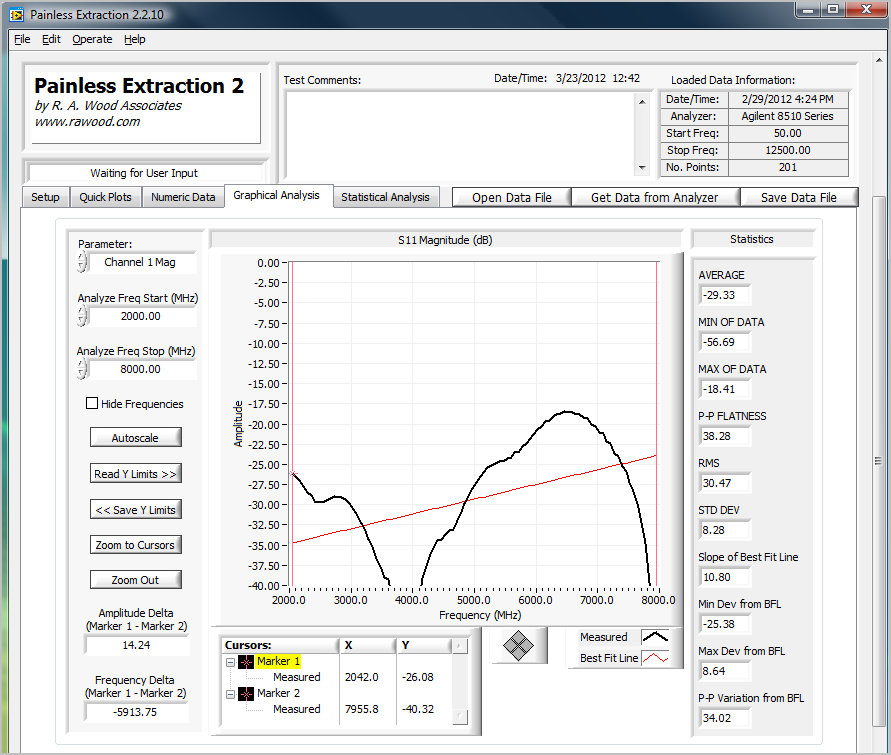

REQ-M05-F2.0-8.0-S11.0 M05 / M08 2.0 GHz 8.0 GHz 11.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-8.0-S12.0 M05 / M08 2.0 GHz 8.0 GHz 12.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-8.0-S15.0 M05 / M08 2.0 GHz 8.0 GHz 15.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11

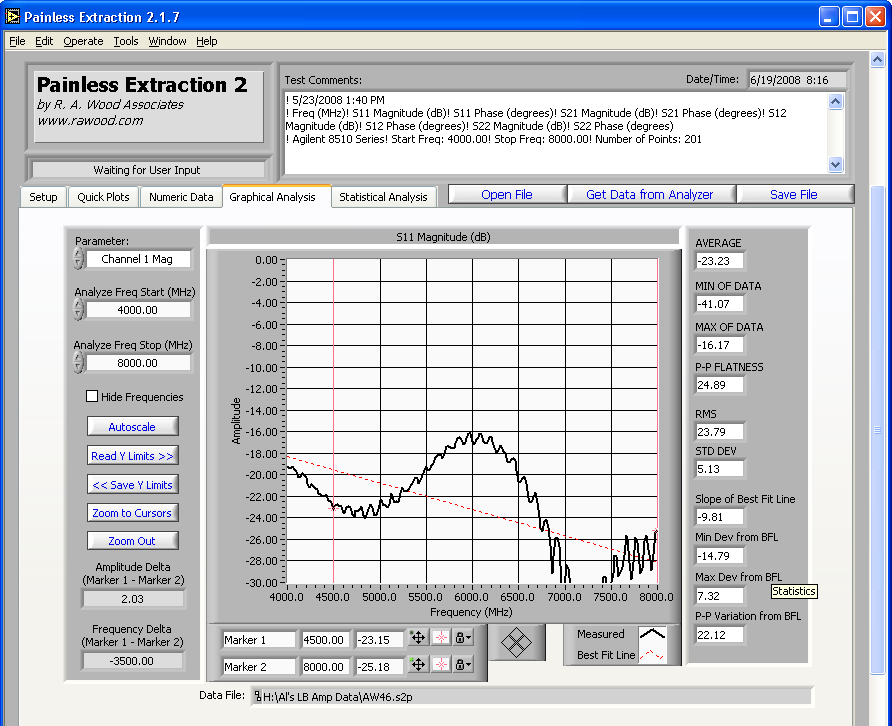

REQ-M05-F4.0-8.0-S1.0 M05 / M08 4.0 GHz 8.0 GHz 1.0 dB 0.9 dB Max S21 S11
Loss at High Freq
0.9 dB Max
Package Style
M05 / M08
Data
S21 / S11

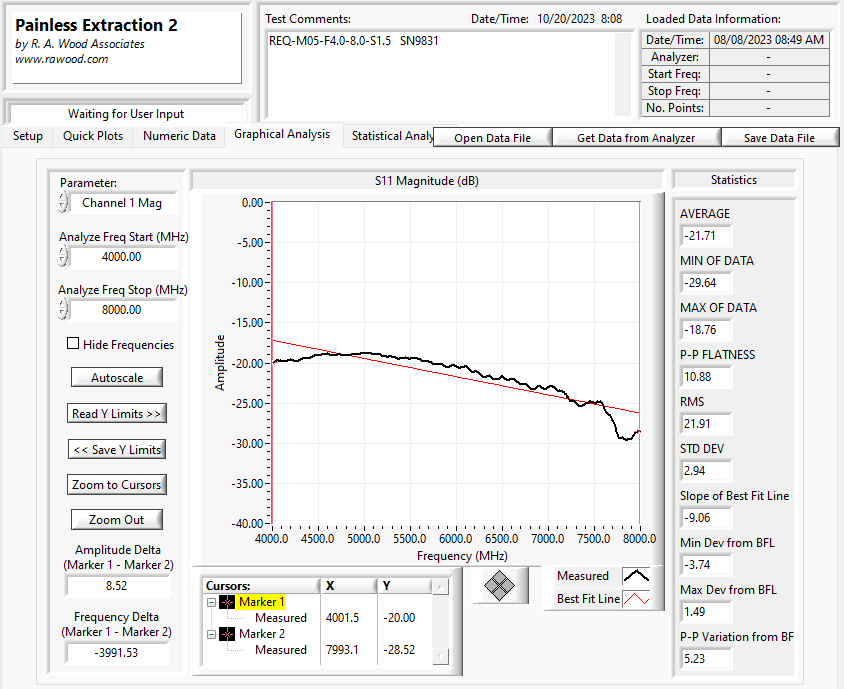

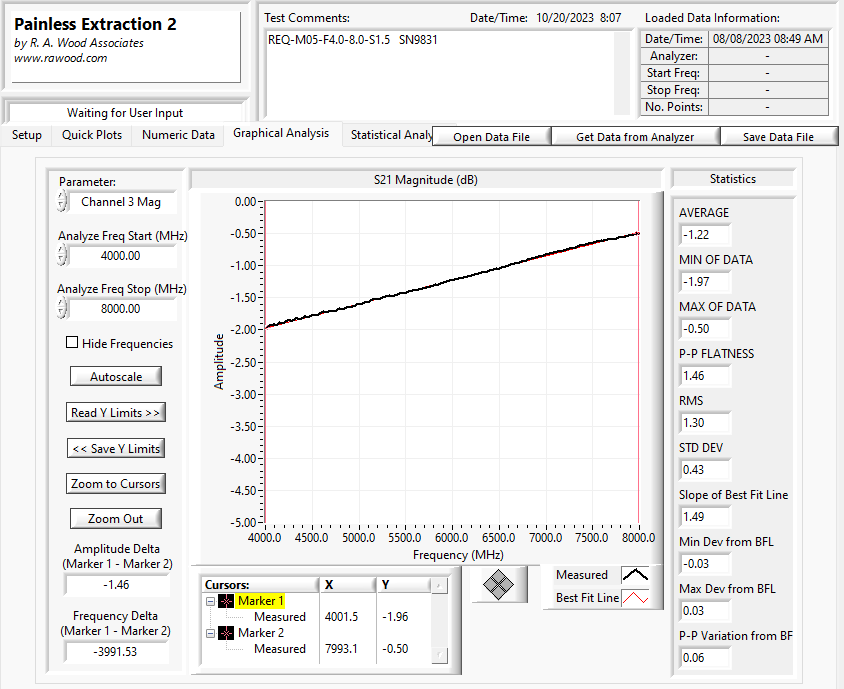

REQ-M05-F4.0-8.0-S1.5 M05 / M08 4.0 GHz 8.0 GHz 1.5 dB 0.7 dB Max S21 S11
Loss at High Freq
0.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-8.0-S2.0 M05 / M08 4.0 GHz 8.0 GHz 2.0 dB 0.8 dB Max S21 S11
Loss at High Freq
0.8 dB Max
Package Style
M05 / M08
Data
S21 / S11

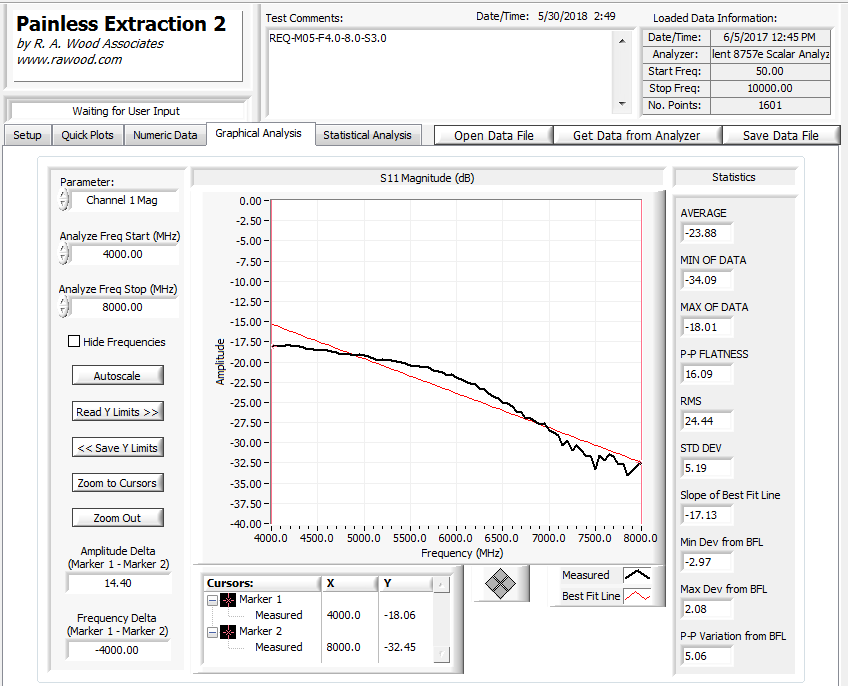

REQ-M05-F4.0-8.0-S3.0 M05 / M08 4.0 GHz 8.0 GHz 3.0 dB 1.0 dB Max S21 S11
Loss at High Freq
1.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-8.0-S4.0 M05 / M08 4.0 GHz 8.0 GHz 4.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

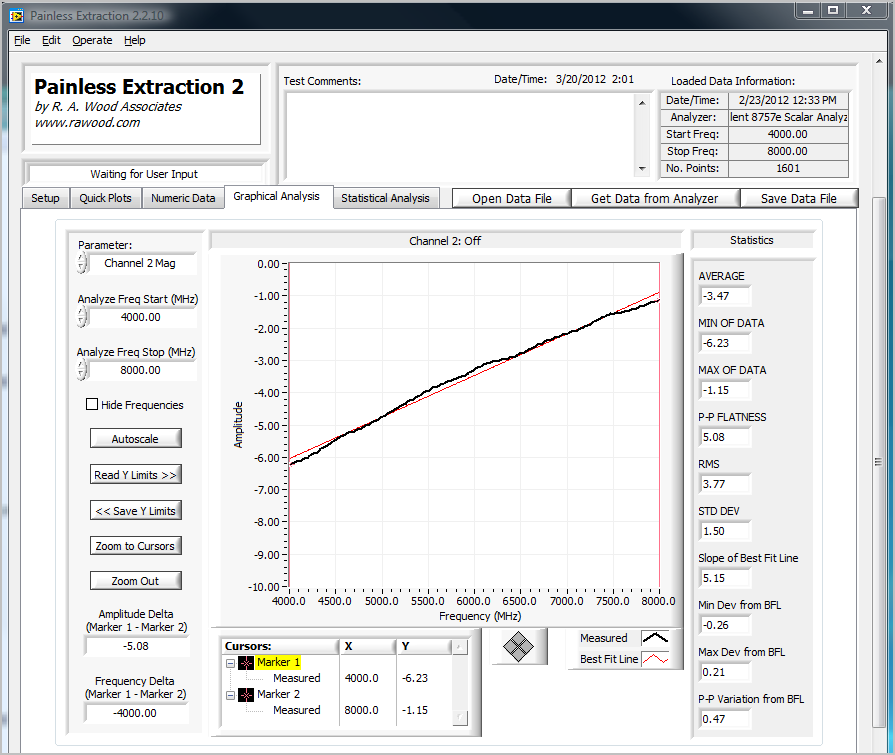

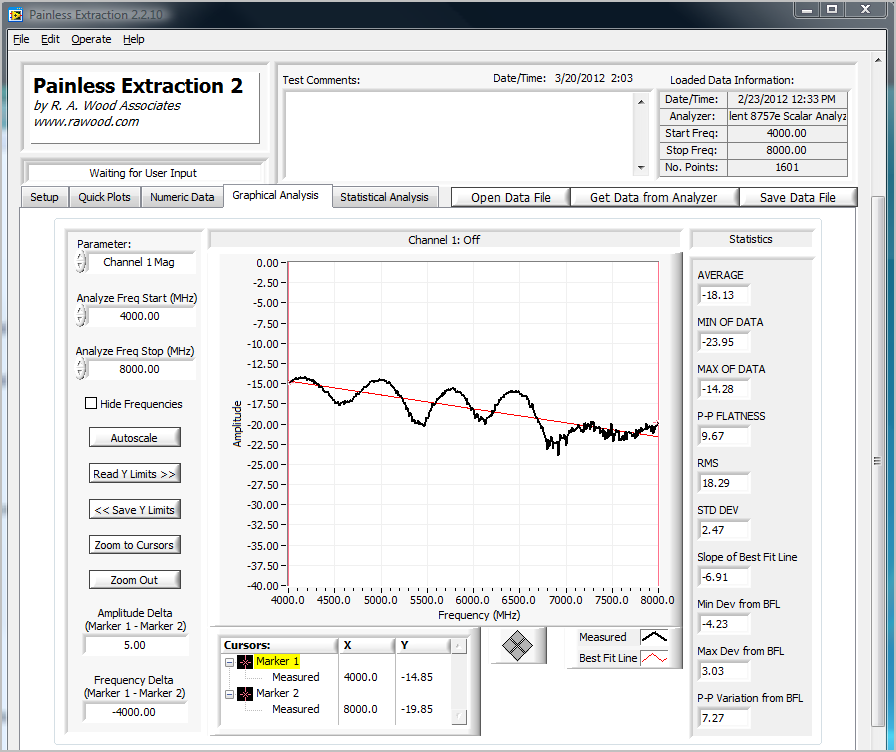

REQ-M05-F4.0-8.0-S5.2 M05 / M08 4.0 GHz 8.0 GHz 5.2 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-8.0-S5.5 M05 / M08 4.0 GHz 8.0 GHz 5.5 dB 0.9 dB Max S21 S11
Loss at High Freq
0.9 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-8.0-S6.0 M05 / M08 4.0 GHz 8.0 GHz 6.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-8.0-S6.4 M05 / M08 4.0 GHz 8.0 GHz 6.4 dB 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11

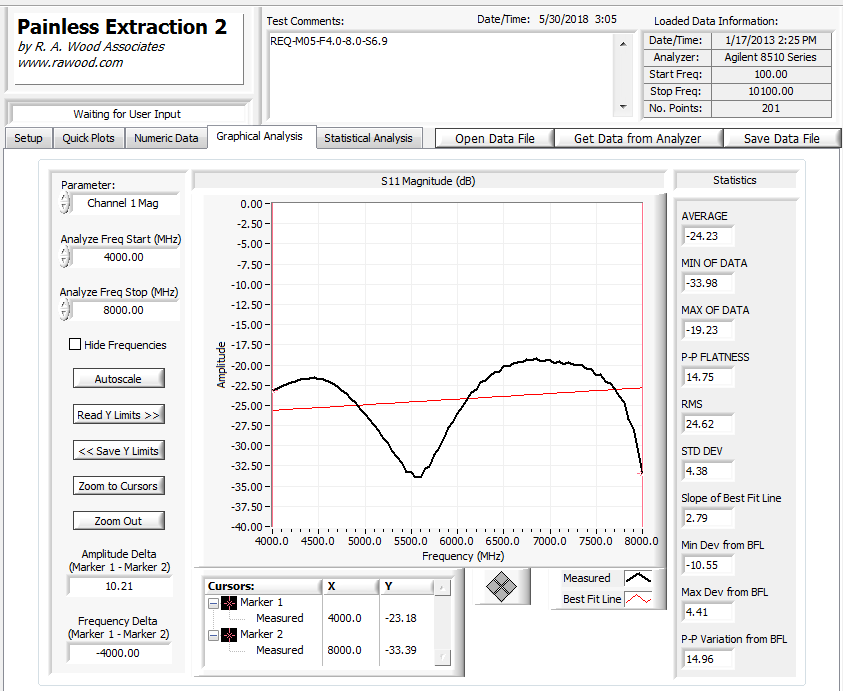

REQ-M05-F4.0-8.0-S6.9 M05 / M08 4.0 GHz 8.0 GHz 6.9 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11

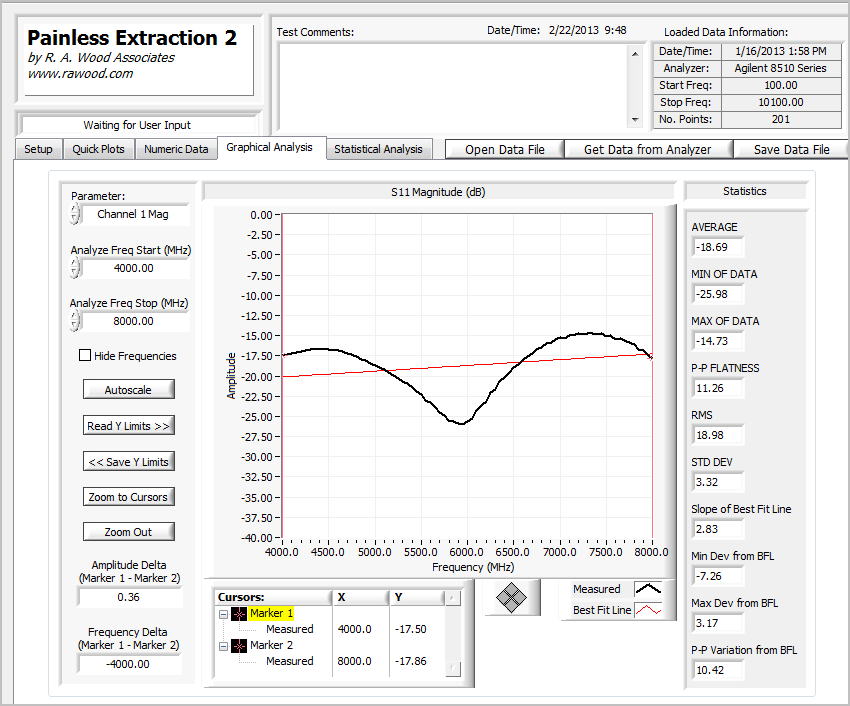

REQ-M05-F4.0-8.0-S8.0 M05 / M08 4.0 GHz 8.0 GHz 8.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

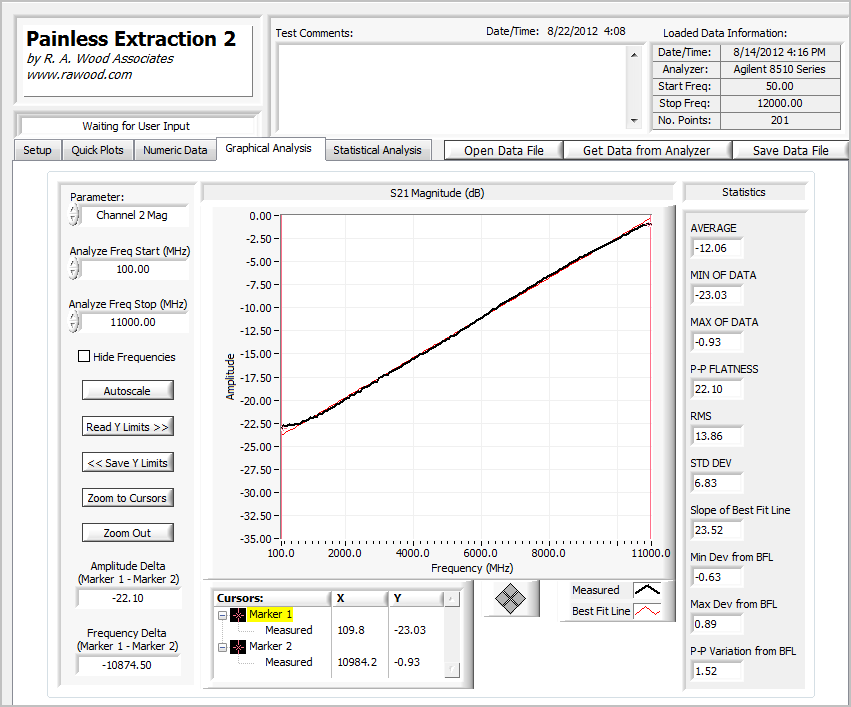

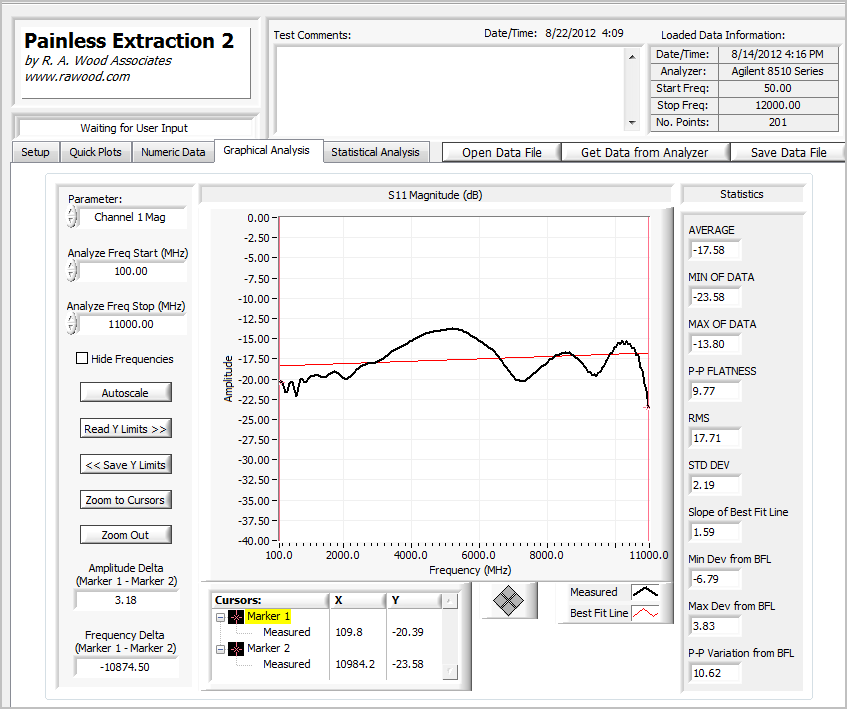

REQ-M05-F0.1-11.0-S22.5 M05 / M08 100 MHz 11.0 GHz 22.5 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F7.5-11.0-S6.2 M05 / M08 7.5 GHz 11.0 GHz 6.2 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F7.5-11.0-S6.8 M05 / M08 7.5 GHz 11.0 GHz 6.8 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F7.5-11.0-S8.0 M05 / M08 7.5 GHz 11.0 GHz 8.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F7.0-11.5-S2.9 M05 / M08 7.0 GHz 11.5 GHz 2.9 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

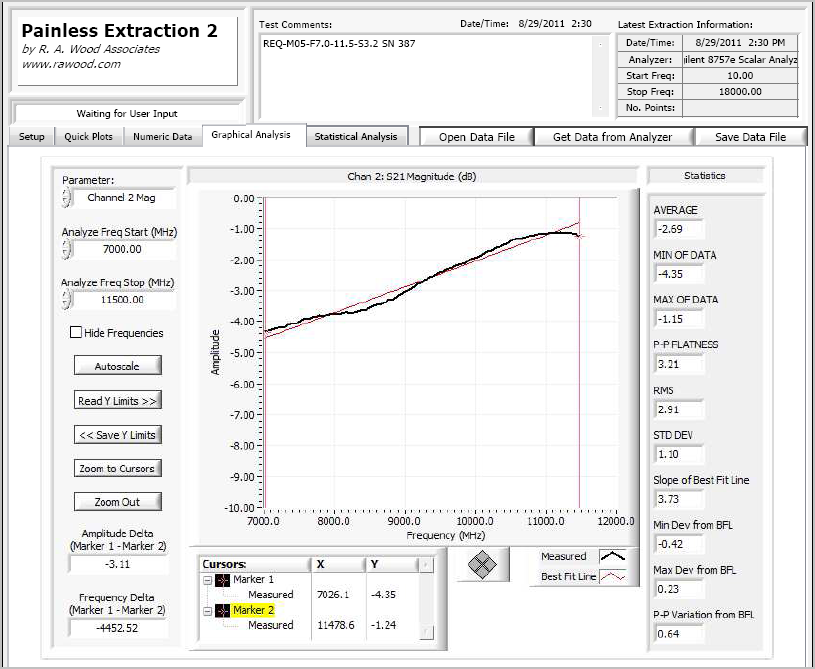

REQ-M05-F7.0-11.5-S3.2 M05 / M08 7.0 GHz 11.5 GHz 3.2 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F7.0-11.5-S5.0 M05 / M08 7.0 GHz 11.5 GHz 5.0 dB 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-12.0-S5.0 M05 / M08 2.0 GHz 12.0 GHz 5.0 dB 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-12.0-S7.0 M05 / M08 2.0 GHz 12.0 GHz 7.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

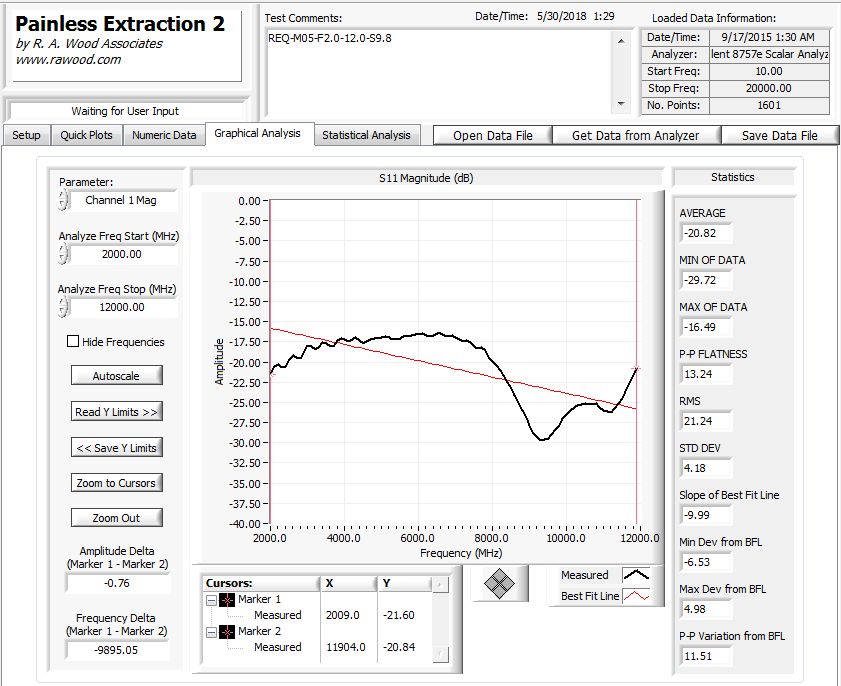

REQ-M05-F2.0-12.0-S9.8 M05 / M08 2.0 GHz 12.0 GHz 9.8 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11

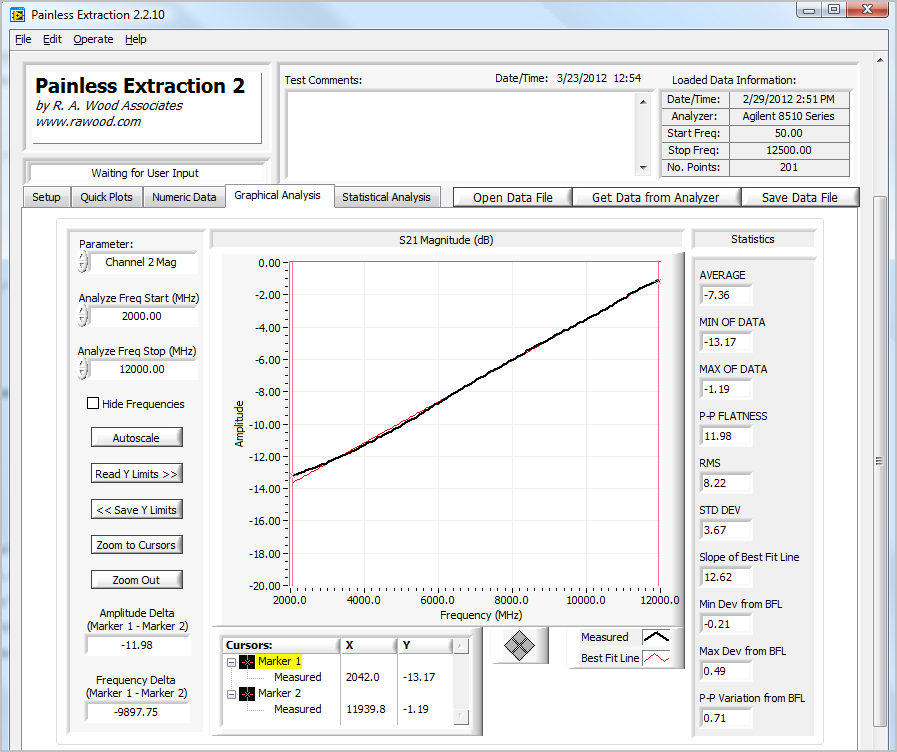

REQ-M05-F2.0-12.0-S12.0 M05 / M08 2.0 GHz 12.0 GHz 12.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-12.0-S22.5 M05 / M08 2.0 GHz 12.0 GHz 22.5 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-12.0-S6.0 M05 / M08 4.0 GHz 12.0 GHz 6.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-12.0-S8.0 M05 / M08 4.0 GHz 12.0 GHz 8.0 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-12.0-S10.0 M05 / M08 4.0 GHz 12.0 GHz 10.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-12.0-S14.5 M05 / M08 4.0 GHz 12.0 GHz 14.5 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

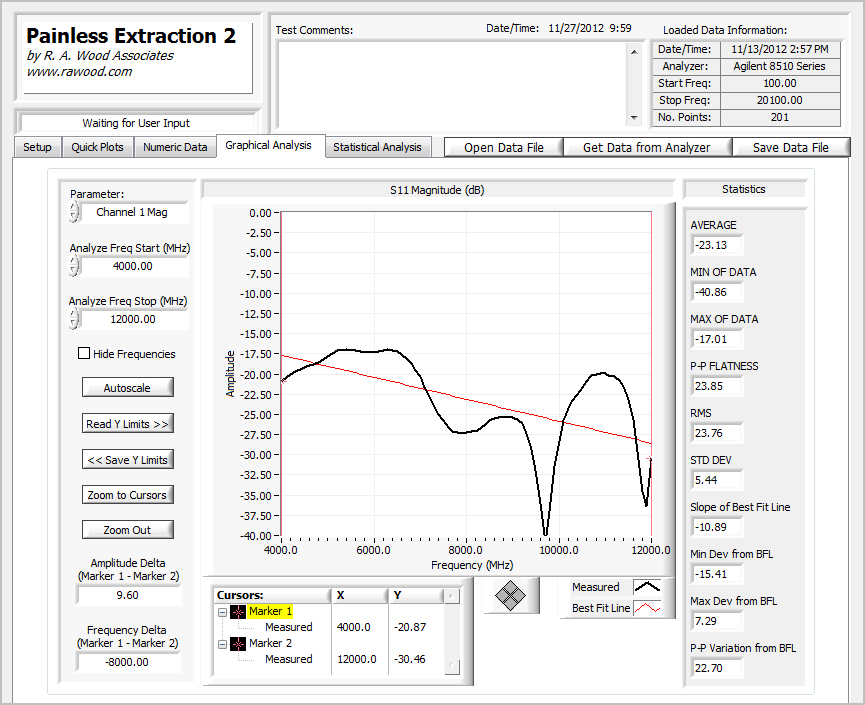

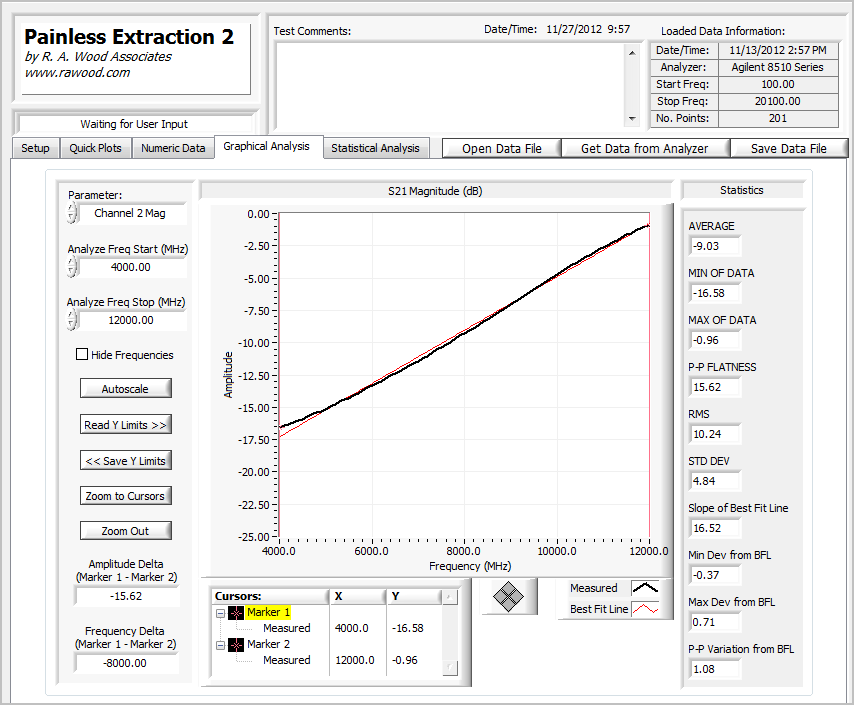

REQ-M05-F4.0-12.0-S16.0 M05 / M08 4.0 GHz 12.0 GHz 16.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-12.0-S17.0 M05 / M08 4.0 GHz 12.0 GHz 17.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-12.0-S18.5 M05 / M08 4.0 GHz 12.0 GHz 18.5 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F6.0-12.0-S4.0 M05 / M08 6.0 GHz 12.0 GHz 4.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

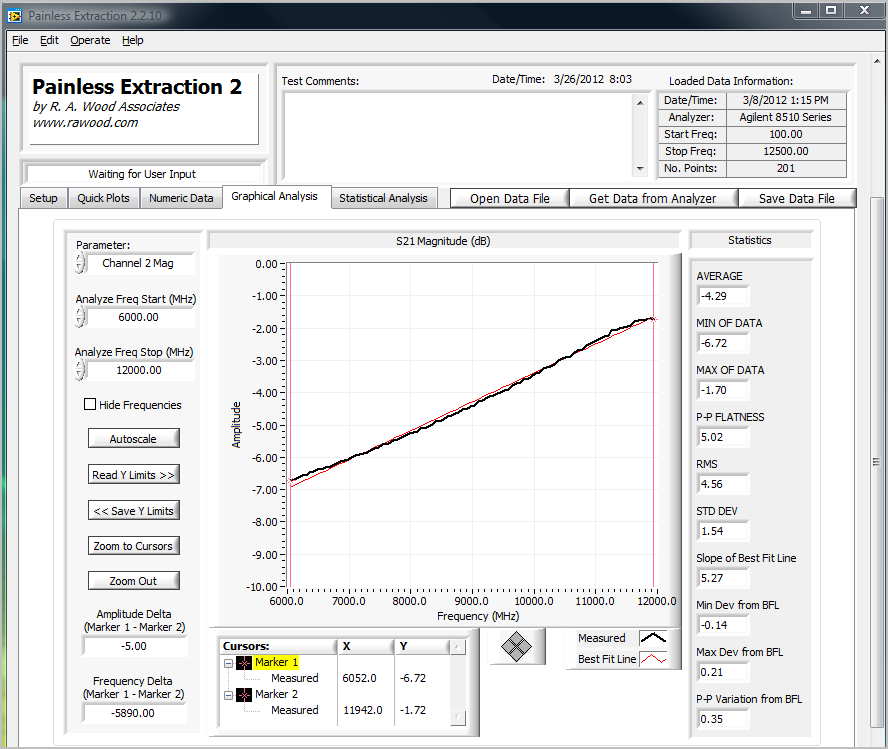

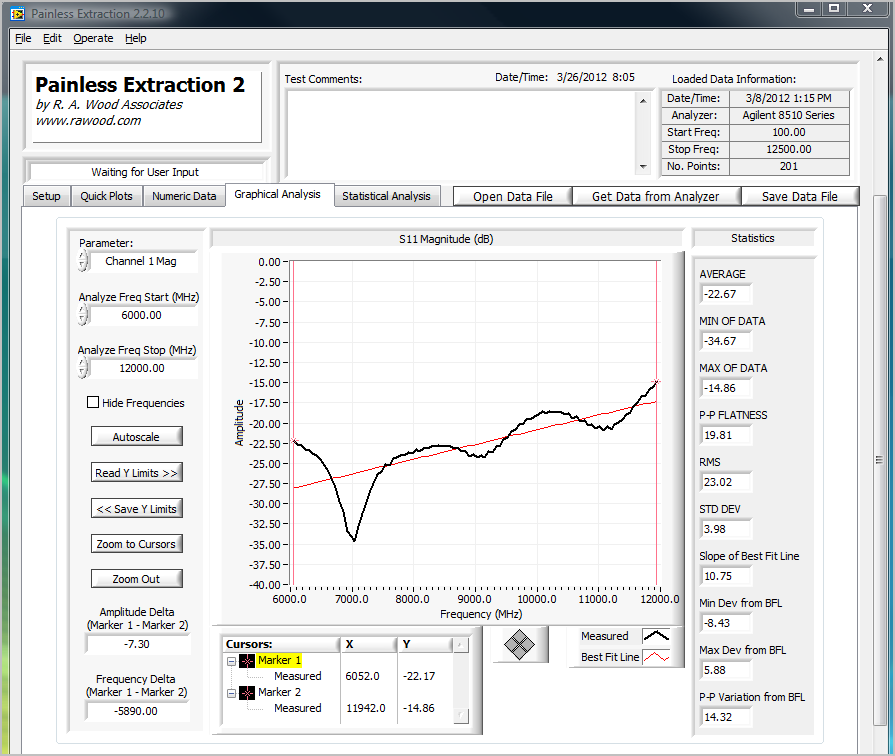

REQ-M05-F6.0-12.0-S5.0 M05 / M08 6.0 GHz 12.0 GHz 5.0 dB 2.1 dB Max S21 S11
Loss at High Freq
2.1 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F6.0-12.0-S6.0 M05 / M08 6.0 GHz 12.0 GHz 6.0 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11

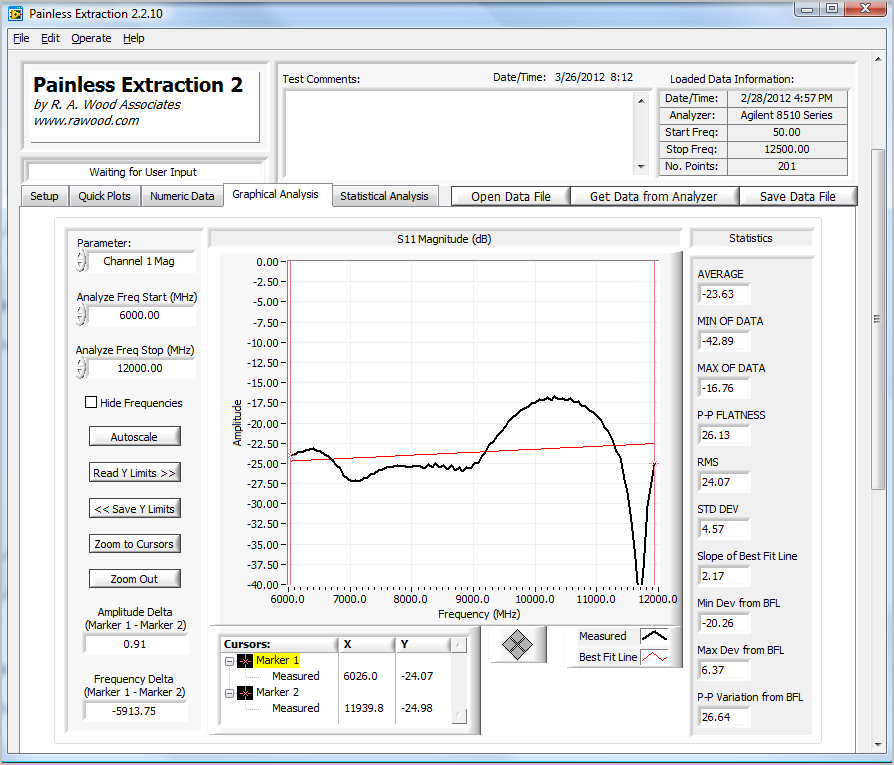

REQ-M05-F6.0-12.0-S8.0 M05 / M08 6.0 GHz 12.0 GHz 8.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F6.0-12.0-S11.5 M05 / M08 6.0 GHz 12.0 GHz 11.5 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F6.0-12.0-S12.5 M05 / M08 6.0 GHz 12.0 GHz 12.5 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

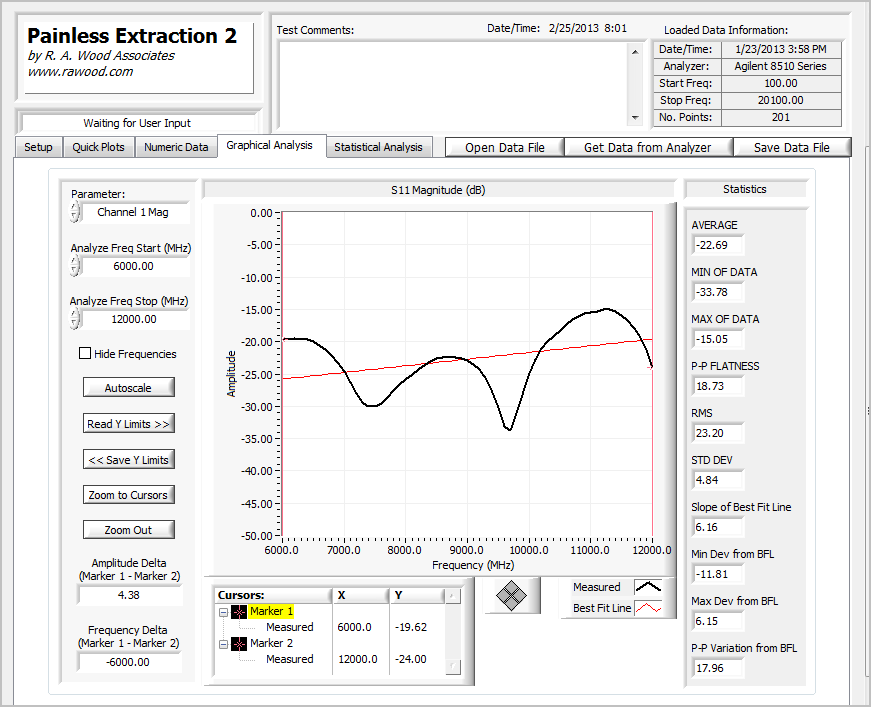

REQ-M05-F6.0-12.0-S13.0 M05 / M08 6.0 GHz 12.0 GHz 13.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

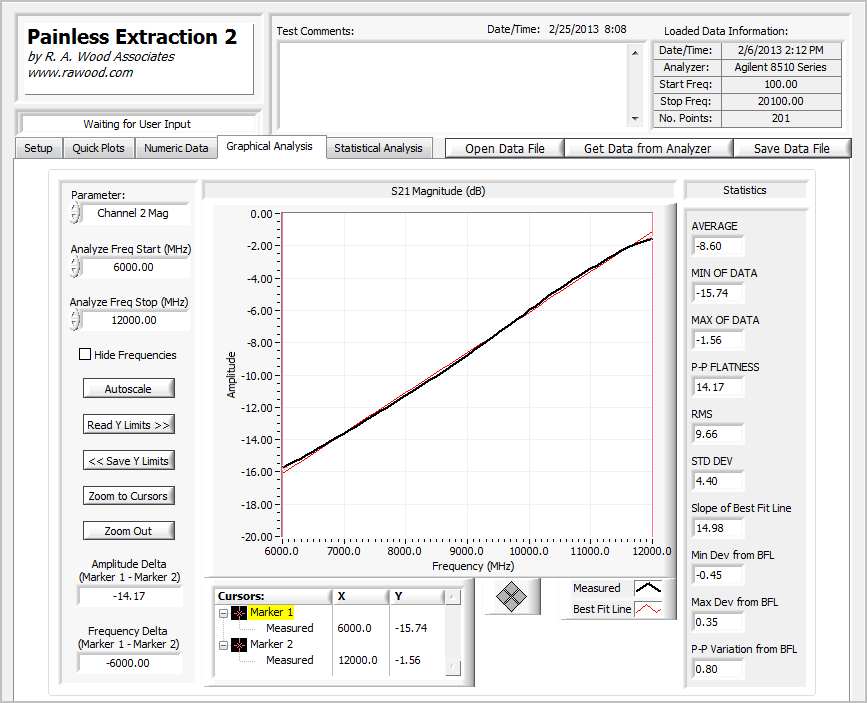

REQ-M05-F6.0-12.0-S14.5 M05 / M08 6.0 GHz 12.0 GHz 14.5 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11

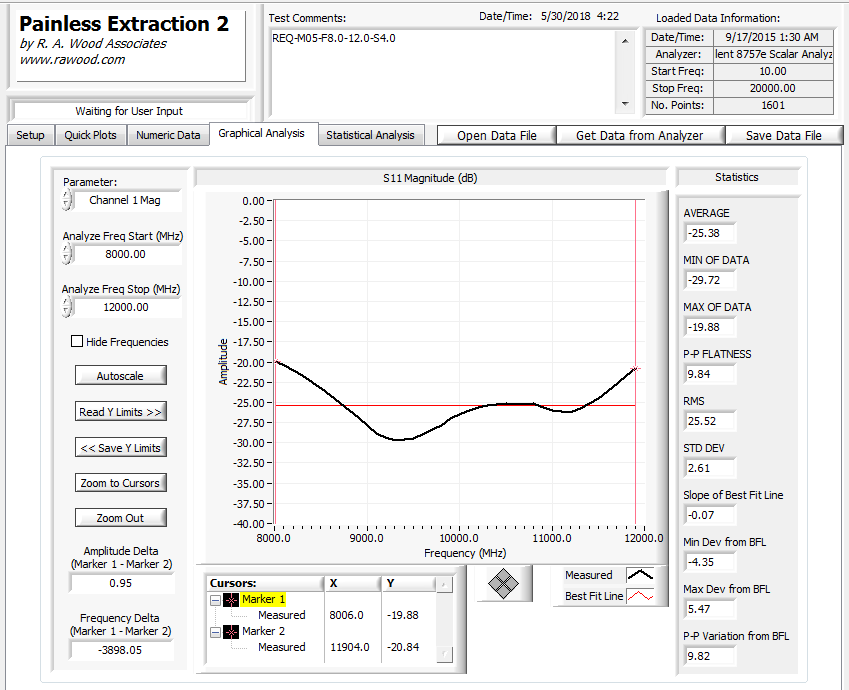

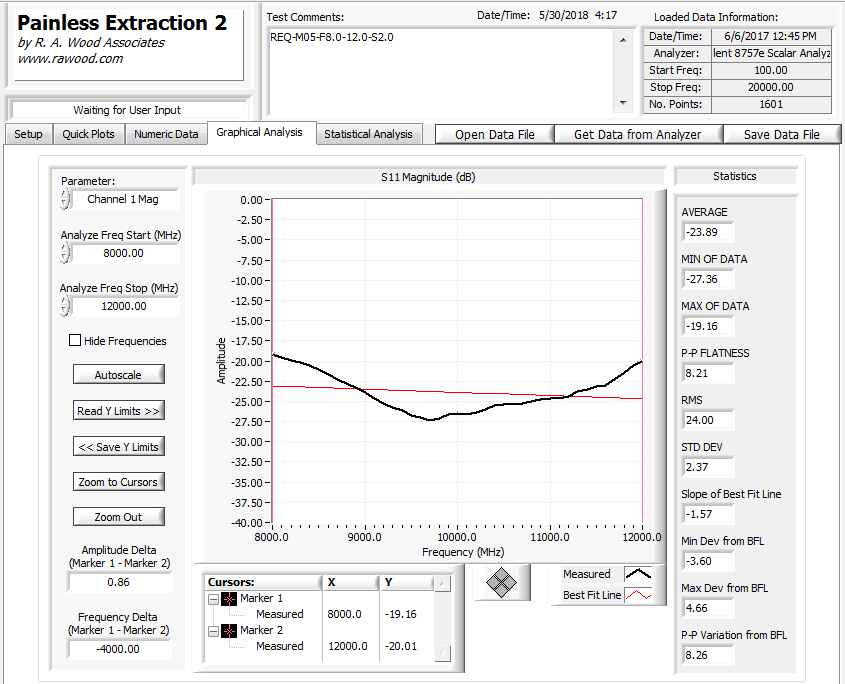

REQ-M05-F8.0-12.0-S2.0 M05 / M08 8.0 GHz 12.0 GHz 2.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

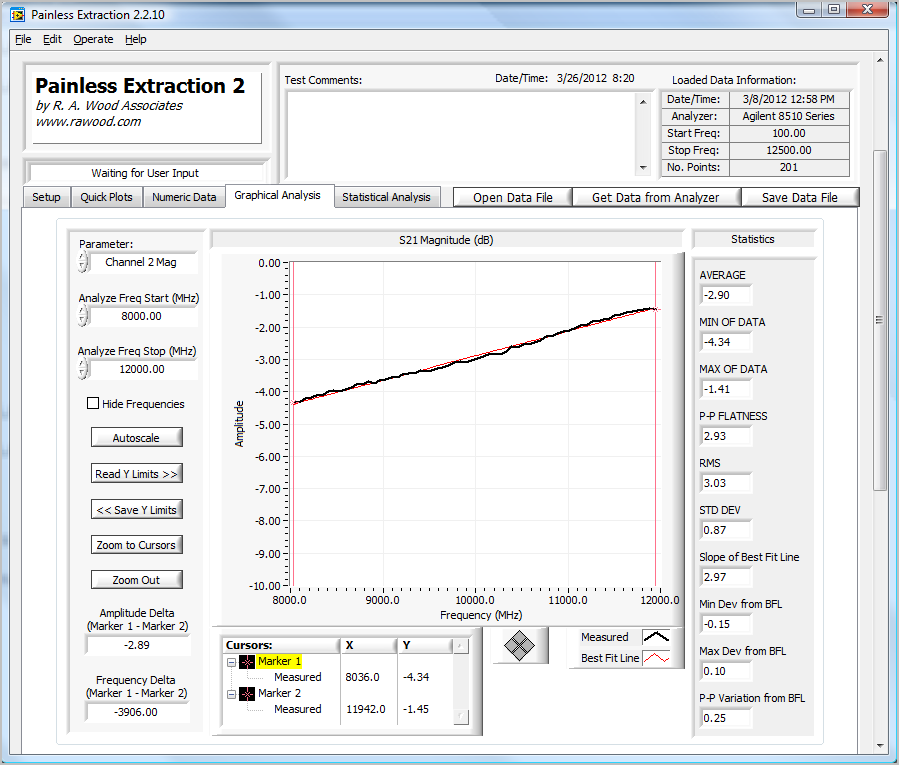

REQ-M05-F8.0-12.0-S3.0 M05 / M08 8.0 GHz 12.0 GHz 3.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F8.0-12.0-S3.5 M05 / M08 8.0 GHz 12.0 GHz 3.5 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F8.0-12.0-S4.0 M05 / M08 8.0 GHz 12.0 GHz 4.0 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F8.0-12.0-S5.0 M05 / M08 8.0 GHz 12.0 GHz 5.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

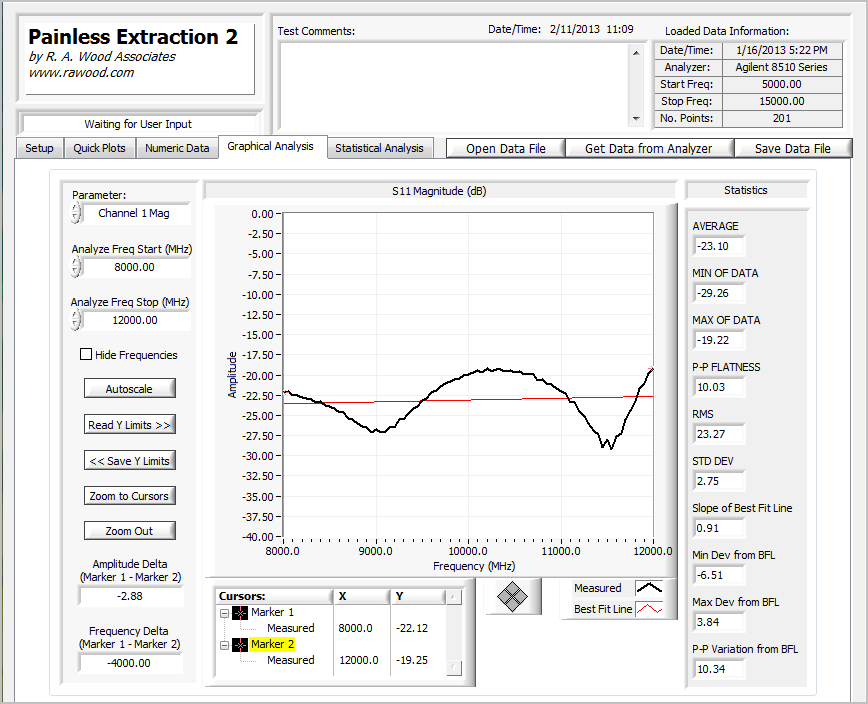

REQ-M05-F8.0-12.0-S6.0 M05 / M08 8.0 GHz 12.0 GHz 6.0 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11

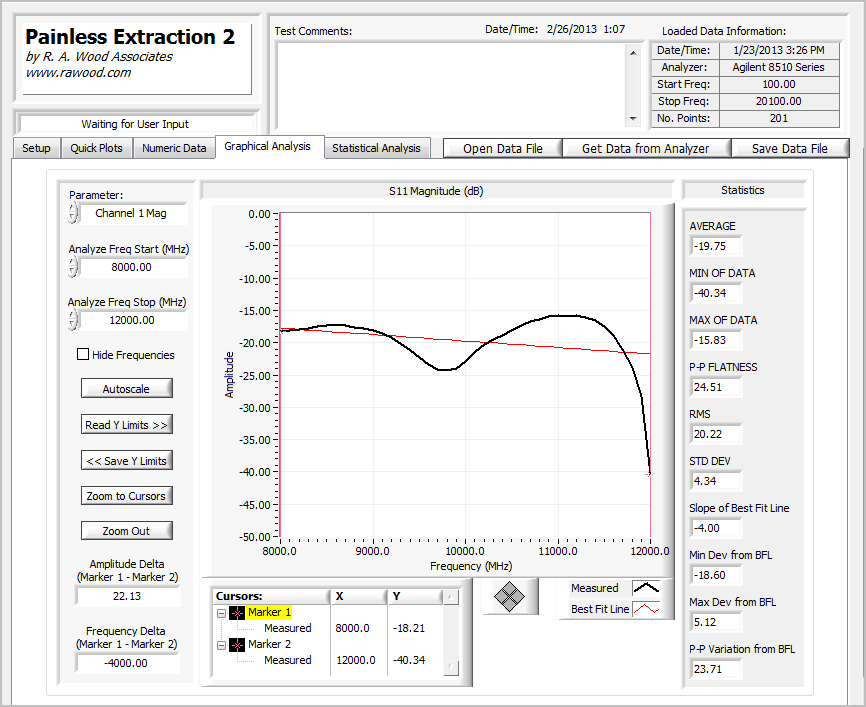

REQ-M05-F8.0-12.0-S8.0 M05 / M08 8.0 GHz 12.0 GHz 8.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

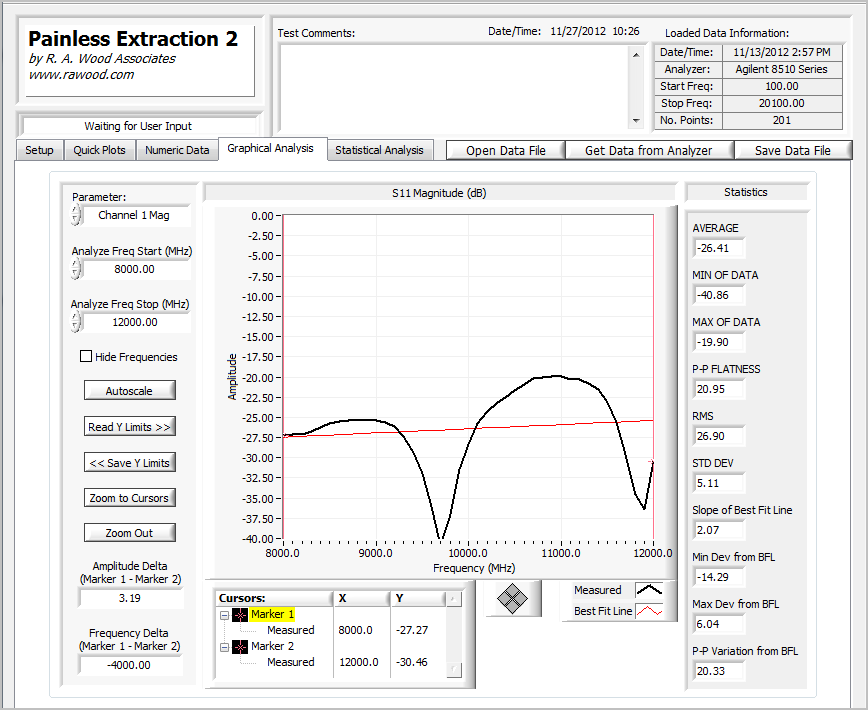

REQ-M05-F8.0-12.0-S8.5 M05 / M08 8.0 GHz 12.0 GHz 8.5 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

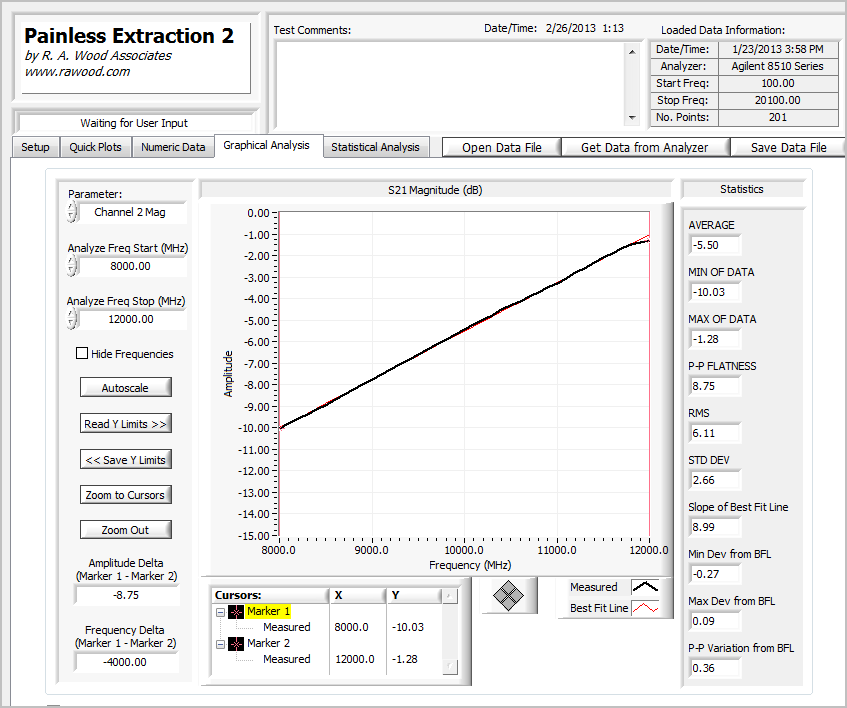

REQ-M05-F8.0-12.0-S9.0 M05 / M08 8.0 GHz 12.0 GHz 9.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

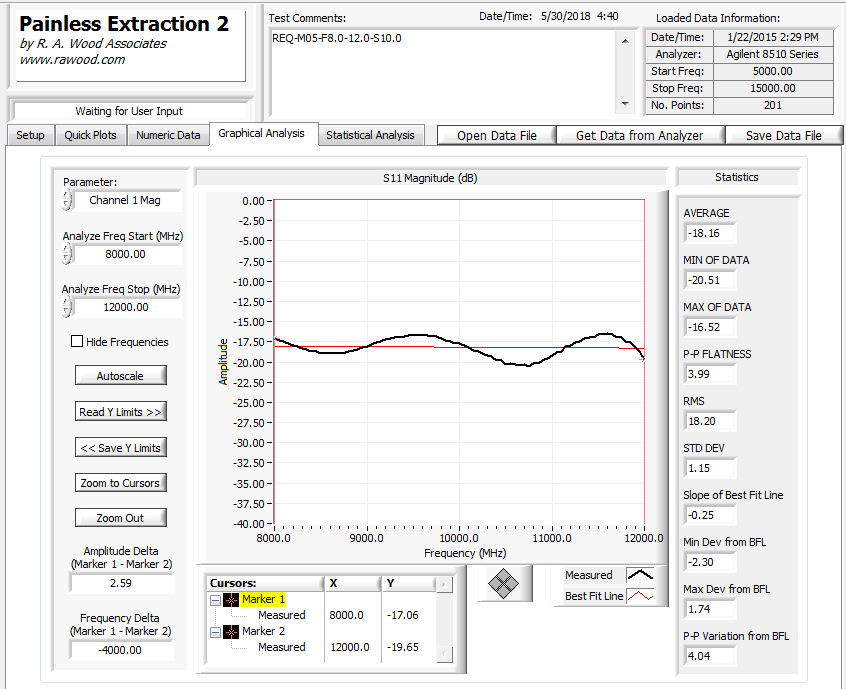

REQ-M05-F8.0-12.0-S10.0 M05 / M08 8.0 GHz 12.0 GHz 10.0 dB 2.3 dB Max S21 S11
Loss at High Freq
2.3 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-12.5-S19.0 M05 / M08 500 MHz 12.5 GHz 19.0 dB 3.4 dB Max S21 S11
Loss at High Freq
3.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

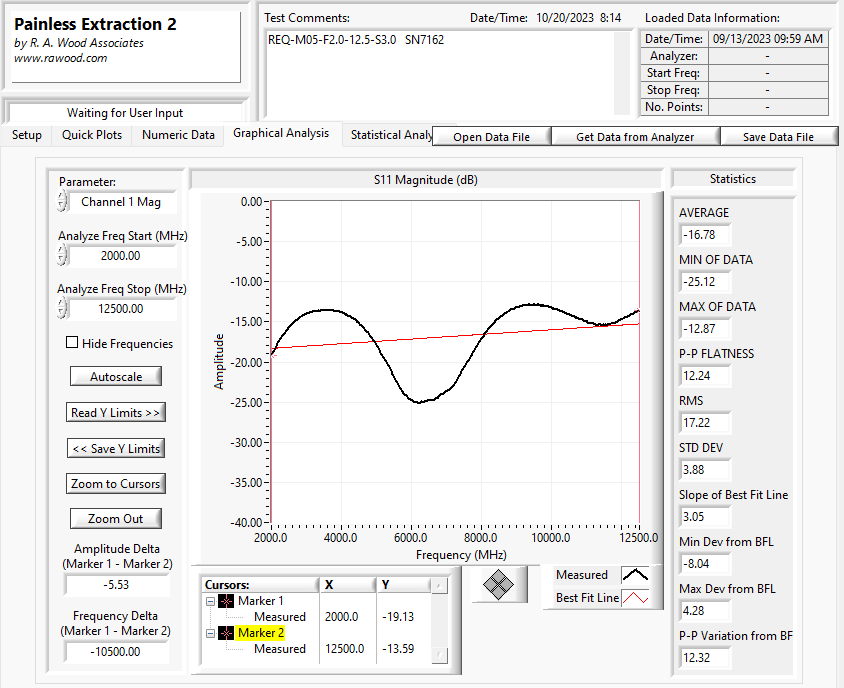

REQ-M05-F2.0-12.5-S3.0 M05 / M08 2.0 GHz 12.5 GHz 3.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-12.5-S5.0 M05 / M08 2.0 GHz 12.5 GHz 5.0 dB 1.2 dB Max S21 S11
Loss at High Freq
1.2 dB Max
Package Style
M05 / M08
Data
S21 / S11

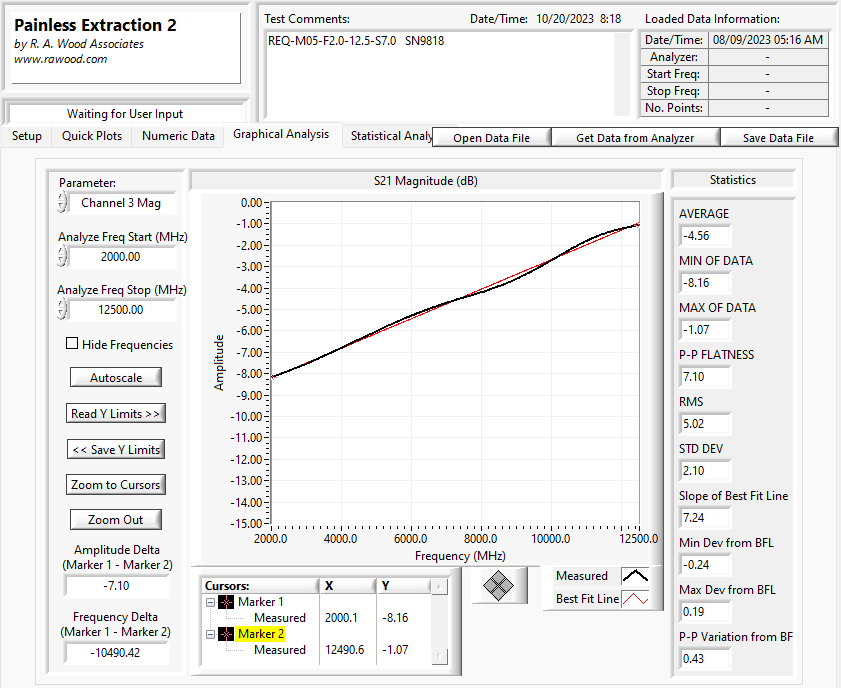

REQ-M05-F2.0-12.5-S7.0 M05 / M08 2.0 GHz 12.5 GHz 7.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-12.5-S6.0 M05 / M08 4.0 GHz 12.5 GHz 6.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

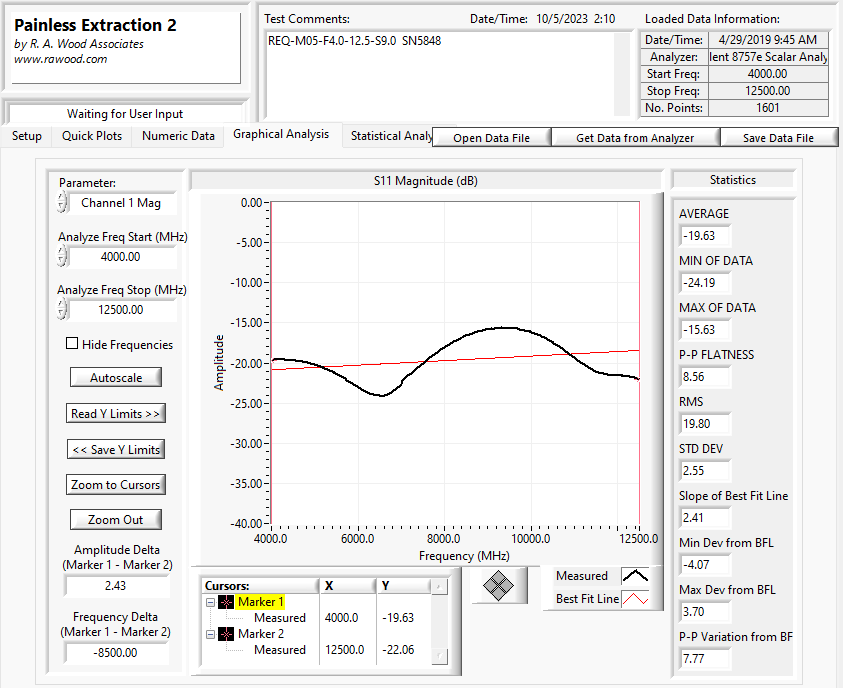

REQ-M05-F4.0-12.5-S9.0 M05 / M08 4.0 GHz 12.5 GHz 9.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

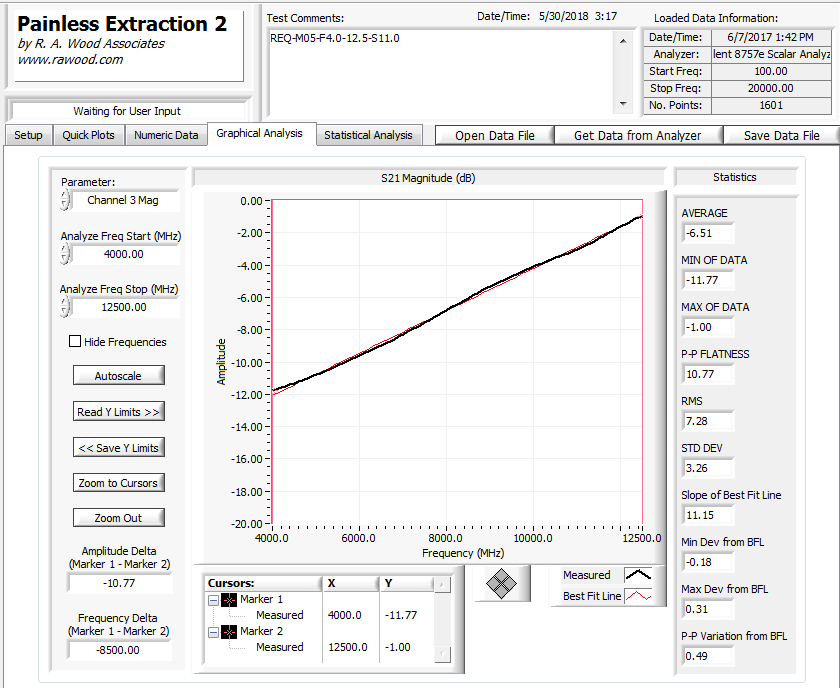

REQ-M05-F4.0-12.5-S11.0 M05 / M08 4.0 GHz 12.5 GHz 11.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

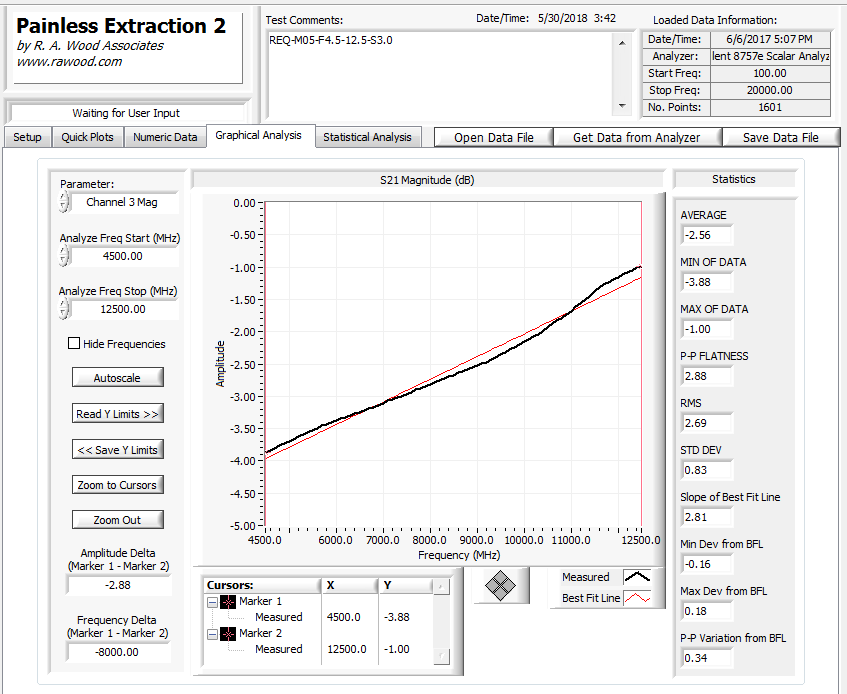

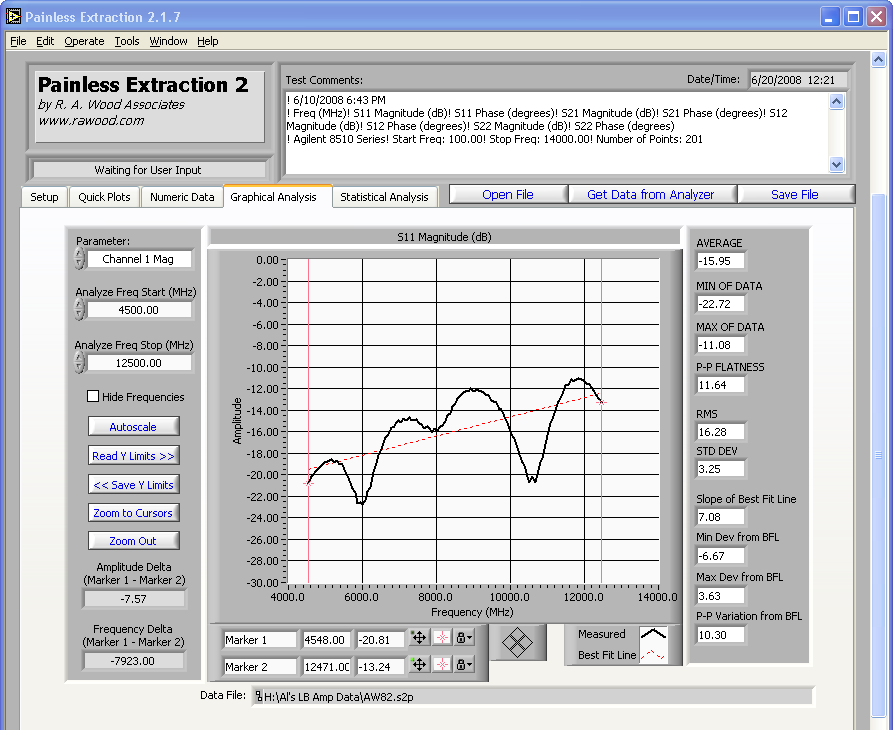

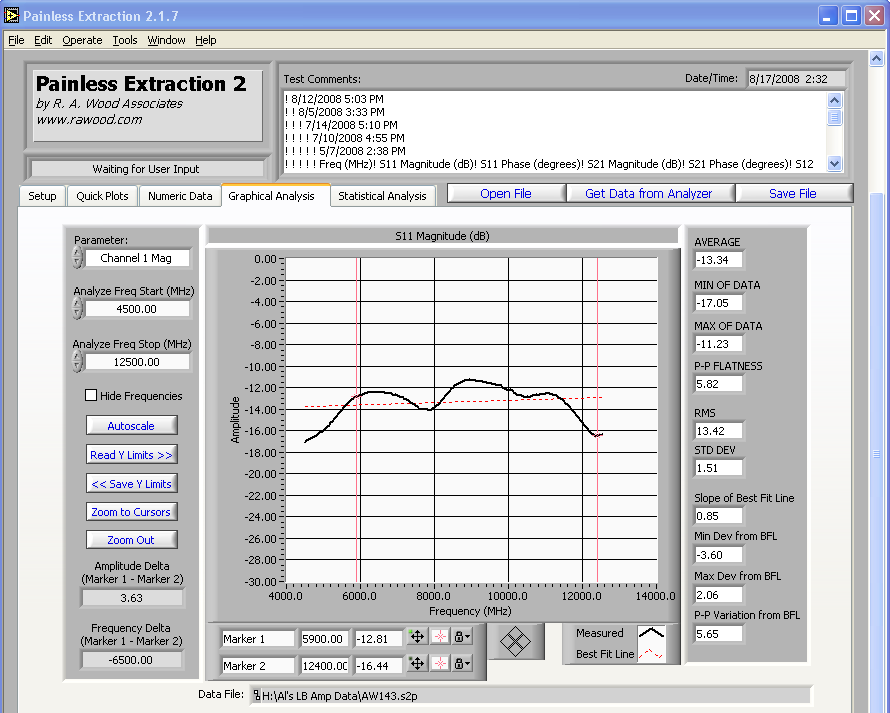

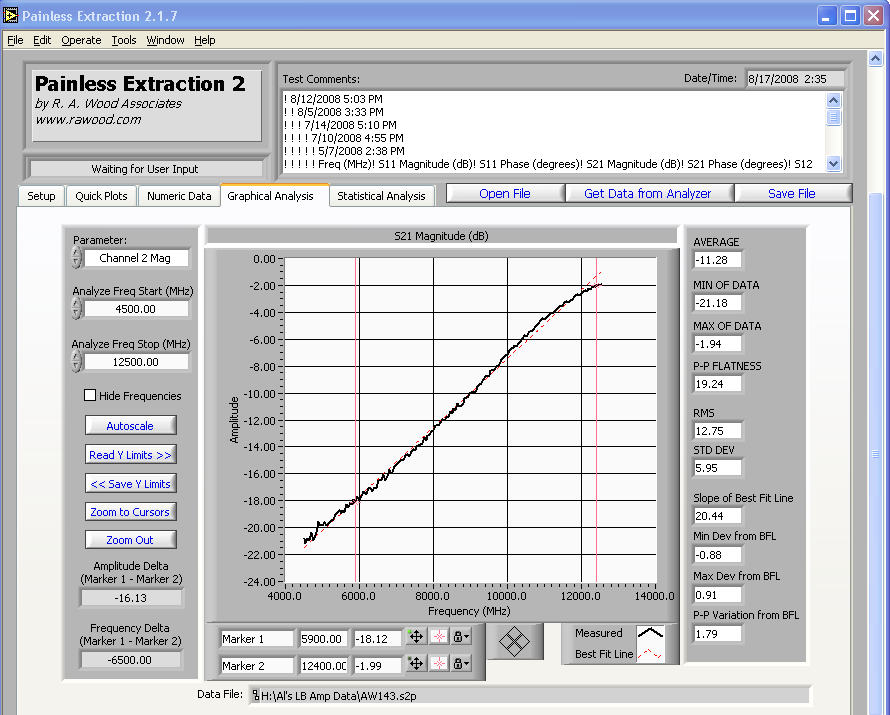

REQ-M05-F4.5-12.5-S3.0 M05 / M08 4.5 GHz 12.5 GHz 3.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

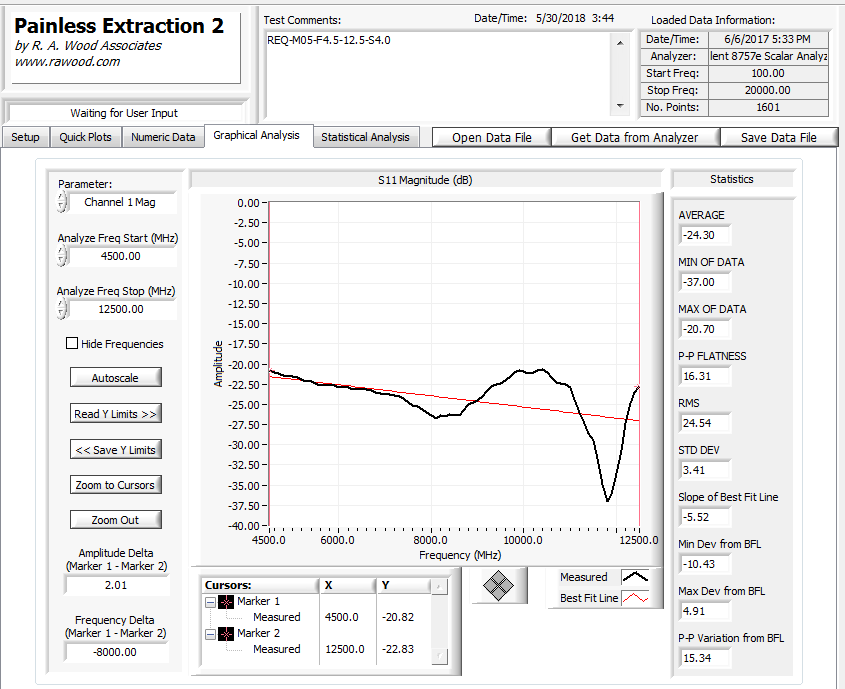

REQ-M05-F4.5-12.5-S4.0 M05 / M08 4.5 GHz 12.5 GHz 4.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.5-12.5-S5.0 M05 / M08 4.5 GHz 12.5 GHz 5.0 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.5-12.5-S5.5 M05 / M08 4.5 GHz 12.5 GHz 5.5 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.5-12.5-S6.5 M05 / M08 4.5 GHz 12.5 GHz 6.5 dB 2.1 dB Max S21 S11
Loss at High Freq
2.1 dB Max
Package Style
M05 / M08
Data
S21 / S11

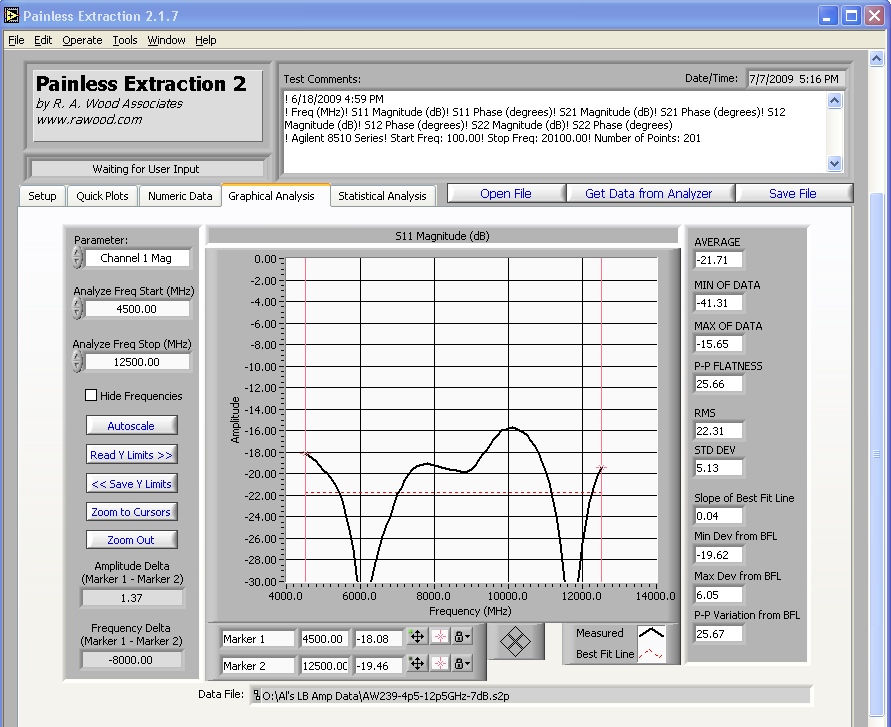

REQ-M05-F4.5-12.5-S7.0 M05 / M08 4.5 GHz 12.5 GHz 7.0 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.5-12.5-S8.0 M05 / M08 4.5 GHz 12.5 GHz 8.0 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.5-12.5-S9.0 M05 / M08 4.5 GHz 12.5 GHz 9.0 dB 2.5 dB Max S21 S11
Loss at High Freq
2.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.5-12.5-S9.0-FF M05 / M08 4.5 GHz 12.5 GHz 9.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.5-12.5-S9.5-FF M05 / M08 4.5 GHz 12.5 GHz 9.5 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11

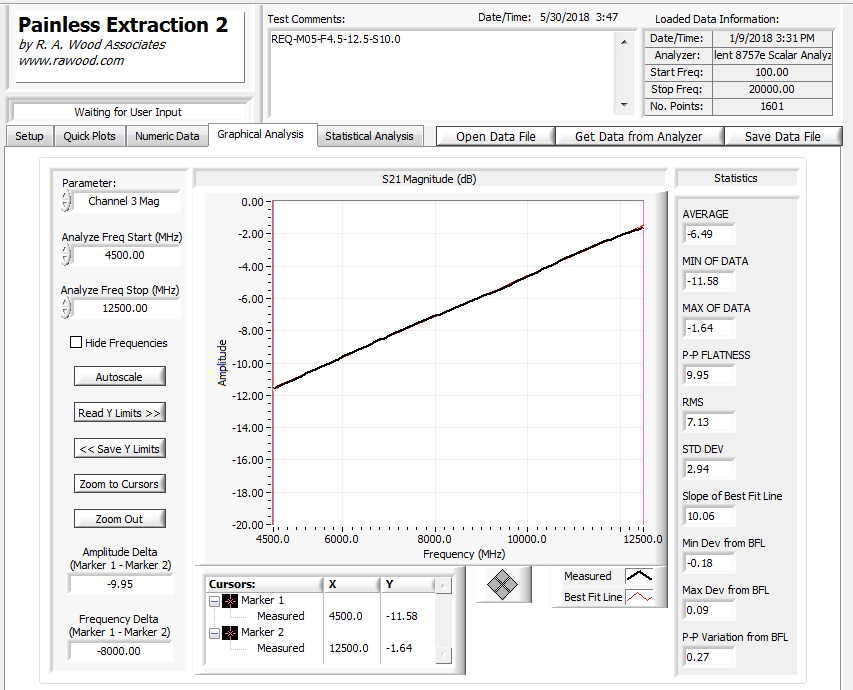

REQ-M05-F4.5-12.5-S10.0 M05 / M08 4.5 GHz 12.5 GHz 10.0 dB 2.1 dB Max S21 S11
Loss at High Freq
2.1 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.5-12.5-S10.0-FF M05 / M08 4.5 GHz 12.5 GHz 10.0 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11

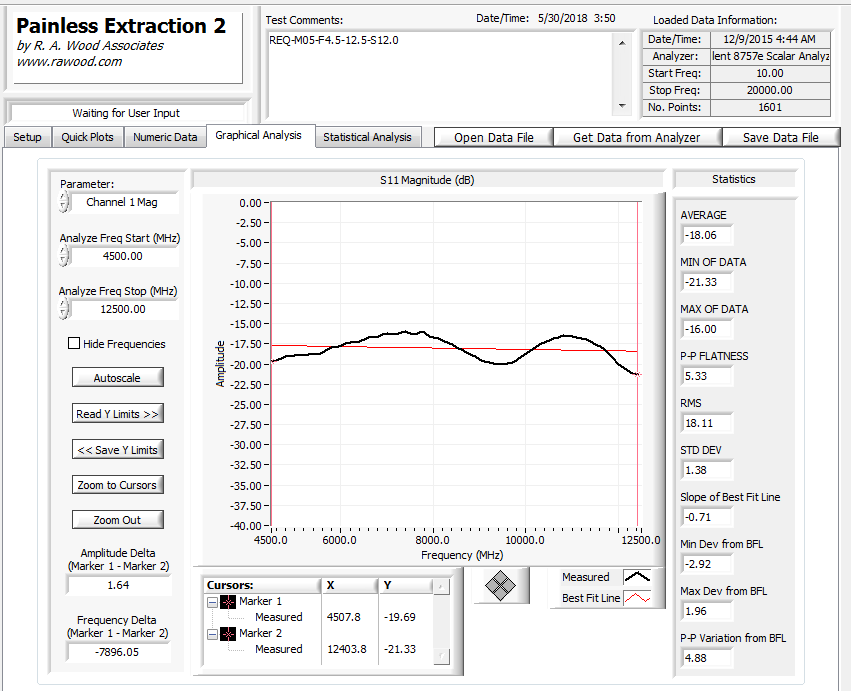

REQ-M05-F4.5-12.5-S12.0 M05 / M08 4.5 GHz 12.5 GHz 12.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.5-12.5-S12.0-FF M05 / M08 4.5 GHz 12.5 GHz 12.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

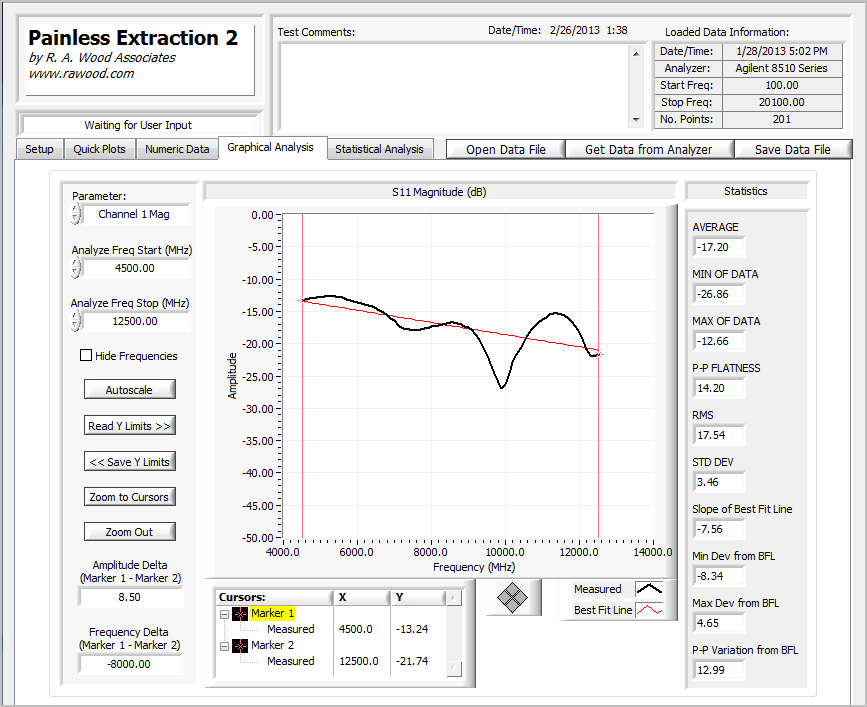

REQ-M05-F4.5-12.5-S14.0 M05 / M08 4.5 GHz 12.5 GHz 14.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.5-12.5-S18.0 M05 / M08 4.5 GHz 12.5 GHz 18.0 dB 2.3 dB Max S21 S11
Loss at High Freq
2.3 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.5-12.5-S19.5 M05 / M08 4.5 GHz 12.5 GHz 19.5 dB 2.4 dB Max S21 S11
Loss at High Freq
2.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

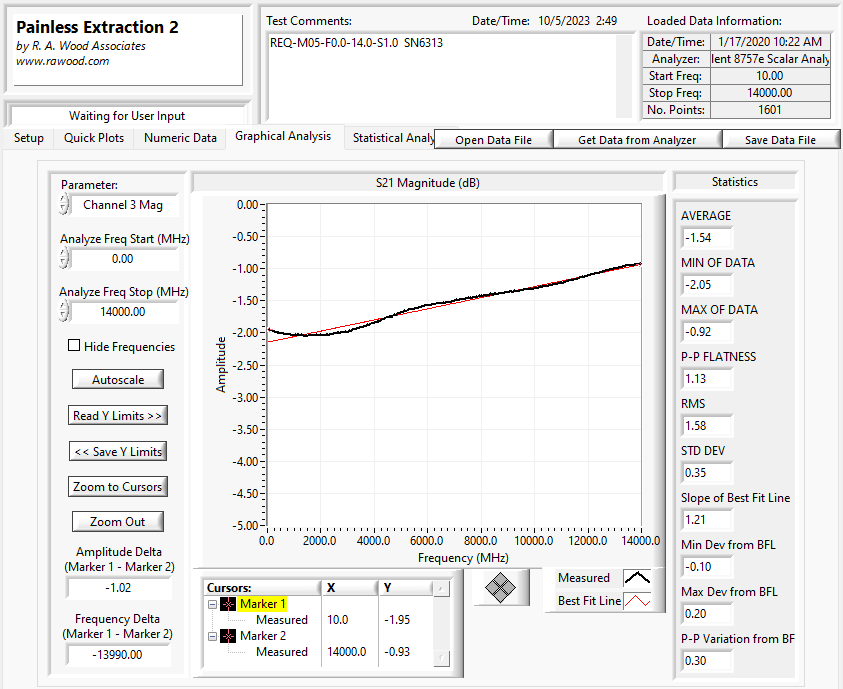

REQ-M05-F0.0-14.0-S1.0 M05 / M08 DC 14.0 GHz 1.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

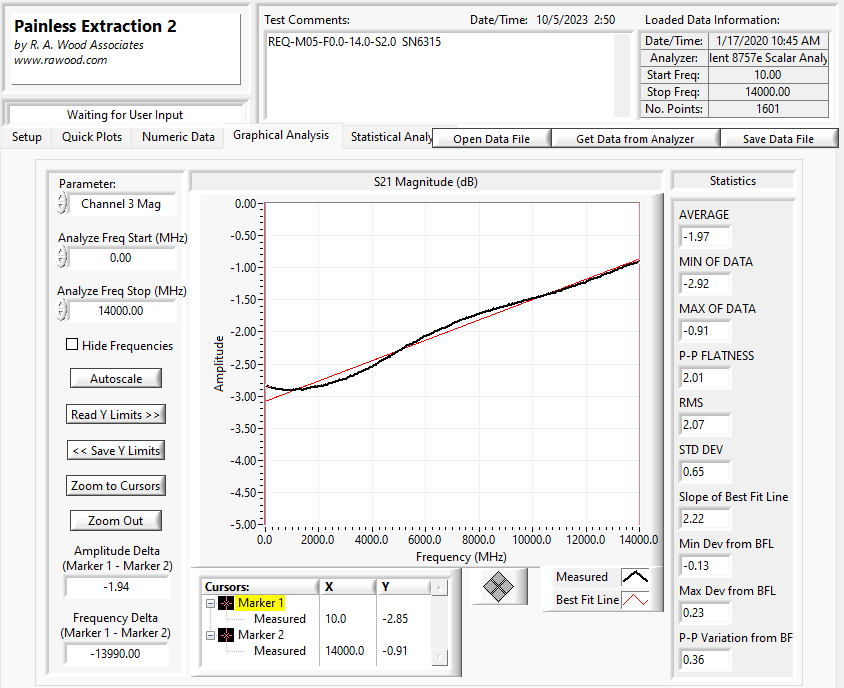

REQ-M05-F0.0-14.0-S2.0 M05 / M08 DC 14.0 GHz 2.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

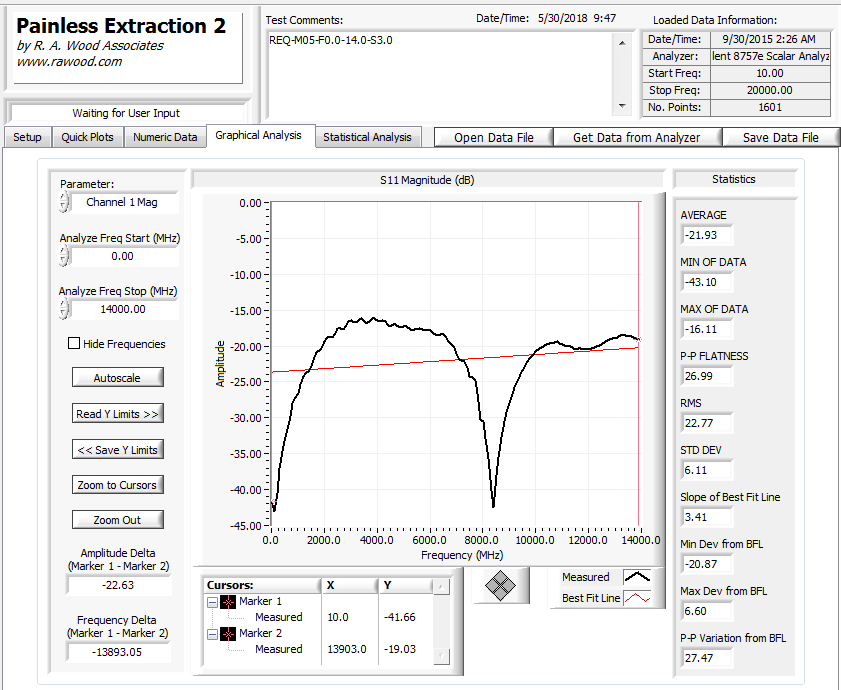

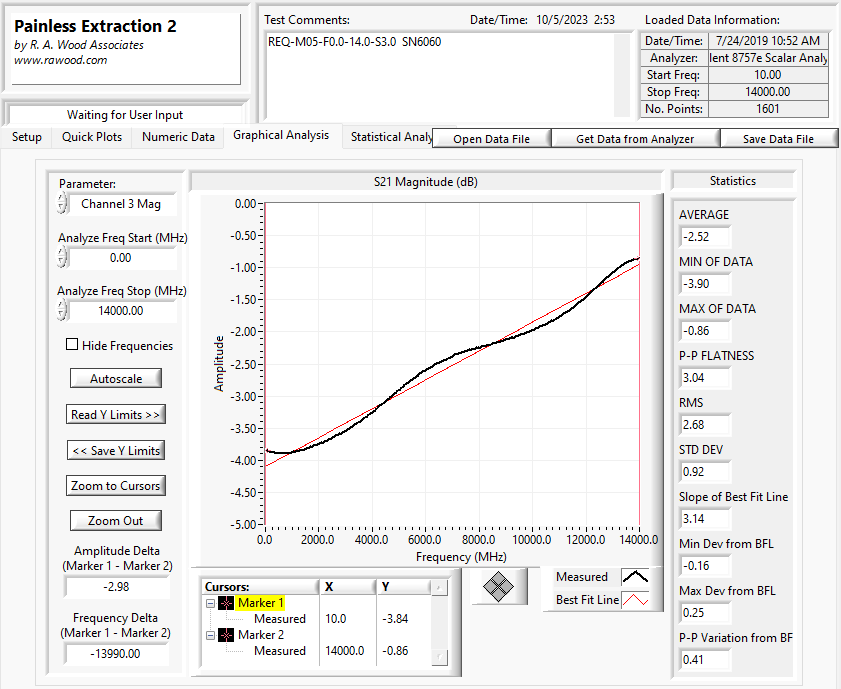

REQ-M05-F0.0-14.0-S3.0 M05 / M08 DC 14.0 GHz 3.0 dB 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.0-14.0-S3.0 M05 / M08 DC 14.0 GHz 3.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.0-14.0-S6.0 M05 / M08 DC 14.0 GHz 6.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-15.0-S15.0 M05 / M08 1.0 GHz 15.0 GHz 15.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

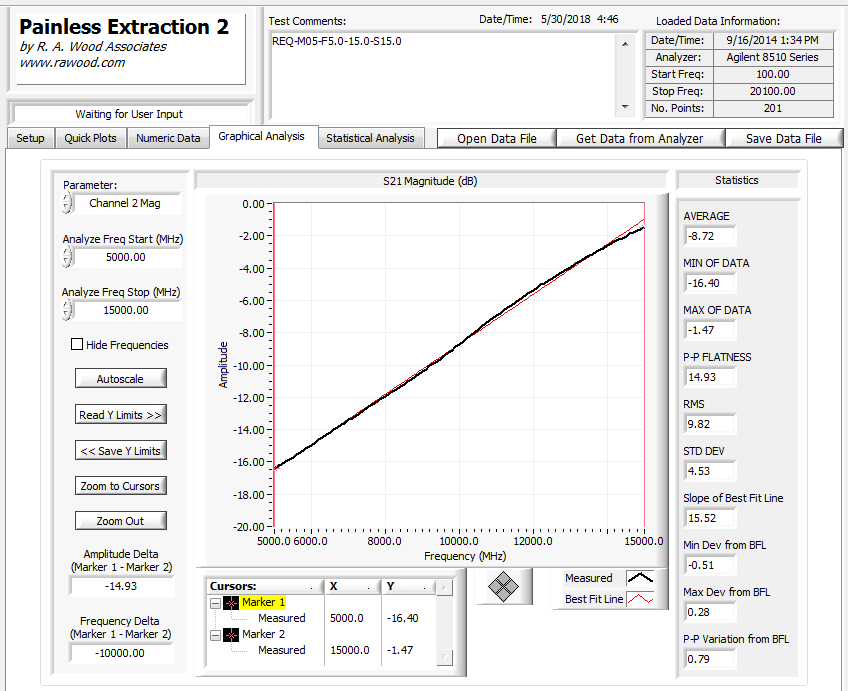

REQ-M05-F5.0-15.0-S15.0 M05 / M08 5.0 GHz 15.0 GHz 15.0 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F8.0-15.0-S9.0 M05 / M08 8.0 GHz 15.0 GHz 9.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

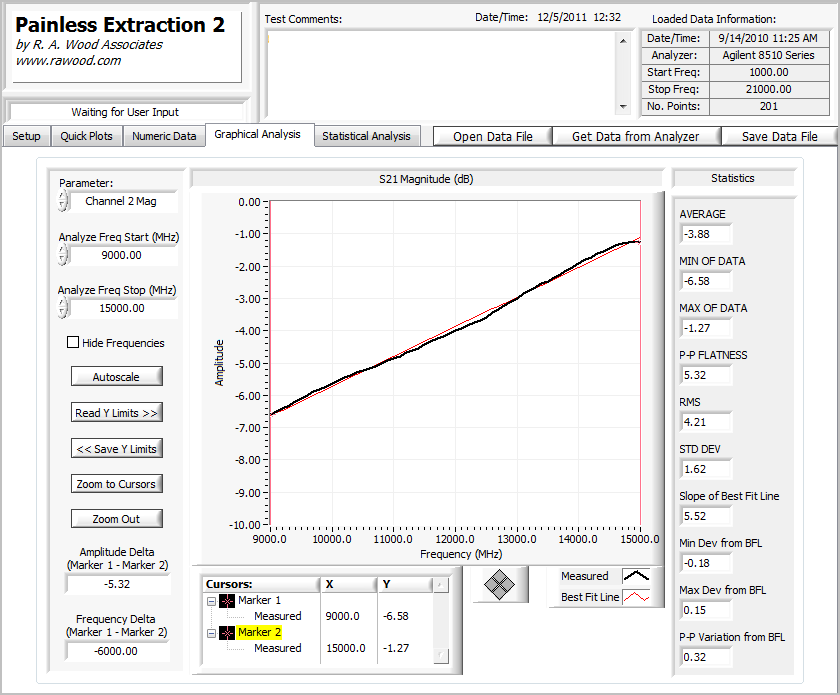

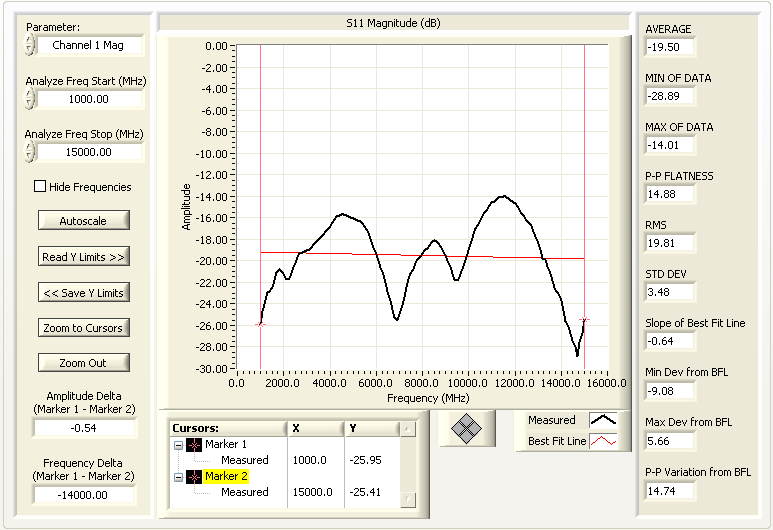

REQ-M05-F9.0-15.0-S5.5 M05 / M08 9.0 GHz 15.0 GHz 5.5 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

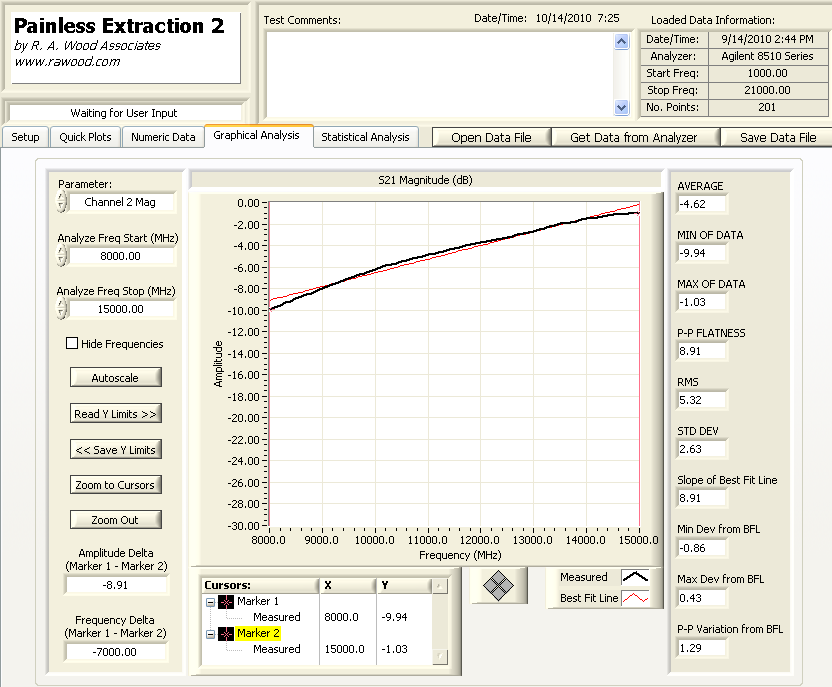

REQ-M05-F9.0-15.0-S7.0 M05 / M08 9.0 GHz 15.0 GHz 7.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.1-18.0-S3.9 M05 / M08 100 MHz 18.0 GHz 3.9 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.1-18.0-S7.0 M05 / M08 100 MHz 18.0 GHz 7.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.1-18.0-S11.0 M05 / M08 100 MHz 18.0 GHz 11.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-18.0-S3.8 M05 / M08 500 MHz 18.0 GHz 3.8 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-18.0-S5.0 M05 / M08 500 MHz 18.0 GHz 5.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

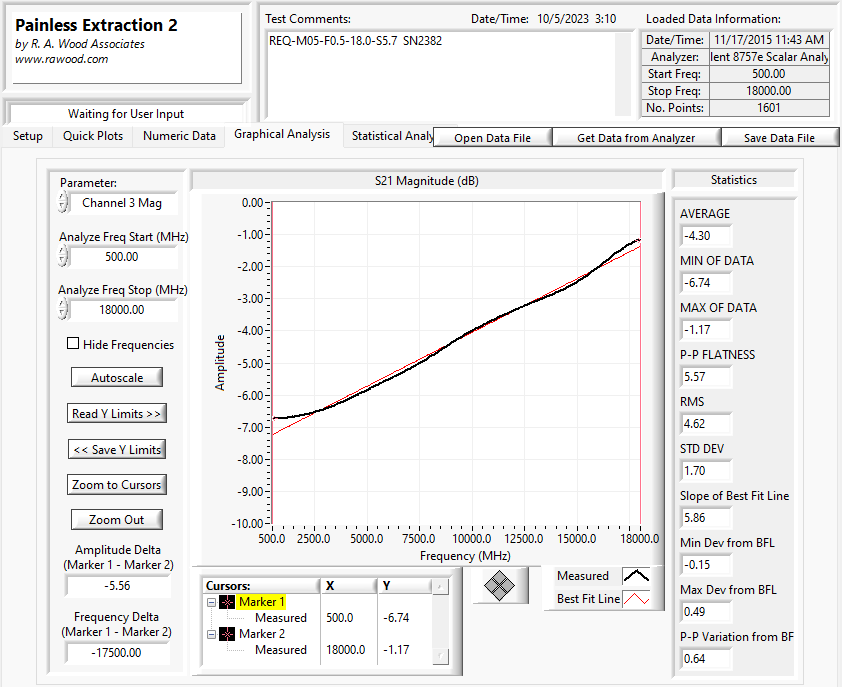

REQ-M05-F0.5-18.0-S5.7 M05 / M08 500 MHz 18.0 GHz 5.7 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

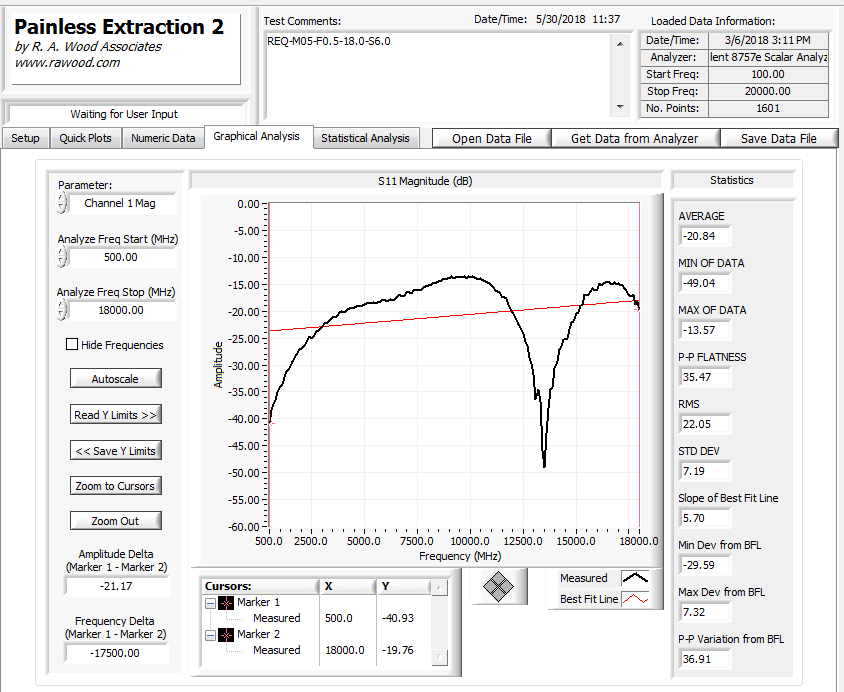

REQ-M05-F0.5-18.0-S6.0 M05 / M08 500 MHz 18.0 GHz 6.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-18.0-S7.0 M05 / M08 500 MHz 18.0 GHz 7.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

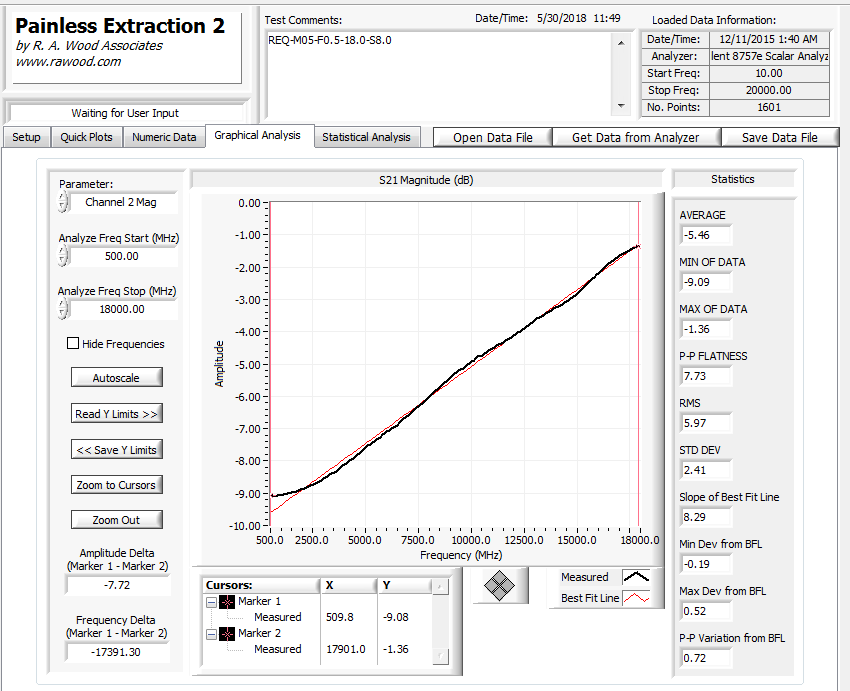

REQ-M05-F0.5-18.0-S8.0 M05 / M08 500 MHz 18.0 GHz 8.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-18.0-S9.0 M05 / M08 500 MHz 18.0 GHz 9.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

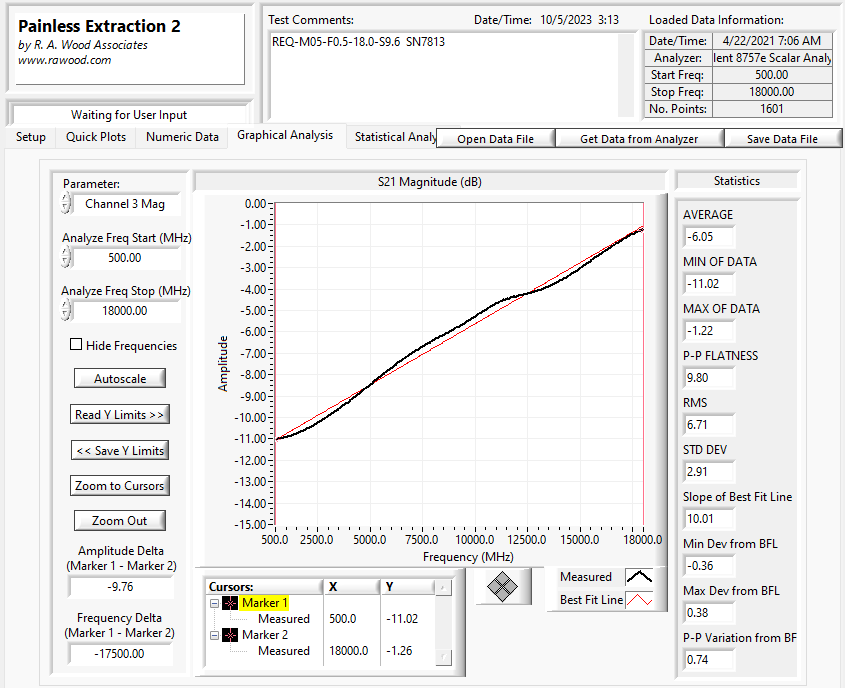

REQ-M05-F0.5-18.0-S9.6 M05 / M08 500 MHz 18.0 GHz 9.6 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-18.0-S10.0 M05 / M08 500 MHz 18.0 GHz 10.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-18.0-S10.5 M05 / M08 500 MHz 18.0 GHz 10.5 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-18.0-S11.0 M05 / M08 500 MHz 18.0 GHz 11.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11

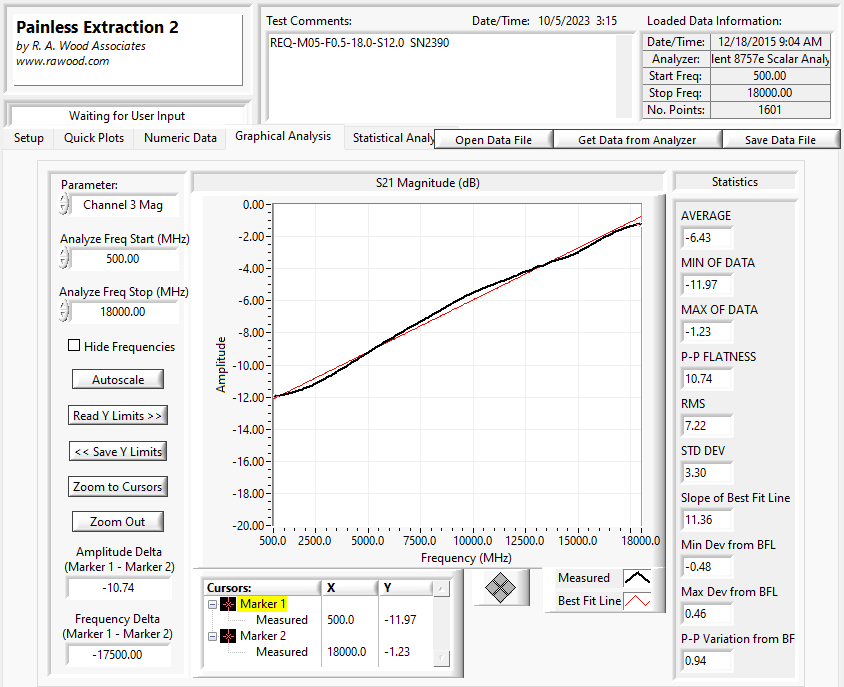

REQ-M05-F0.5-18.0-S12.0 M05 / M08 500 MHz 18.0 GHz 12.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-18.0-S13.0 M05 / M08 500 MHz 18.0 GHz 13.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11

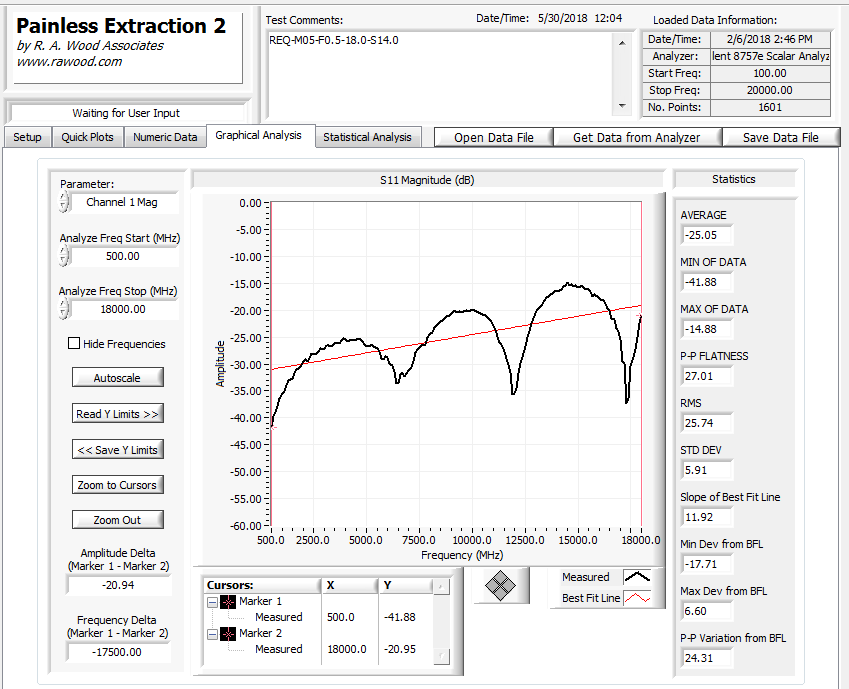

REQ-M05-F0.5-18.0-S14.0 M05 / M08 500 MHz 18.0 GHz 14.0 dB 2.2 dB Max S21 S11
Loss at High Freq
2.2 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-18.0-S15.0 M05 / M08 500 MHz 18.0 GHz 15.0 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11

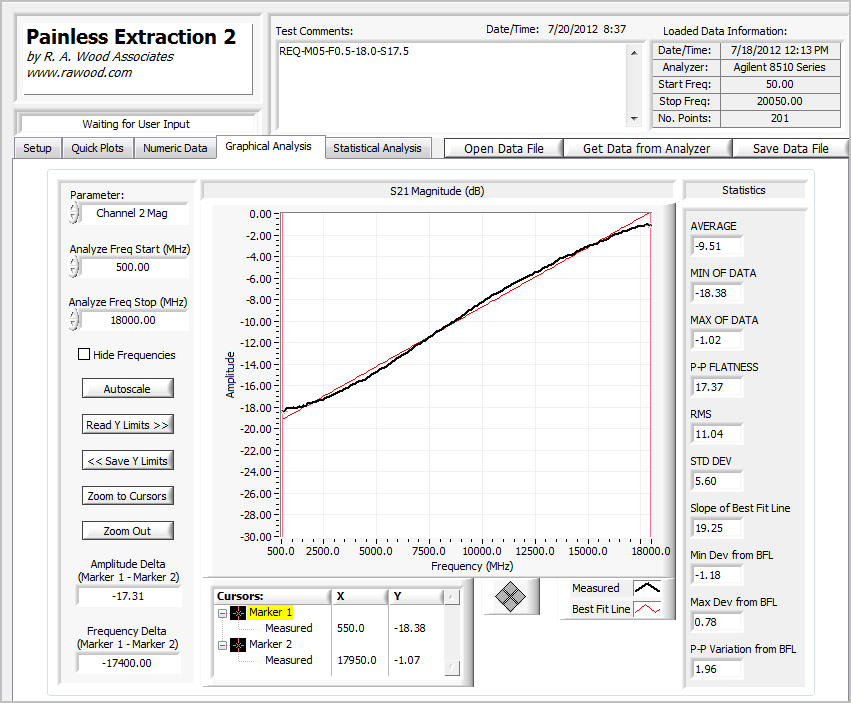

REQ-M05-F0.5-18.0-S17.5 M05 / M08 500 MHz 18.0 GHz 17.5 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-18.0-S18.0 M05 / M08 500 MHz 18.0 GHz 18.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-18.0-S22.0 M05 / M08 500 MHz 18.0 GHz 22.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F0.5-18.0-S23.0 M05 / M08 500 MHz 18.0 GHz 23.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-18.0-S3.7 M05 / M08 1.0 GHz 18.0 GHz 3.7 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-18.0-S5.0 M05 / M08 1.0 GHz 18.0 GHz 5.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

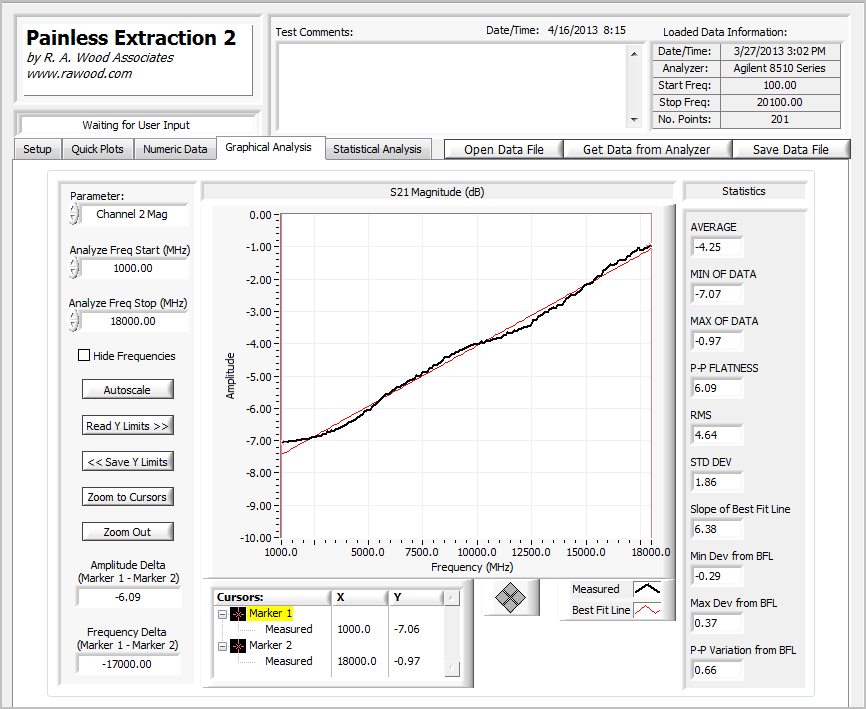

REQ-M05-F1.0-18.0-S6.2 M05 / M08 1.0 GHz 18.0 GHz 6.2 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-18.0-S8.5 M05 / M08 1.0 GHz 18.0 GHz 8.5 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-18.0-S10.0 M05 / M08 1.0 GHz 18.0 GHz 10.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F1.0-18.0-S14.5 M05 / M08 1.0 GHz 18.0 GHz 14.5 dB 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S0.0 M05 / M08 2.0 GHz 18.0 GHz 0.0 dB 0.6 dB Max S21 S11
Loss at High Freq
0.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S2.0 M05 / M08 2.0 GHz 18.0 GHz 2.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

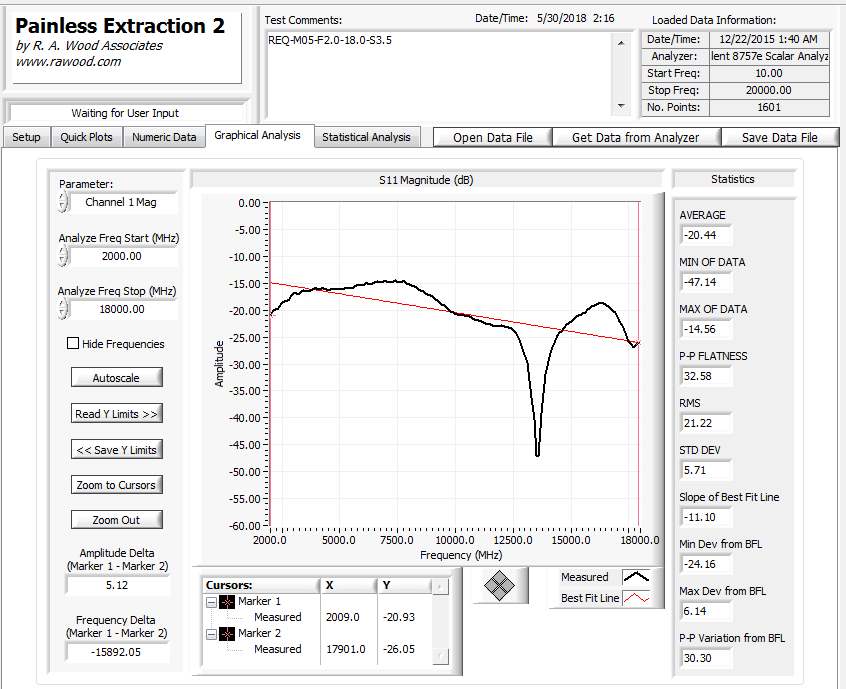

REQ-M05-F2.0-18.0-S3.5 M05 / M08 2.0 GHz 18.0 GHz 3.5 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S4.0 M05 / M08 2.0 GHz 18.0 GHz 4.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S6.0 M05 / M08 2.0 GHz 18.0 GHz 6.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S7.0 M05 / M08 2.0 GHz 18.0 GHz 7.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

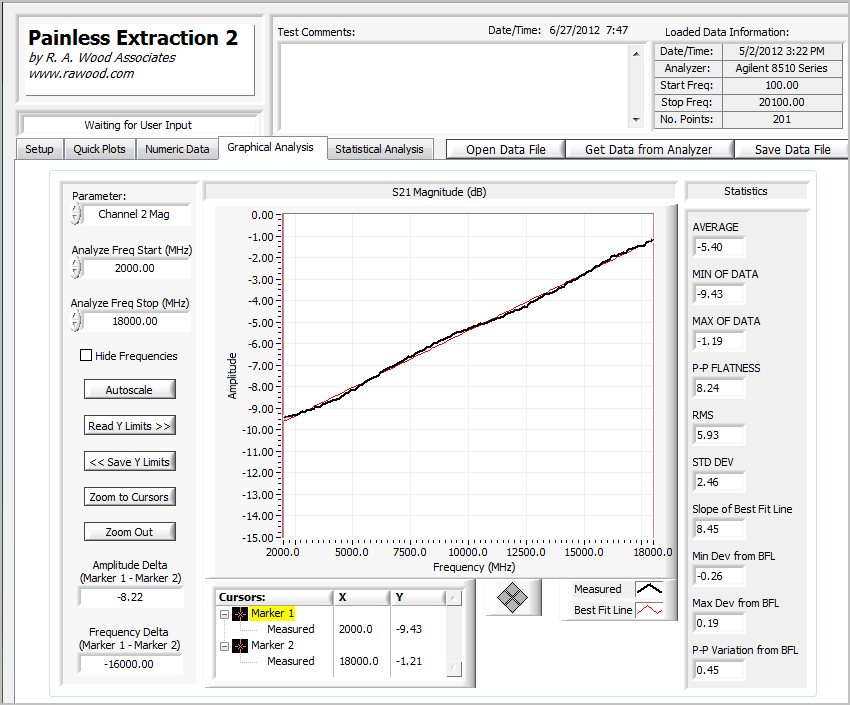

REQ-M05-F2.0-18.0-S8.0 M05 / M08 2.0 GHz 18.0 GHz 8.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

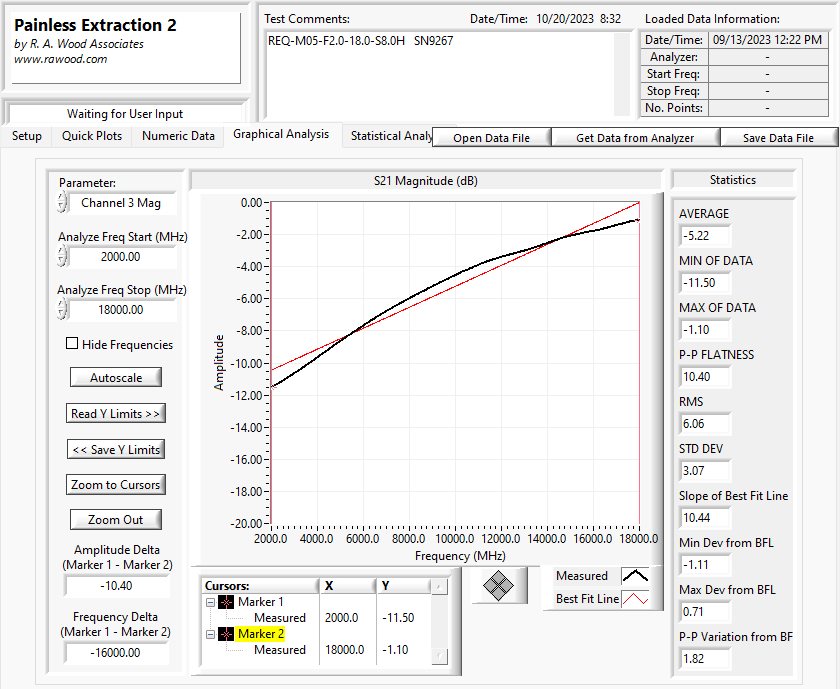

REQ-M05-F2.0-18.0-S8.0H M05 / M08 2.0 GHz 18.0 GHz 8.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S9.0 M05 / M08 2.0 GHz 18.0 GHz 9.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S9.5 M05 / M08 2.0 GHz 18.0 GHz 9.5 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S10.0 M05 / M08 2.0 GHz 18.0 GHz 10.0 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S10.0H M05 / M08 2.0 GHz 18.0 GHz 10.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S12.0 M05 / M08 2.0 GHz 18.0 GHz 12.0 dB 2.1 dB Max S21 S11
Loss at High Freq
2.1 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S13.0 M05 / M08 2.0 GHz 18.0 GHz 13.0 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S14.0 M05 / M08 2.0 GHz 18.0 GHz 14.0 dB 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S15.0 M05 / M08 2.0 GHz 18.0 GHz 15.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S16.0 M05 / M08 2.0 GHz 18.0 GHz 16.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

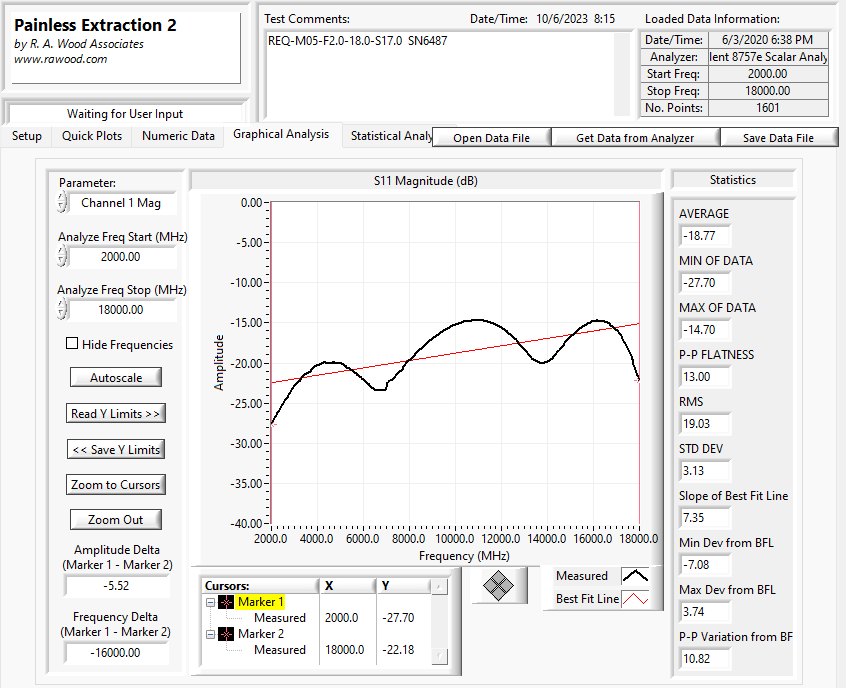

REQ-M05-F2.0-18.0-S17.0 M05 / M08 2.0 GHz 18.0 GHz 17.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S18.0 M05 / M08 2.0 GHz 18.0 GHz 18.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11

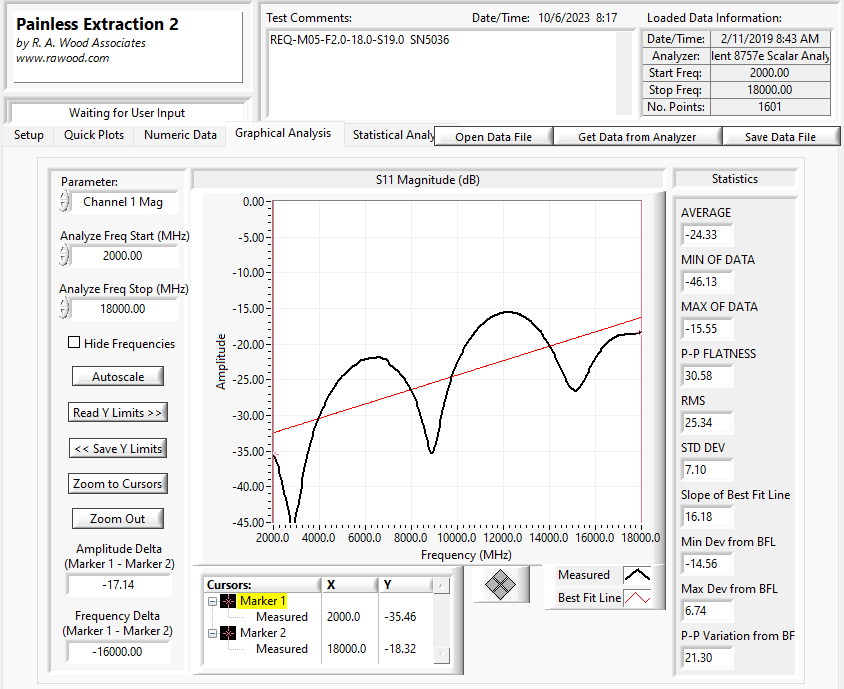

REQ-M05-F2.0-18.0-S19.0 M05 / M08 2.0 GHz 18.0 GHz 19.0 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S20.0 M05 / M08 2.0 GHz 18.0 GHz 20.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-18.0-S21.0 M05 / M08 2.0 GHz 18.0 GHz 21.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

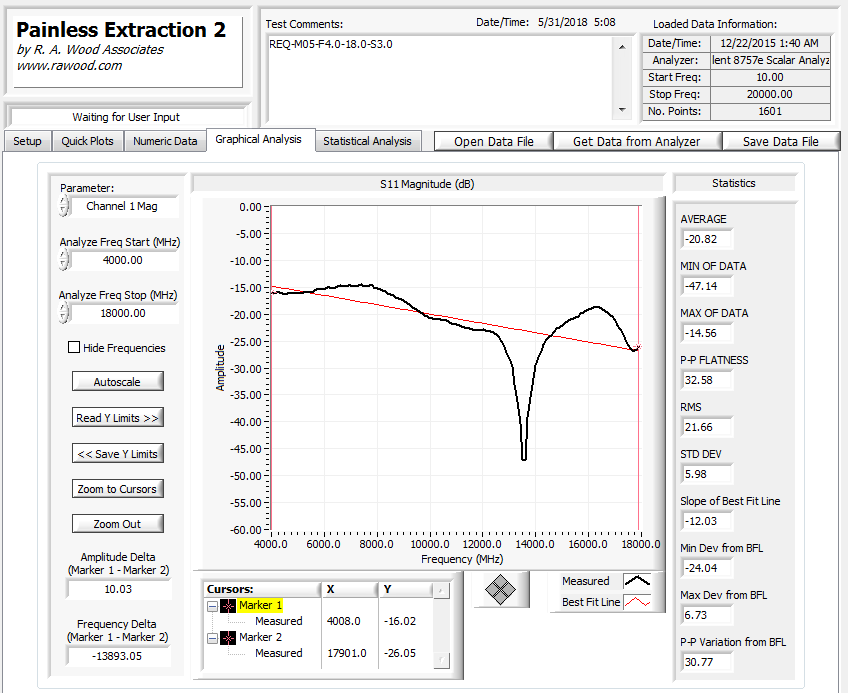

REQ-M05-F4.0-18.0-S3.0 M05 / M08 4.0 GHz 18.0 GHz 3.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-18.0-S4.0 M05 / M08 4.0 GHz 18.0 GHz 4.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-18.0-S5.0 M05 / M08 4.0 GHz 18.0 GHz 5.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-18.0-S6.0 M05 / M08 4.0 GHz 18.0 GHz 6.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

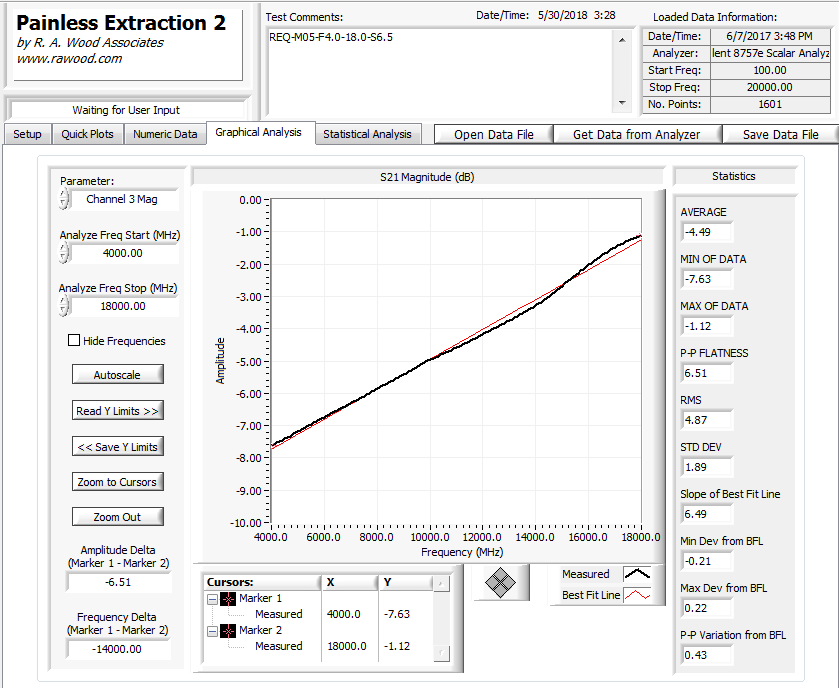

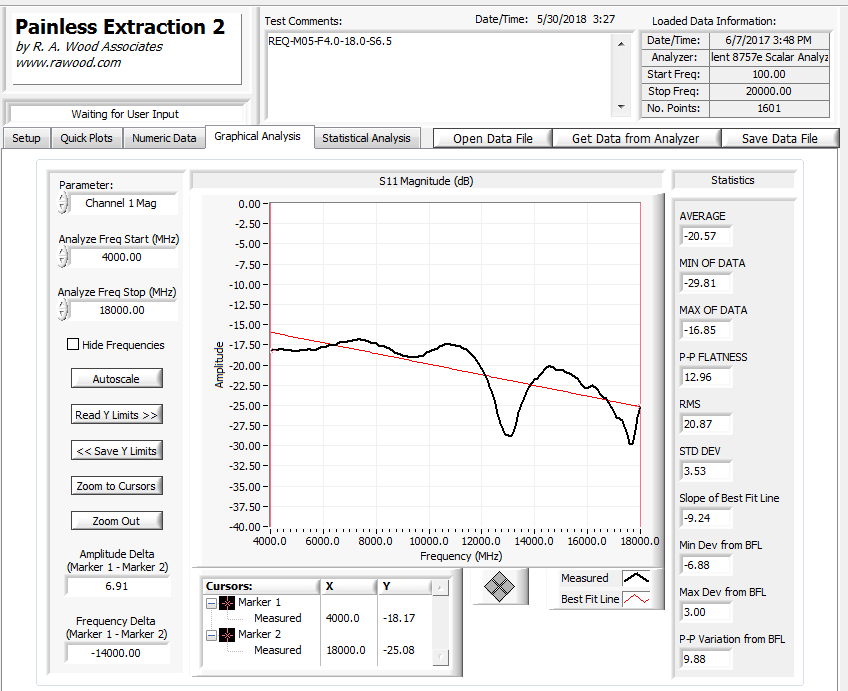

REQ-M05-F4.0-18.0-S6.5 M05 / M08 4.0 GHz 18.0 GHz 6.5 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

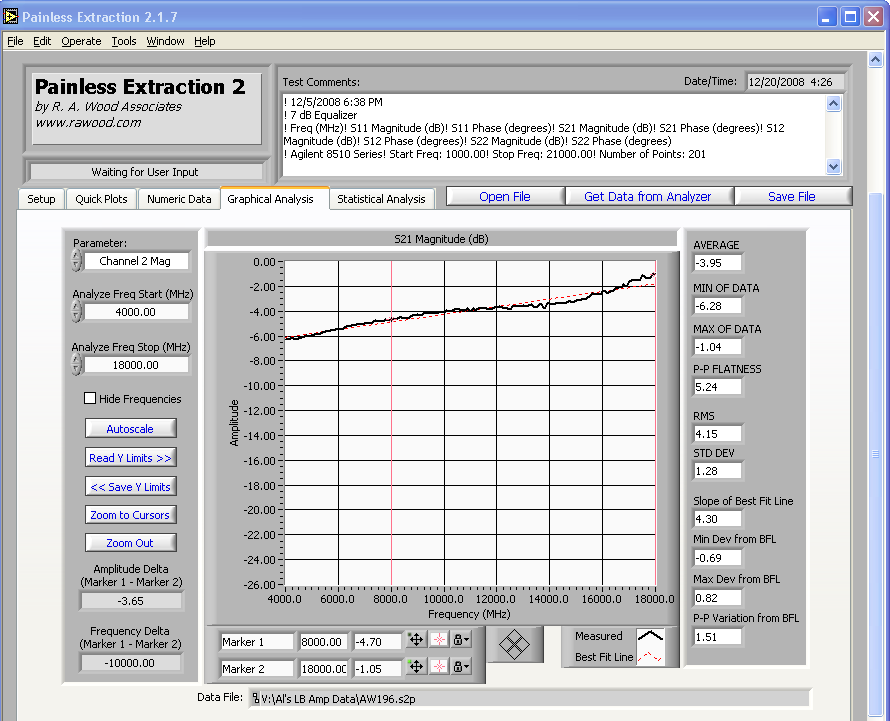

REQ-M05-F4.0-18.0-S7.0 M05 / M08 4.0 GHz 18.0 GHz 7.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-18.0-S7.5 M05 / M08 4.0 GHz 18.0 GHz 7.5 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11

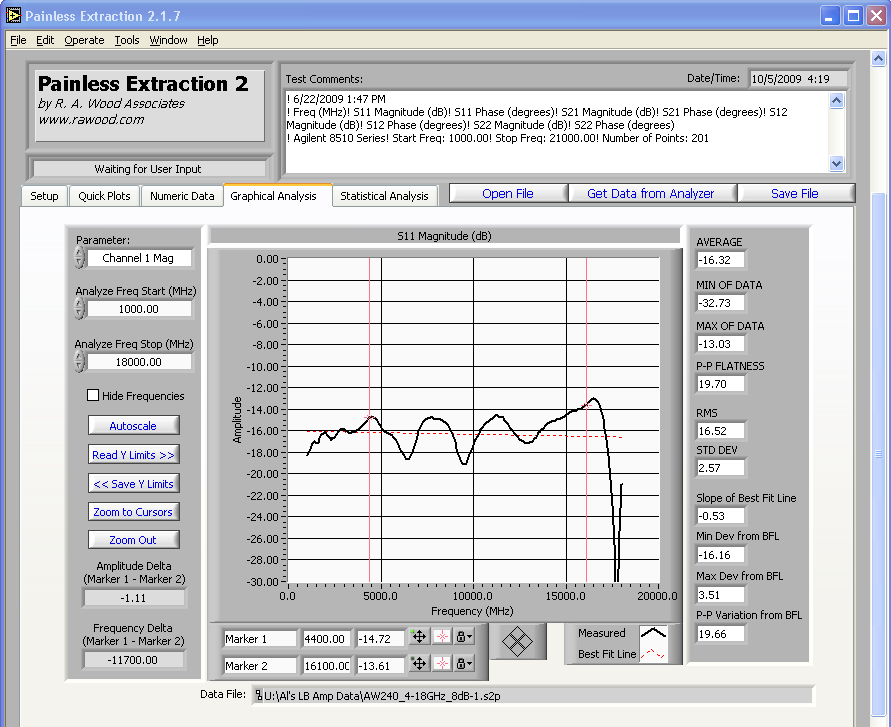

REQ-M05-F4.0-18.0-S8.0 M05 / M08 4.0 GHz 18.0 GHz 8.0 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11

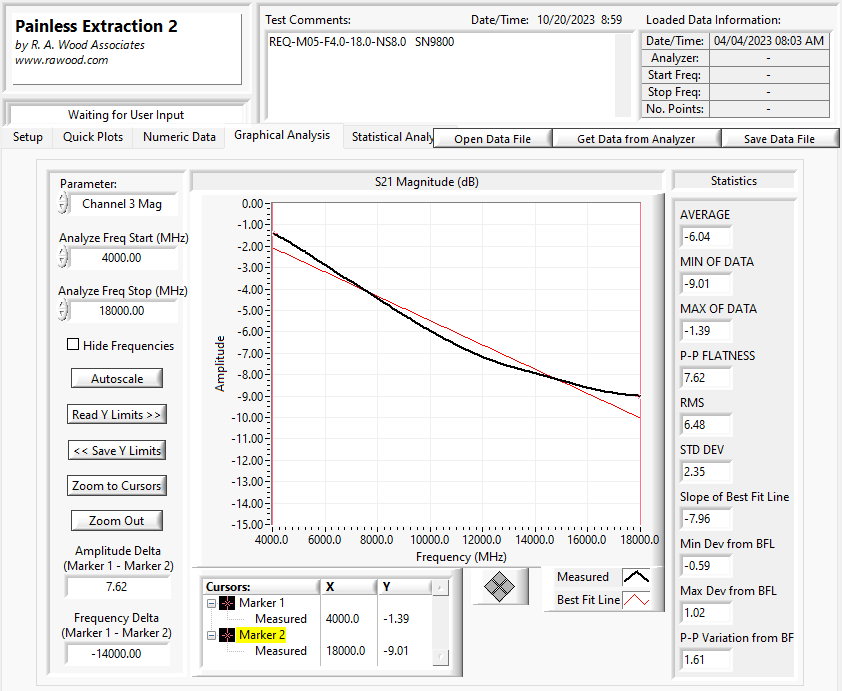

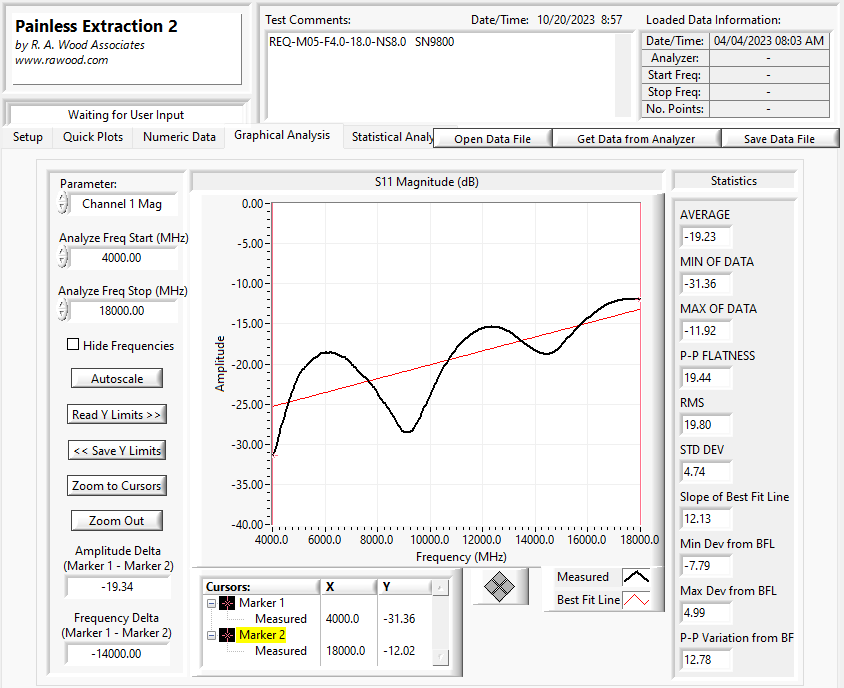

REQ-M05-F4.0-18.0-S-8.0 M05 / M08 4.0 GHz 18.0 GHz -8.0 dB 1.8 dB Max* Low Freq. S21 S11
Loss at High Freq
1.8 dB Max* Low Freq.
Package Style
M05 / M08
Data
S21 / S11

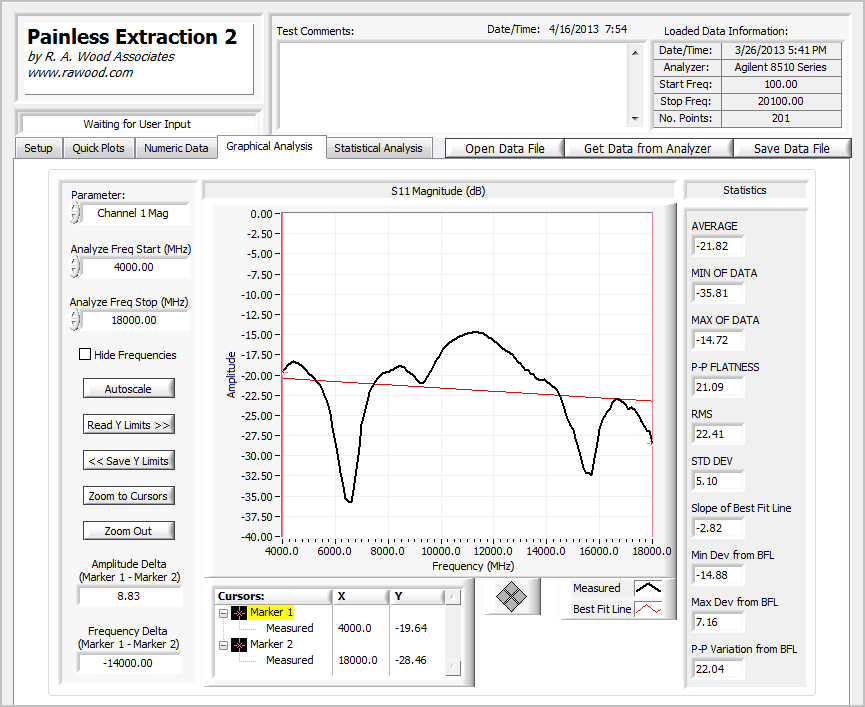

REQ-M05-F4.0-18.0-S9.0 M05 / M08 4.0 GHz 18.0 GHz 9.0 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11

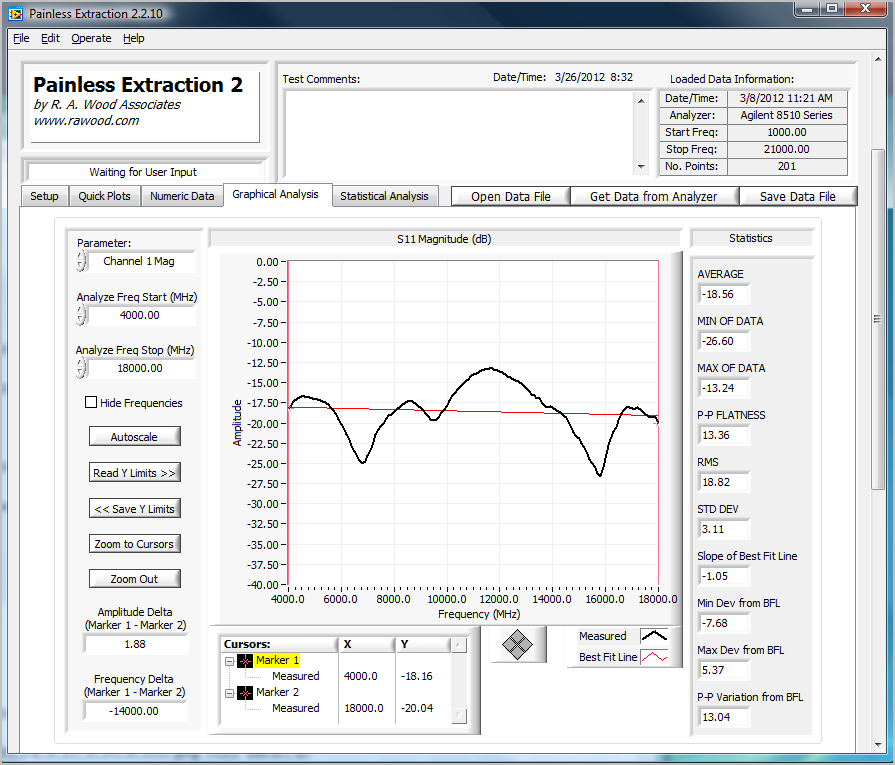

REQ-M05-F4.0-18.0-S9.5 M05 / M08 4.0 GHz 18.0 GHz 9.5 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-18.0-S12.0 M05 / M08 4.0 GHz 18.0 GHz 12.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-18.0-S12.5 M05 / M08 4.0 GHz 18.0 GHz 12.5 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-18.0-S13.0 M05 / M08 4.0 GHz 18.0 GHz 13.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-18.0-S14.0 M05 / M08 4.0 GHz 18.0 GHz 14.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

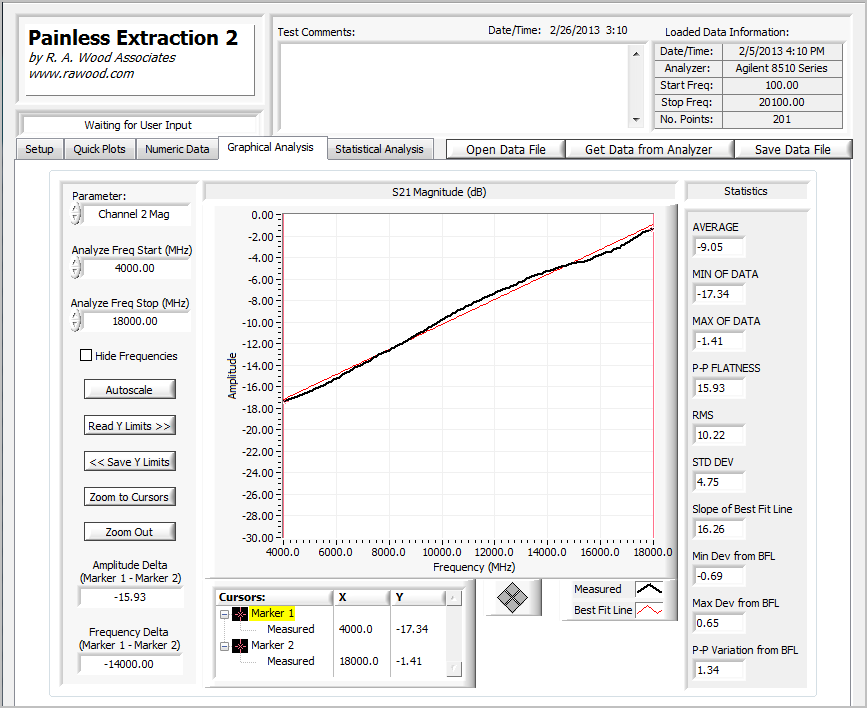

REQ-M05-F4.0-18.0-S16.0 M05 / M08 4.0 GHz 18.0 GHz 16.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11

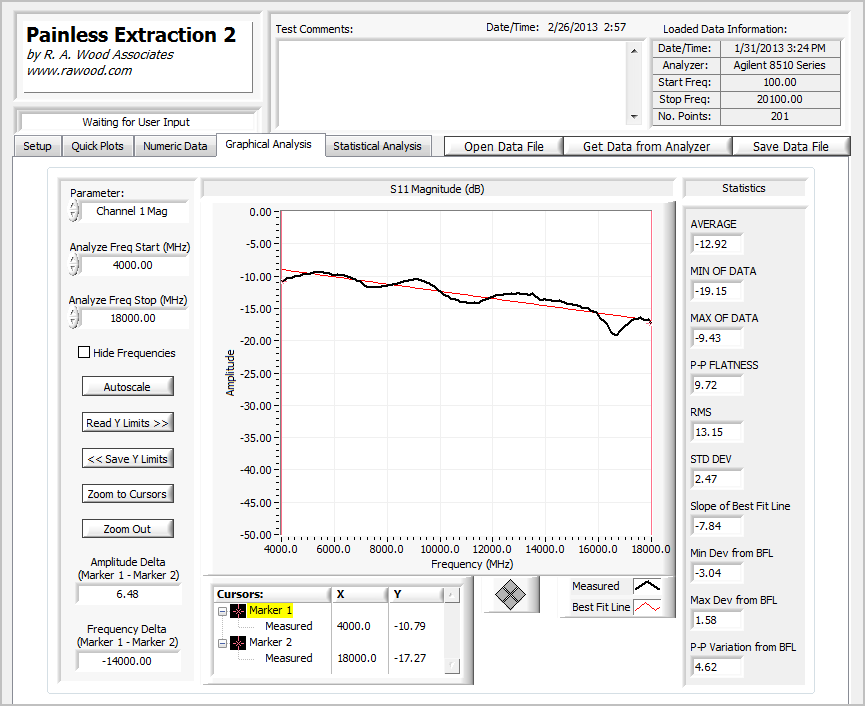

REQ-M05-F4.0-18.0-S18.0 M05 / M08 4.0 GHz 18.0 GHz 18.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-18.0-S19.0 M05 / M08 4.0 GHz 18.0 GHz 19.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-18.0-S20.0 M05 / M08 4.0 GHz 18.0 GHz 20.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F4.0-18.0-S21.0 M05 / M08 4.0 GHz 18.0 GHz 21.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

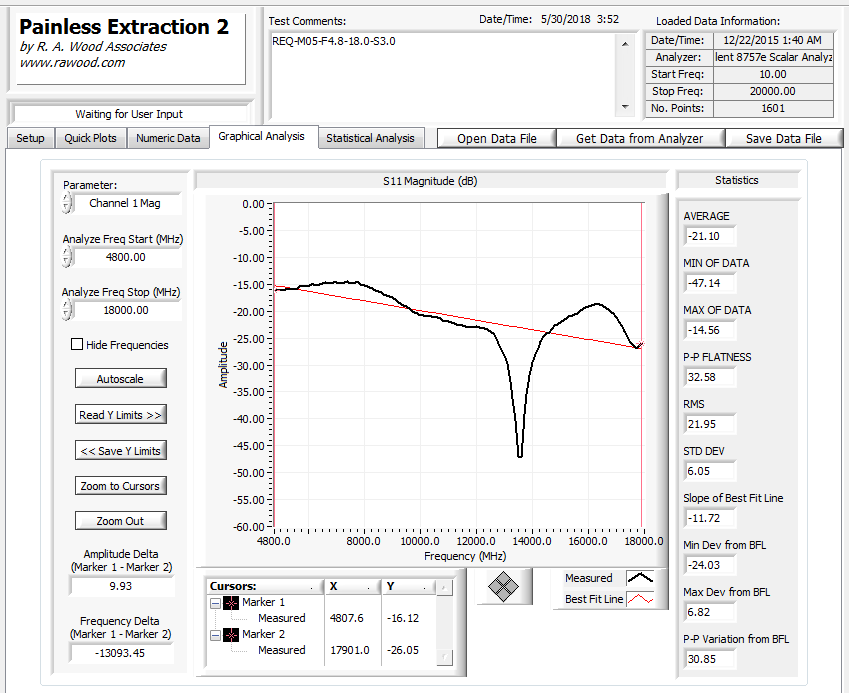

REQ-M05-F4.8-18.0-S3.0 M05 / M08 4.8 GHz 18.0 GHz 3.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

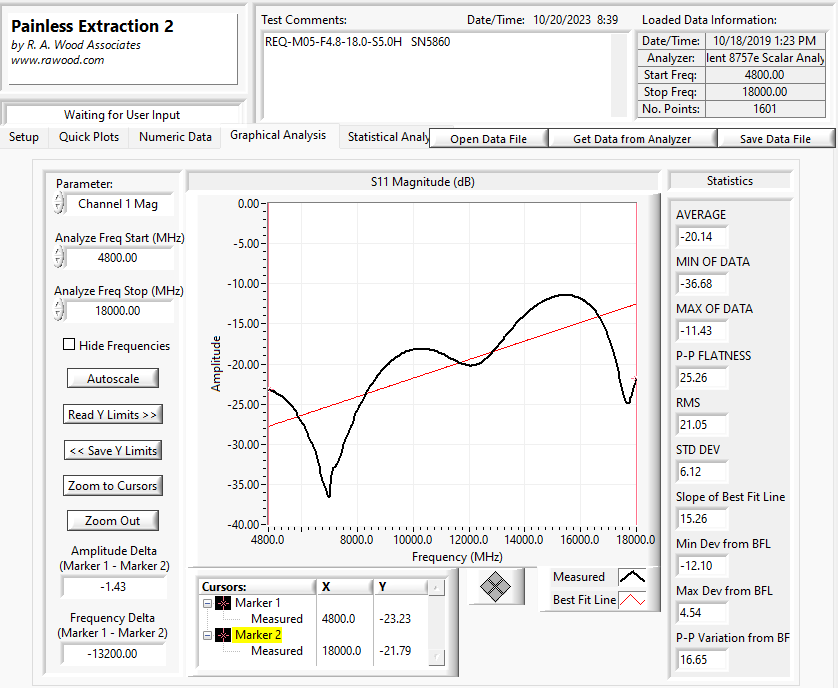

REQ-M05-F4.8-18.0-S5.0H M05 / M08 4.8 GHz 18.0 GHz 5.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11

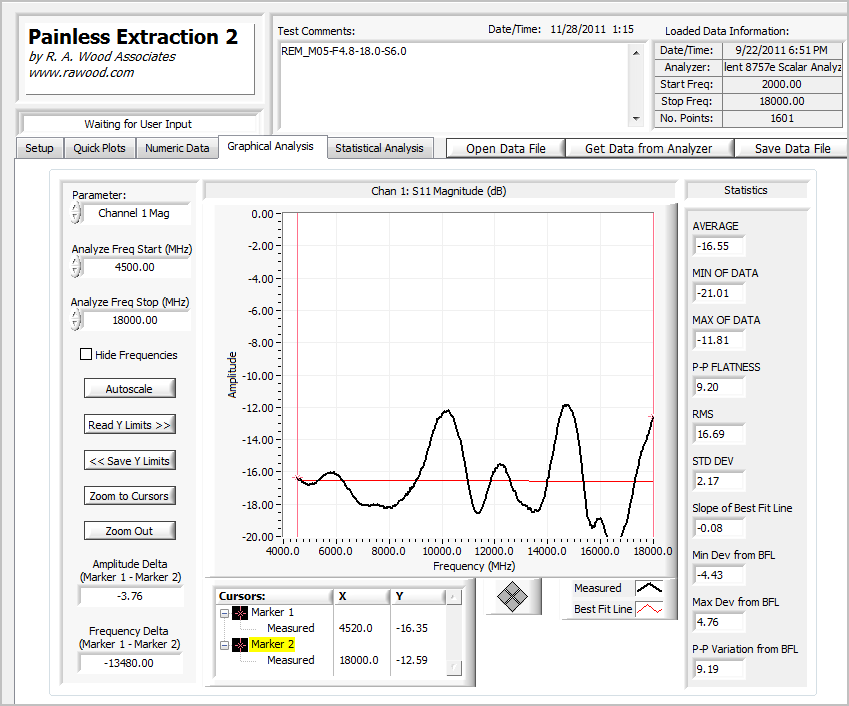

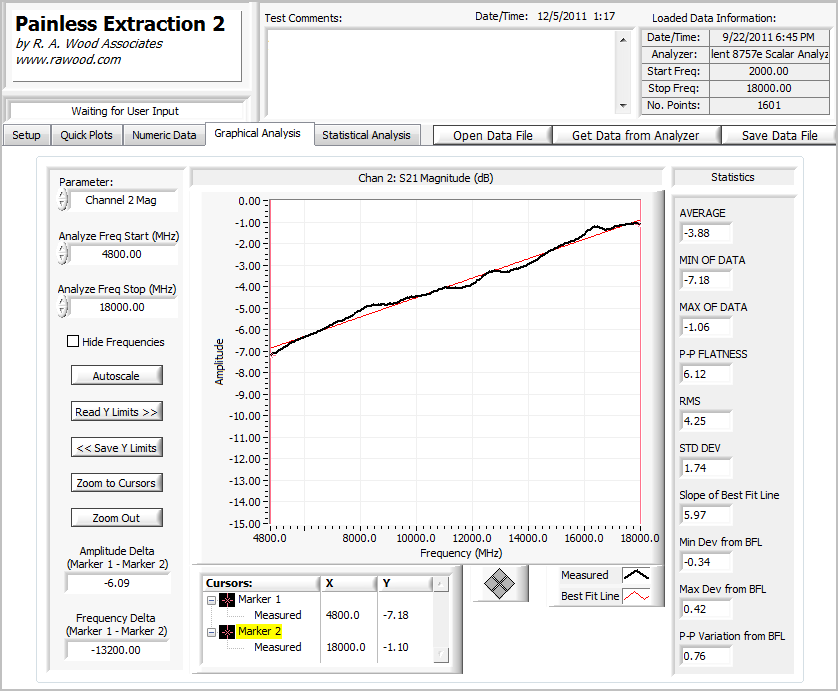

REQ-M05-F4.8-18.0-S6.0 M05 / M08 4.8 GHz 18.0 GHz 6.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F6.0-18.0-S6.0 M05 / M08 6.0 GHz 18.0 GHz 6.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11

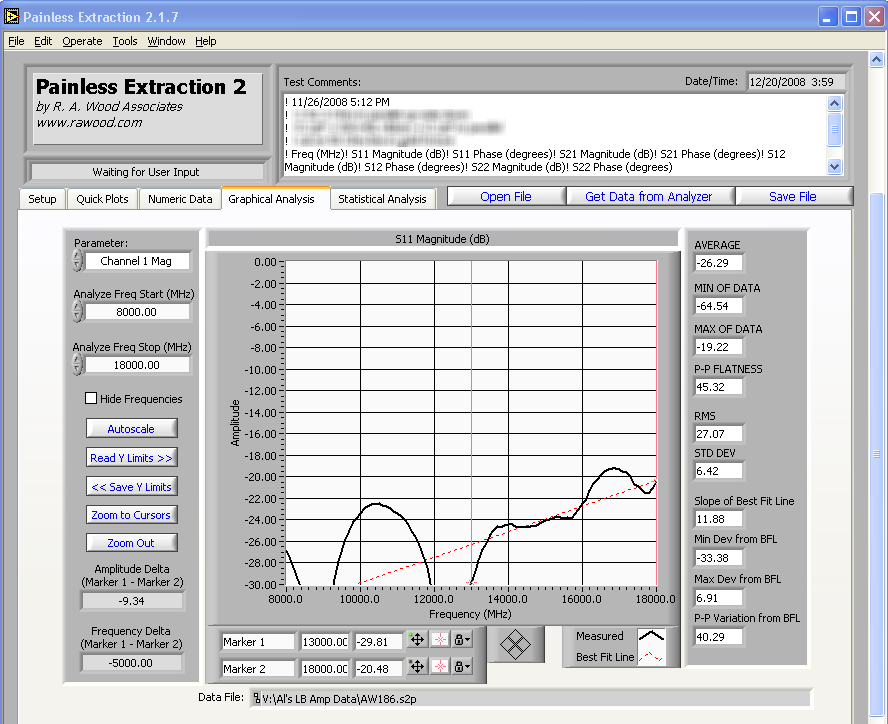

REQ-M05-F8.0-18.0-S2.0 M05 / M08 8.0 GHz 18.0 GHz 2.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F8.0-18.0-S3.0 M05 / M08 8.0 GHz 18.0 GHz 3.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F8.0-18.0-S4.0 M05 / M08 8.0 GHz 18.0 GHz 4.0 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F8.0-18.0-S5.0-F M05 / M08 8.0 GHz 18.0 GHz 5.0 dB (Full Band) 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F8.0-18.0-S5.0-H M05 / M08 8.0 GHz 18.0 GHz 5.0 dB (13-18 GHz) 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11

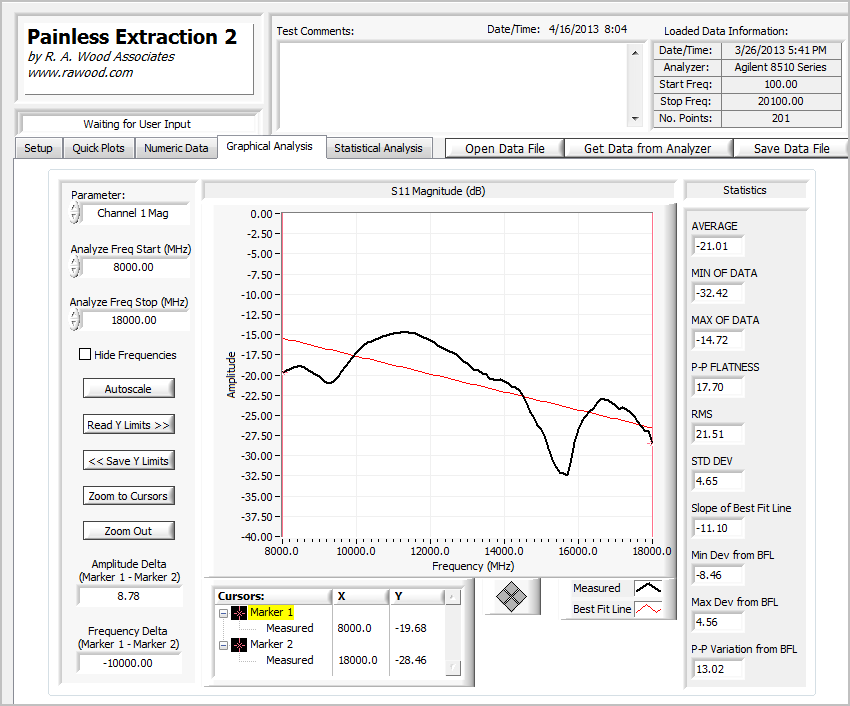

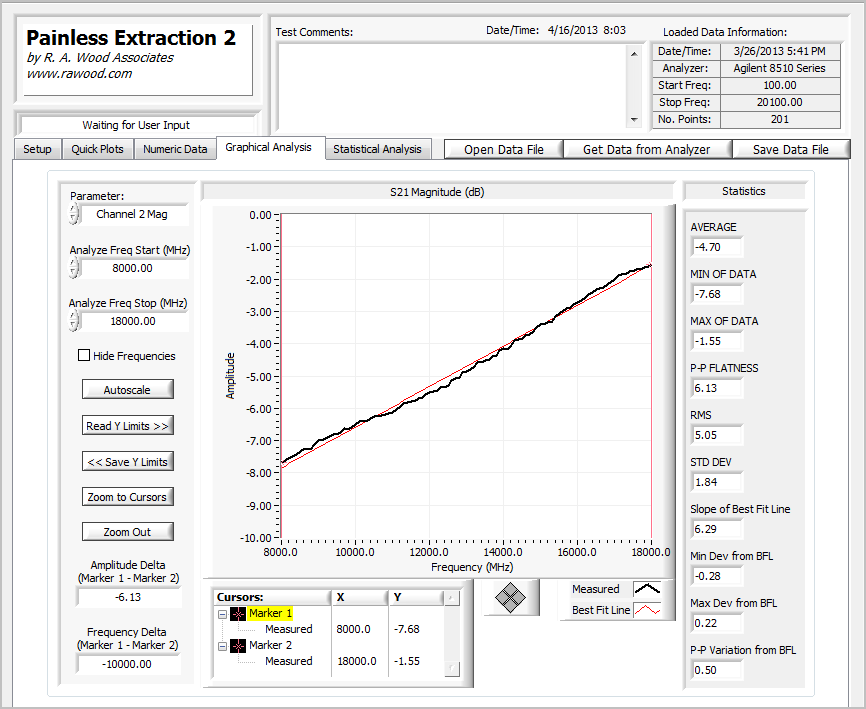

REQ-M05-F8.0-18.0-S6.0 M05 / M08 8.0 GHz 18.0 GHz 6.0 dB 2.0 dB Max S21 S11
Loss at High Freq
2.0 dB Max
Package Style
M05 / M08
Data
S21 / S11

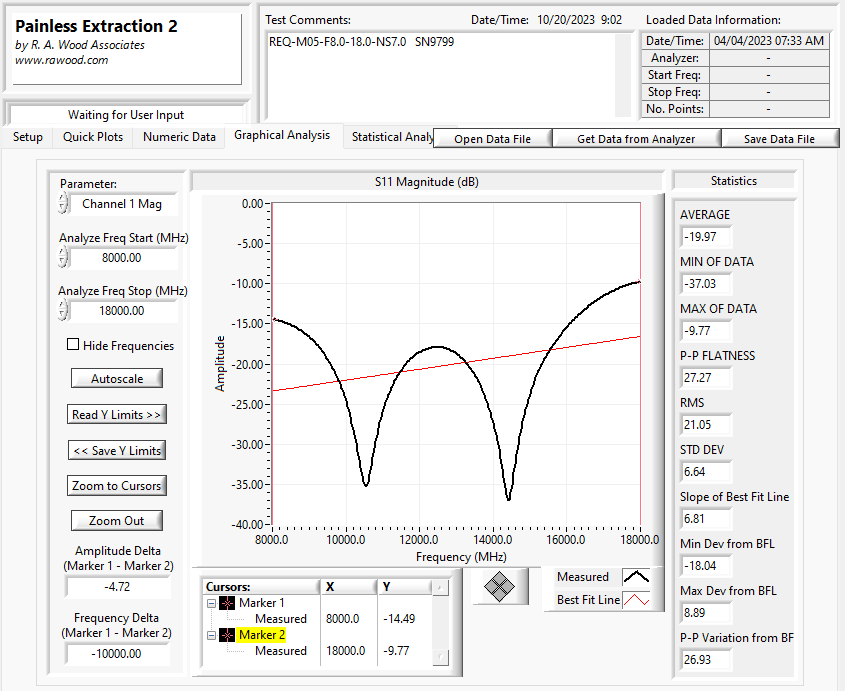

REQ-M05-F8.0-18.0-S-7.0 M05 / M08 8.0 GHz 18.0 GHz -7.0 dB 1.5 dB Max* Low Freq. S21 S11
Loss at High Freq
1.5 dB Max* Low Freq.
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F8.0-18.0-S9.0 M05 / M08 8.0 GHz 18.0 GHz 9.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F8.0-18.0-S10.0 M05 / M08 8.0 GHz 18.0 GHz 10.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11

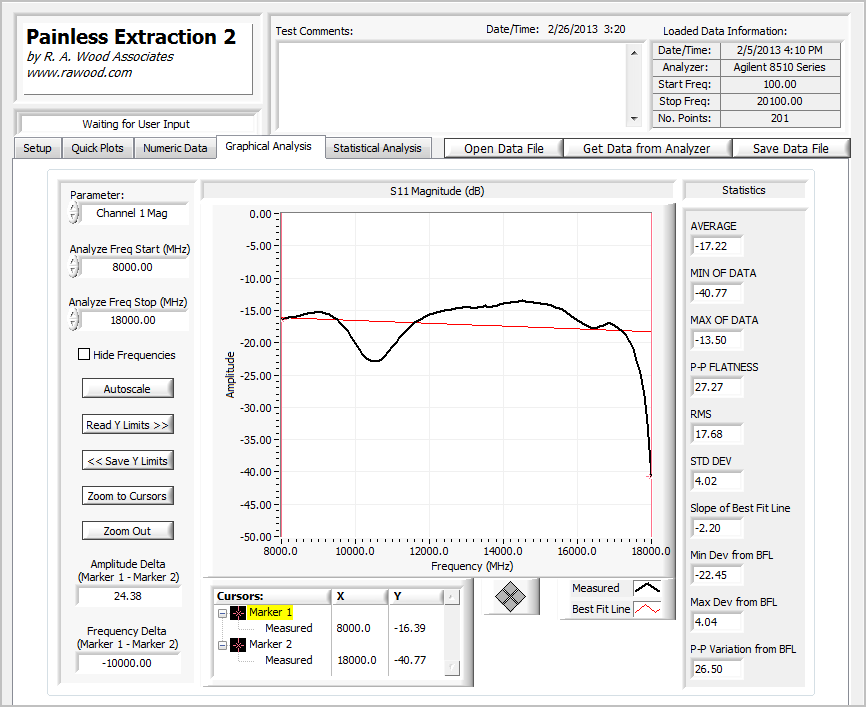

REQ-M05-F8.0-18.0-S11.0 M05 / M08 8.0 GHz 18.0 GHz 11.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F8.0-18.0-S12.0 M05 / M08 8.0 GHz 18.0 GHz 12.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F8.0-18.0-S13.0 M05 / M08 8.0 GHz 18.0 GHz 13.0 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F8.0-18.0-S13.5 M05 / M08 8.0 GHz 18.0 GHz 13.5 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11

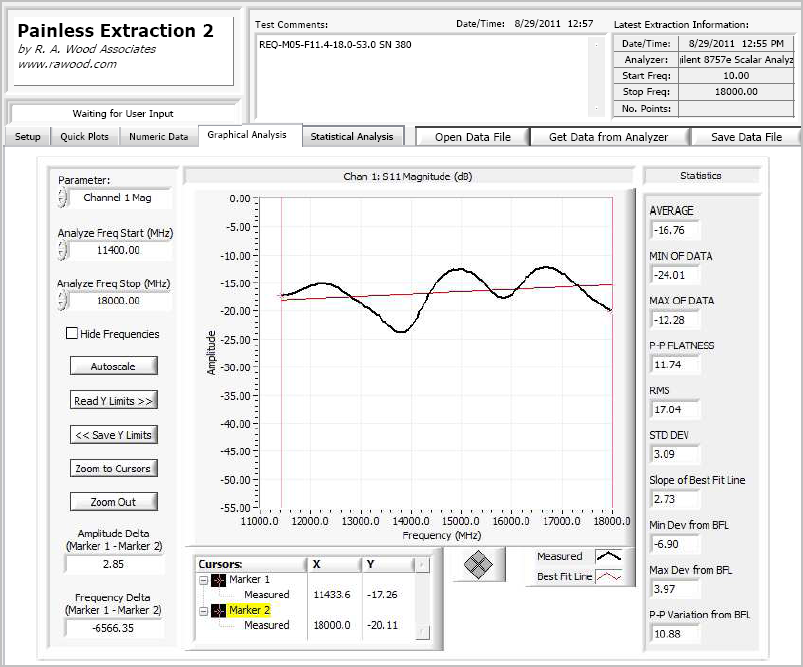

REQ-M05-F11.4-18.0-S3.0 M05 / M08 11.4 GHz 18.0 GHz 3.0 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F11.4-18.0-S3.5 M05 / M08 11.4 GHz 18.0 GHz 3.5 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F11.5-18.0-S5.0 M05 / M08 11.5 GHz 18.0 GHz 5.0 dB 1.3 dB Max S21 S11
Loss at High Freq
1.3 dB Max
Package Style
M05 / M08
Data
S21 / S11

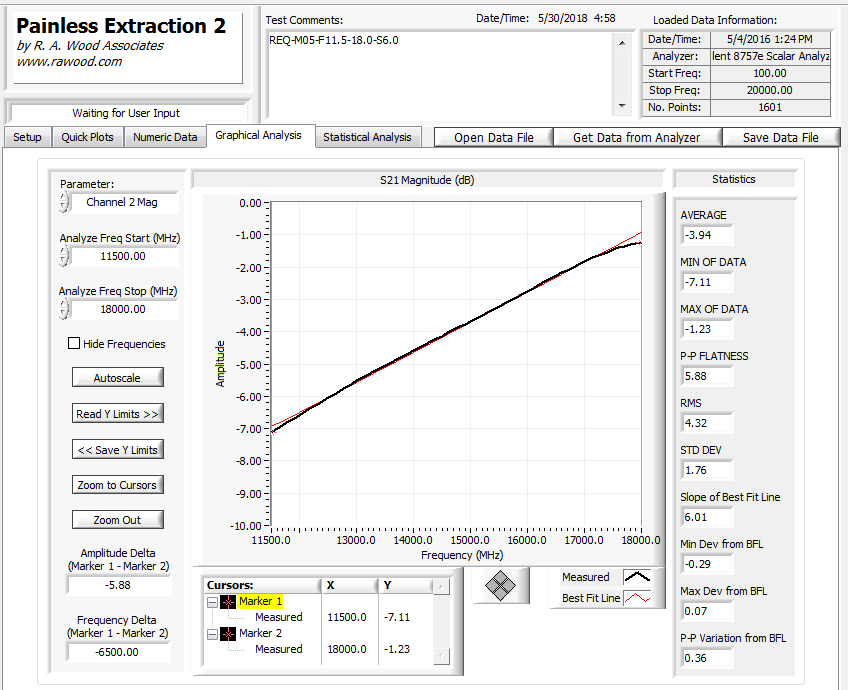

REQ-M05-F11.5-18.0-S6.0 M05 / M08 11.5 GHz 18.0 GHz 6.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

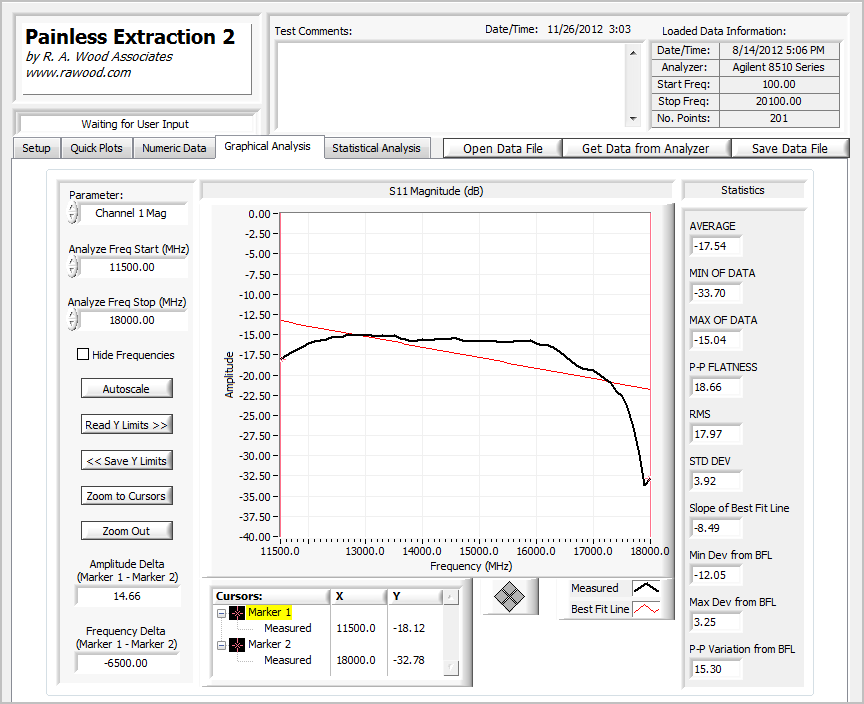

REQ-M05-F11.5-18.0-S7.0 M05 / M08 11.5 GHz 18.0 GHz 7.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F12.0-18.0-S1.5 M05 / M08 12.0 GHz 18.0 GHz 1.5 dB 1.4 dB Max S21 S11
Loss at High Freq
1.4 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F12.0-18.0-S3.0 M05 / M08 12.0 GHz 18.0 GHz 3.0 dB 1.6 dB Max S21 S11
Loss at High Freq
1.6 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F12.0-18.0-S3.5 M05 / M08 12.0 GHz 18.0 GHz 3.5 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

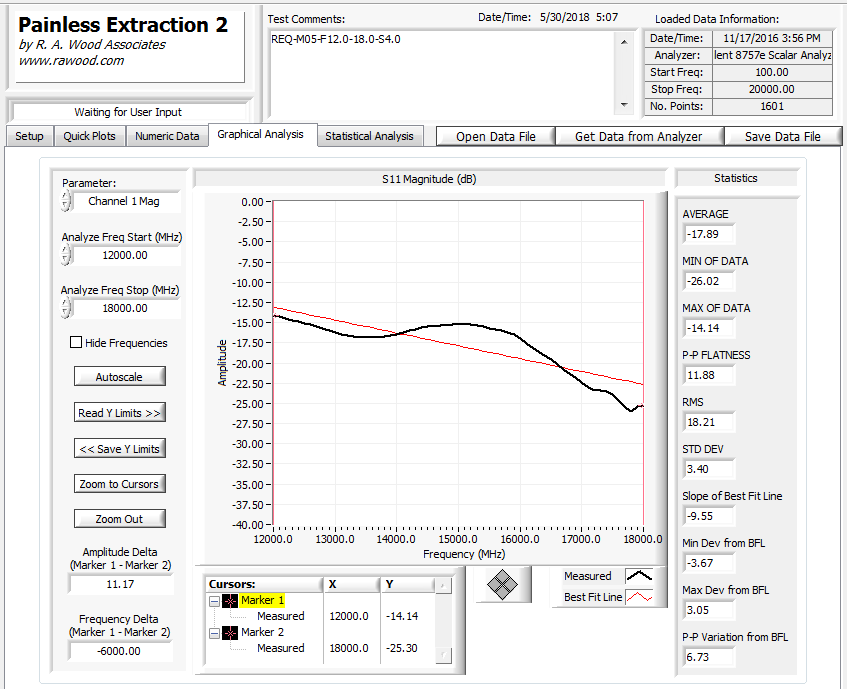

REQ-M05-F12.0-18.0-S4.0 M05 / M08 12.0 GHz 18.0 GHz 4.0 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F12.0-18.0-S4.5 M05 / M08 12.0 GHz 18.0 GHz 4.5 dB 1.5 dB Max S21 S11
Loss at High Freq
1.5 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F12.0-18.0-S5.0 M05 / M08 12.0 GHz 18.0 GHz 5.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F12.0-18.0-S6.0 M05 / M08 12.0 GHz 18.0 GHz 6.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11

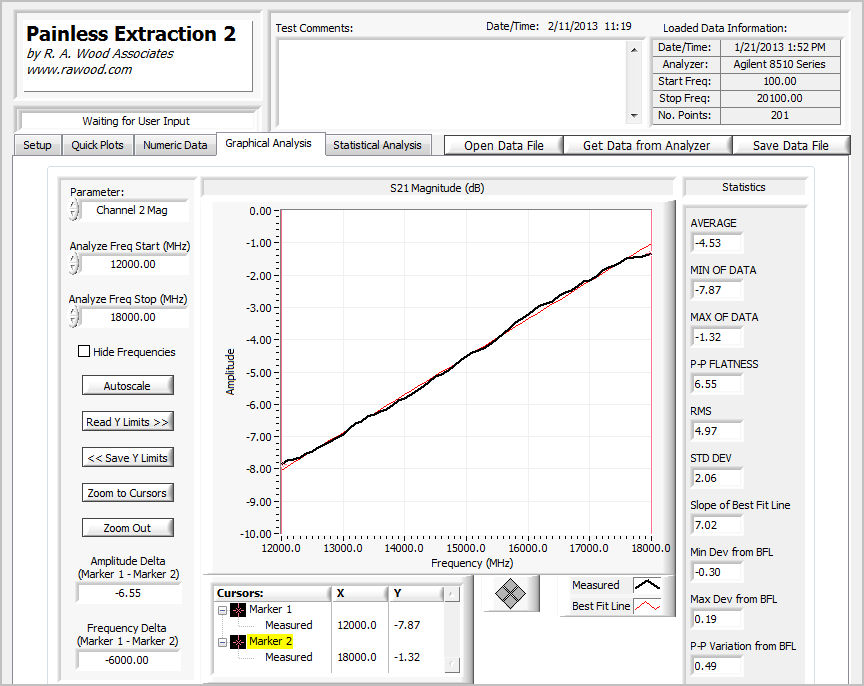

REQ-M05-F12.0-18.0-S6.5 M05 / M08 12.0 GHz 18.0 GHz 6.5 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11

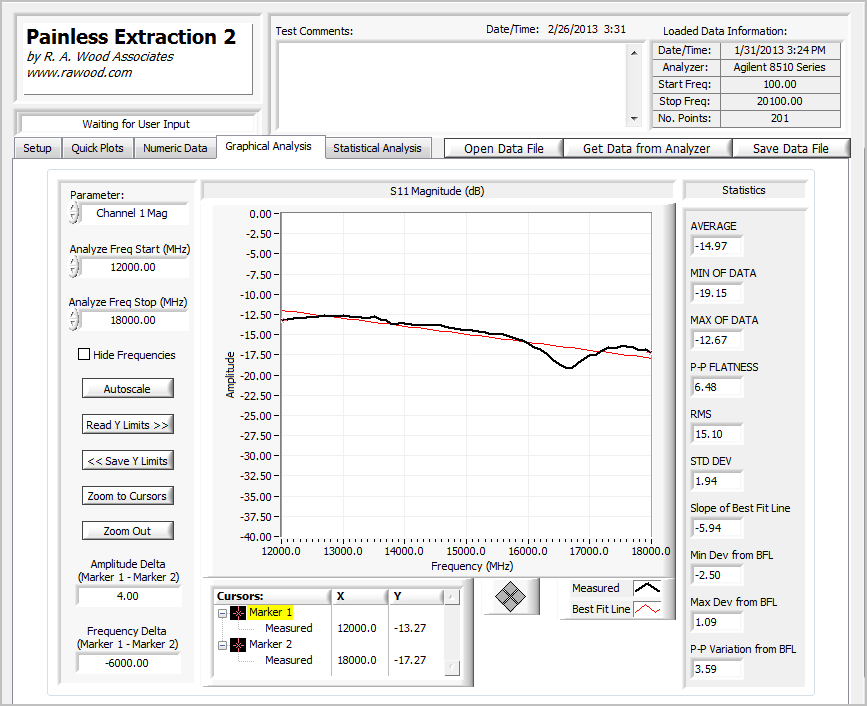

REQ-M05-F12.0-18.0-S7.0 M05 / M08 12.0 GHz 18.0 GHz 7.0 dB 1.8 dB Max S21 S11
Loss at High Freq
1.8 dB Max
Package Style
M05 / M08
Data
S21 / S11

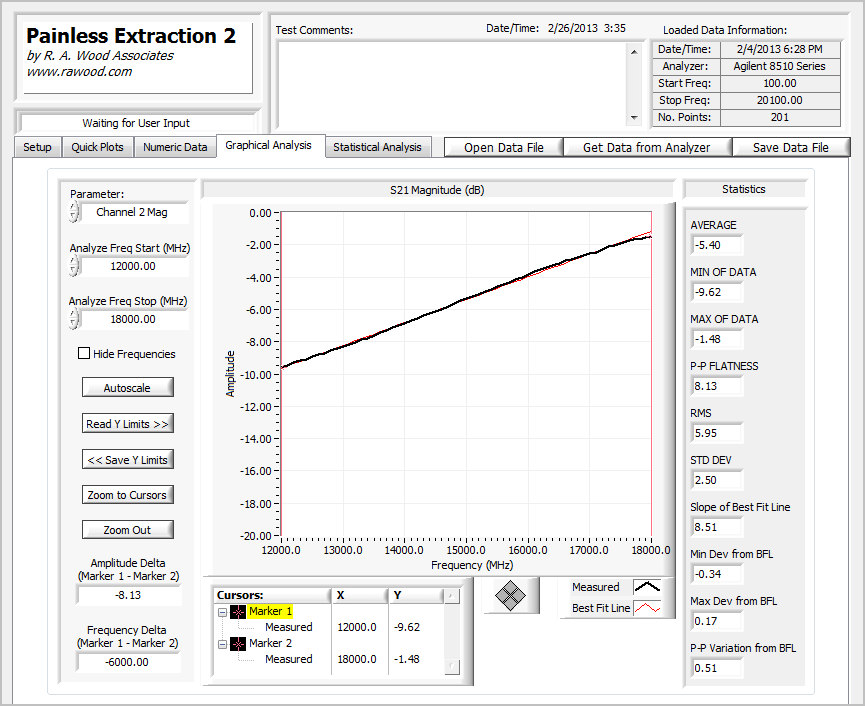

REQ-M05-F12.0-18.0-S8.0 M05 / M08 12.0 GHz 18.0 GHz 8.0 dB 1.9 dB Max S21 S11
Loss at High Freq
1.9 dB Max
Package Style
M05 / M08
Data
S21 / S11

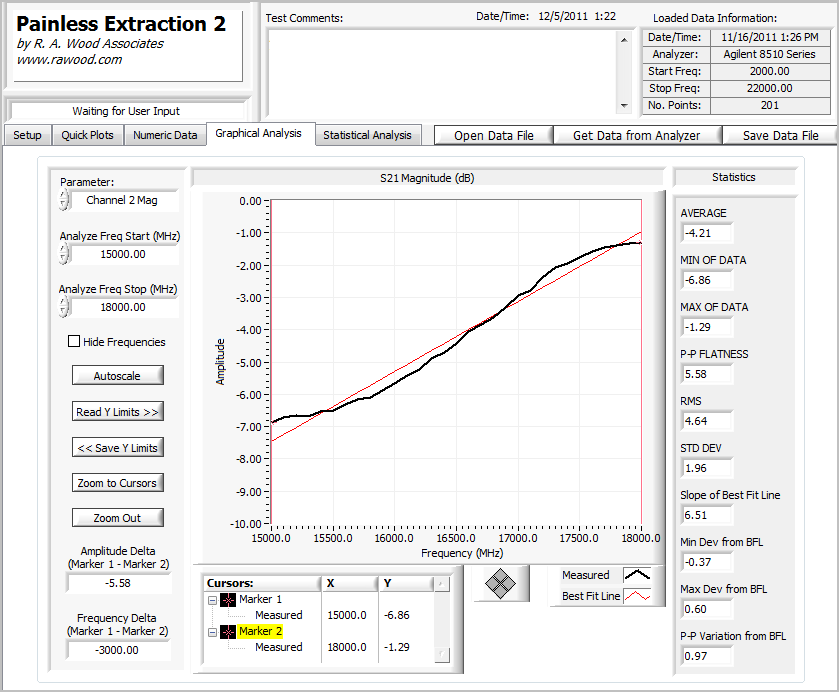

REQ-M05-F15.0-18.0-S6.0 M05 / M08 15.0 GHz 18.0 GHz 6.0 dB 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
REQ-M05-F2.0-20.0-S6.5H M05 / M08 2.0 GHz 20.0 GHz 6.5 dB (15-20 GHz) 1.7 dB Max S21 S11
Loss at High Freq
1.7 dB Max
Package Style
M05 / M08
Data
S21 / S11
Datasheets & Drawings

  • Our standard package for all equalizers
  • Great for fast turn-around times
  • Allows for direct connection to RF components such as amplifiers and couplers

  • Optional package for all equalizers
  • Requires longer lead times

  • Optional package for equalizers up to 12 GHz
  • Requires longer lead times

  • Optional package for equalizers up to 18 GHz
  • Requires longer lead times

The equalizers normally ship with SMA male (J1) and SMA female (J2) connectors. If you want SMA male connectors on each end, add -MM to the part number. If you want SMA female connectors on each end, add -FF to the part number. Other helpful descriptors to include in the Equalizer part number are custom slopes and high linerarity, identified as "B" or "H," and "HL" in the parts catalog, respectively. You can find an example detailing the higher linearity Equalizer in the additional information section below.

R. A. Wood Associates reserves the right to make minor modifications to limits if needed to allow for producibility and manufacturing yields. In general, electrical performance improves as design improvements are learned and incoporated. If you would like to be notifed of limit changes, please contact us, and we will keep you informed.

Examples

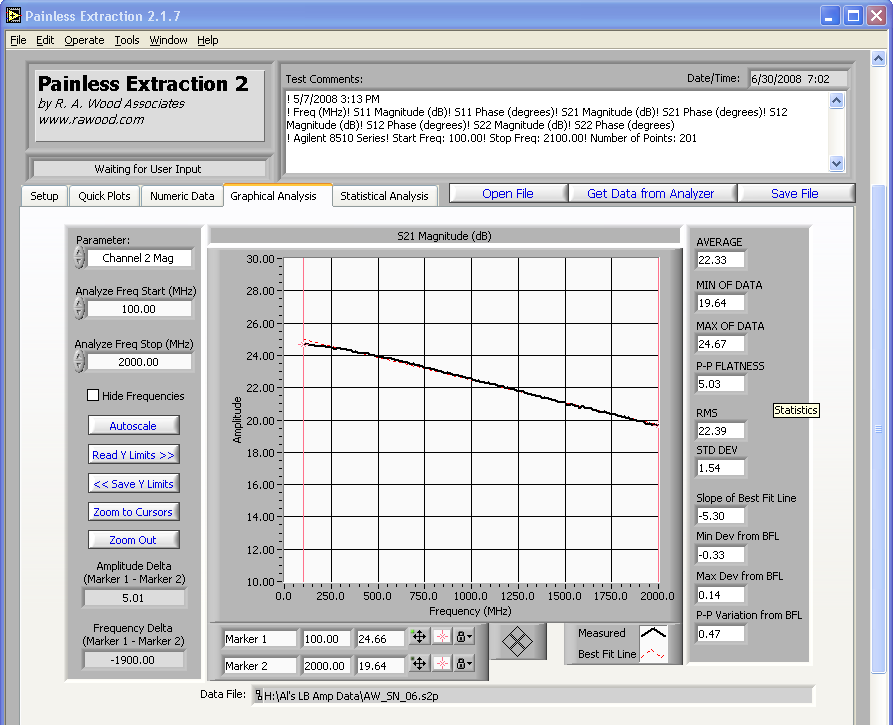

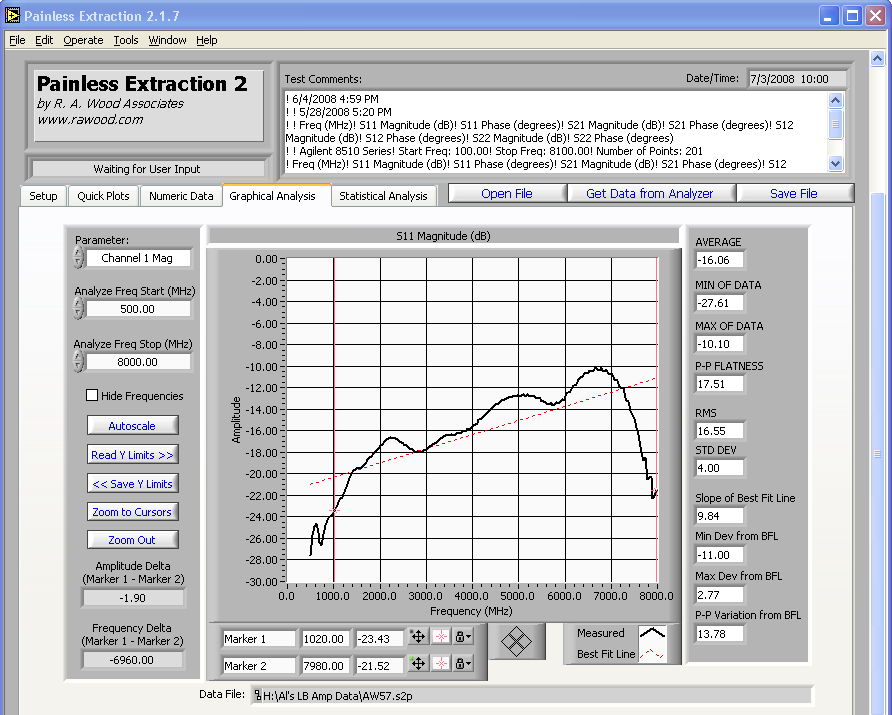

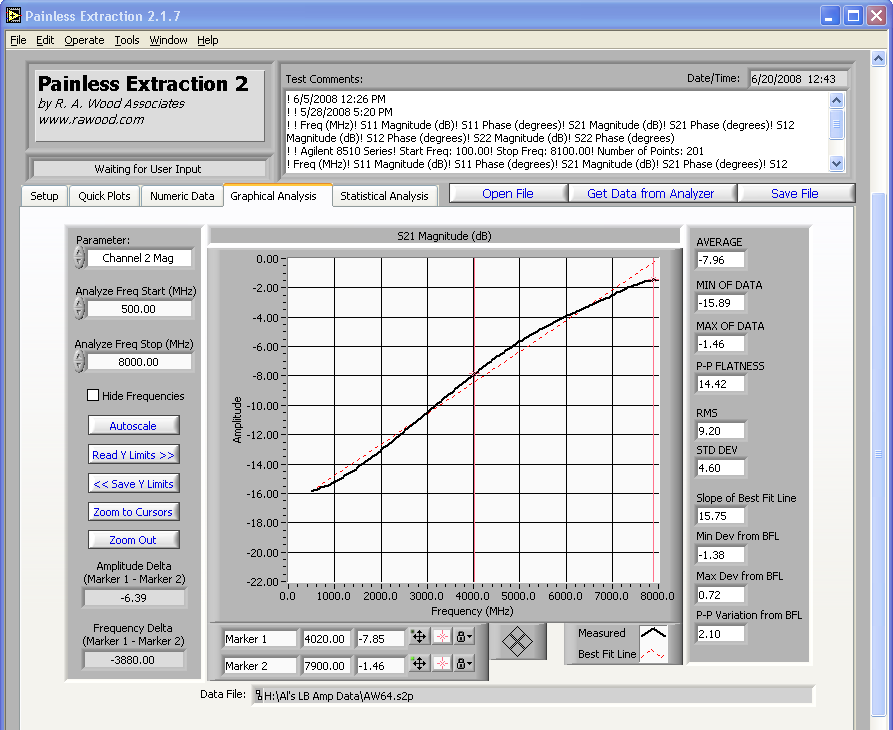

An example of using an equalizer to "flatten out" an amplfier negative gain slope

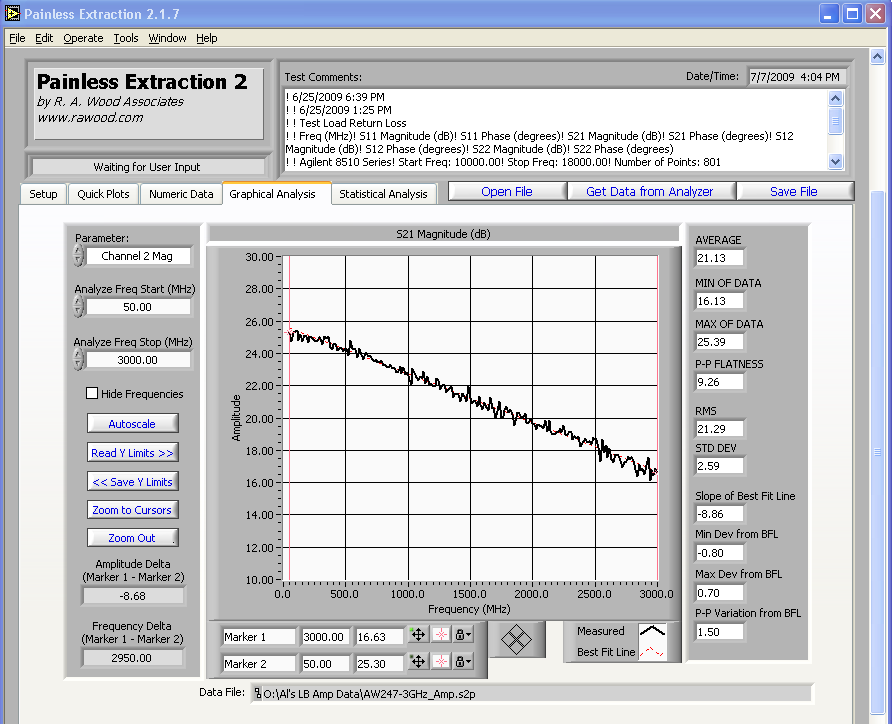

Another example of using an equalizer to "flatten out" our Extreme Bandwidth RF Amplfier negative gain slope from 5 kHz to 3 GHz
An example of the repeatability of the equalizer designs can be observed in the two separate units below. They are pretty close!
There are some tradeoffs that can be made between linearity and insertion loss at the high end. If you need better linearity from the best fit line, you may have a little higher insertion loss at the high frequency.
