NI Week Computer Automated Test Setup
demonstrating RFSpecTest Software

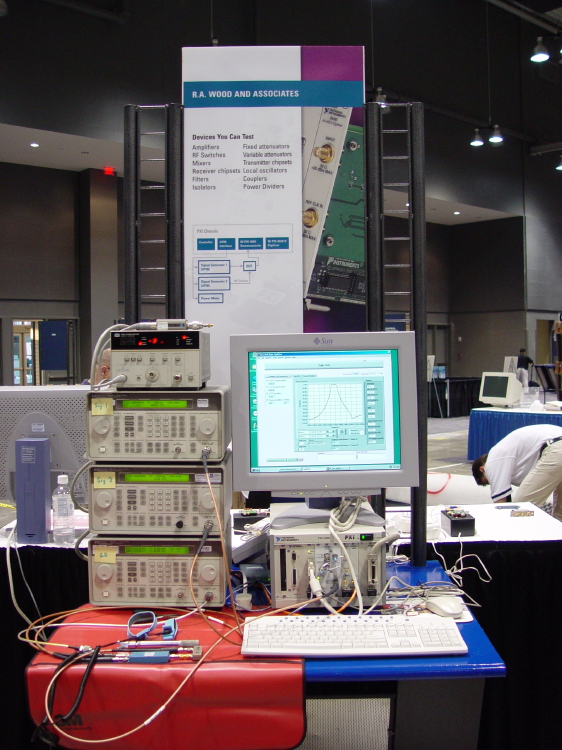

Above is our booth at NI Week, where we demonstrated computer automated testing of RF components using the NI 5660 and three RF signal generators, using our RFSpecTest software. The current device being tested is a band pass filter. The RF power meter was used to calibrate the whole setup, including instruments and cable losses, to power meter accuracy.
